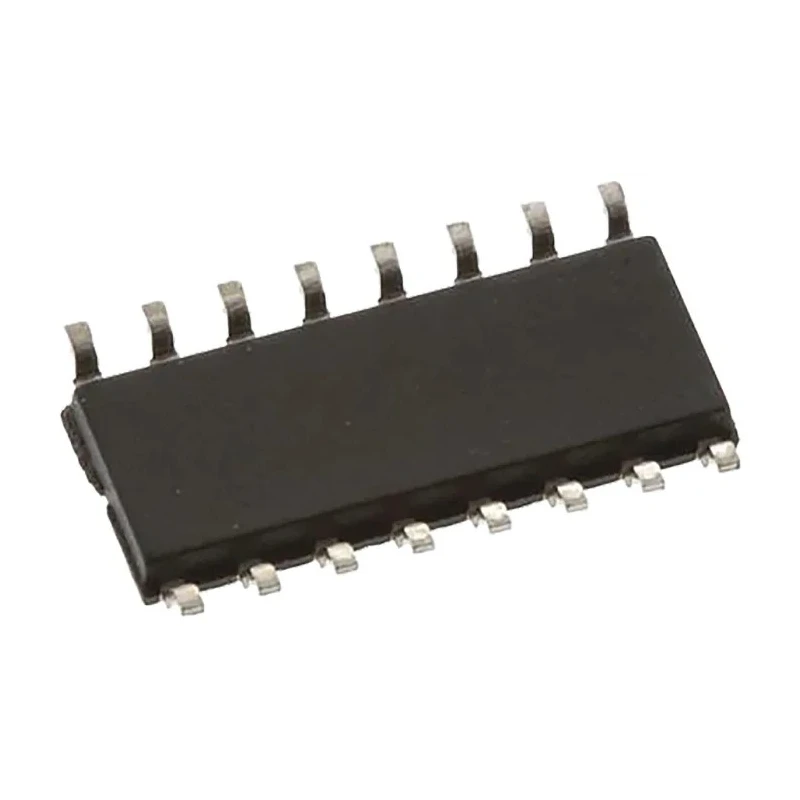

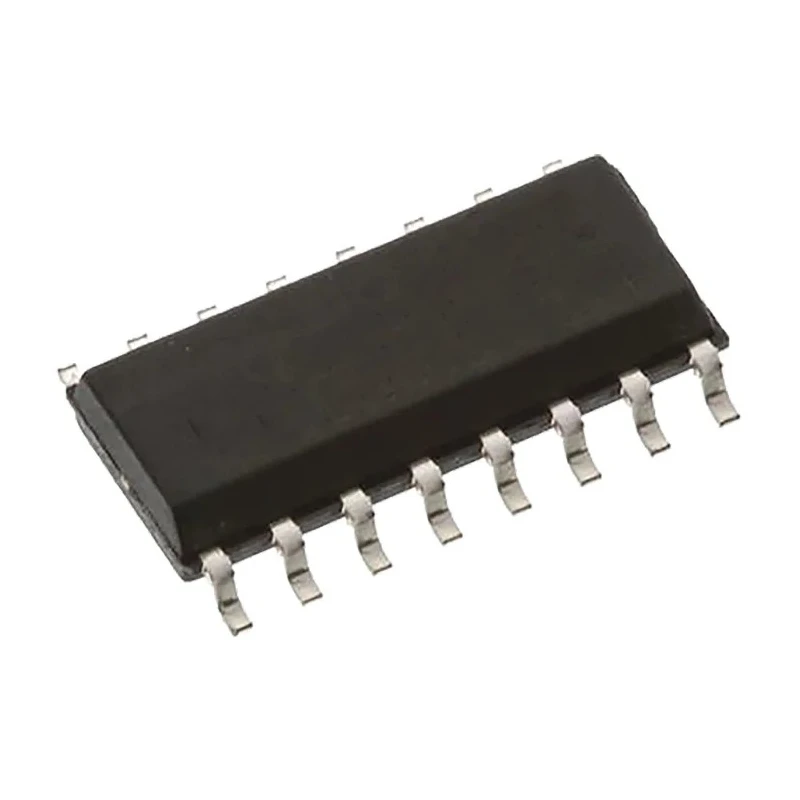

Infineon Capacitive Touch Sensor 300 mm 1.71 V to 5.5 V, 16 Pin SOIC Package CY8CMBR3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.47mm |
| Length | 9.98mm |
| Model | CY8CMBR3 |
| Width | 3.98mm |
| Mount Type | Surface |
| Output type | Open Drain |
| Series | CY8CMBR3 |
| Sensing Distance | 300mm |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Frequency | 400MHz |
| Maximum Output Current | 85mA |
| Maximum Output Voltage | 600mV |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.71V |
Key Features
- Designed for capacitive touch screen control and sensing.
- Operates at a wide voltage range from 1.71 V to 5.5 V.
- Features a sensing distance of 300 mm for effective touch detection.
- Provides a maximum switching frequency of 400 MHz for rapid response.
- Maximum output current rated at 85 mA and an output voltage of 600 mV.
- Utilizes an open drain output type for interfacing.
- Surface mount package ensures easy PCB installation.
- Compact dimensions with 16 pins in SOIC form factor.
Product Description
Infineon CY8CMBR3 capacitive touch sensor is an advanced programmable system-on-chip (PSoC) device designed for high-performance capacitive touch sensing applications. It operates with an analog subsystem integrated with capacitive sensing hardware, making it ideal for touch screen controller solutions requiring accurate and fast touch detection.
This sensor operates on a supply voltage ranging from 1.71 V minimum to 5.5 V maximum, delivering a consistent performance over a broad temperature range of -40°C to 85°C. The device comes in a 16-pin SOIC surface mount package, measuring 9.98 mm length, 3.98 mm width, and 1.47 mm height, allowing compact and space-saving PCB designs.
Its maximum switching frequency is rated at 400 MHz, and it provides an output current of up to 85 mA with a voltage output of 600 mV. The output is configured as an open drain type, facilitating flexible interfacing options in various electronic systems.
The capacitive sensing distance of 300 mm enables detection over a substantial operating range, essential for proximity and touch screen applications in industrial, laboratory, and consumer electronics domains.
This product is new and made by Infineon, part of the CY8CMBR3 series, designed for surface mount applications where reliable touch sensor technology is required. Designed for capacitive touch screen control and sensing.
Operates at a wide voltage range from 1.71 V to 5.5 V. Features a sensing distance of 300 mm for effective touch detection. Provides a maximum switching frequency of 400 MHz for rapid response. Maximum output current rated at 85 mA and an output voltage of 600 mV.
Utilizes an open drain output type for interfacing. Surface mount package ensures easy PCB installation. Compact dimensions with 16 pins in SOIC form factor. Wide operating temperature range from -40°C to 85°C for robust performance.
Suitable for applications in electronics manufacturing, industrial touch panels, and embedded system designs requiring capacitive sensing capabilities. Explore other Sensor and semiconductor products in the Infineon range available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage range from 1.71 V to 5.5 V.
The capacitive sensing distance of this unit is 300 mm, allowing for effective touch detection.
It features a maximum switching frequency of 400 MHz, enabling rapid response times.
The maximum output current for this model is rated at 85 mA.
It utilizes an open drain output type for interfacing with other electronic systems.
This model has dimensions of 9.98 mm in length, 3.98 mm in width, and 1.47 mm in height.
It operates within a temperature range of -40°C to 85°C, suitable for various environments.
This unit is available in a 16-pin SOIC surface mount package, facilitating easy PCB installation.
It is designed for capacitive touch screen control and sensing applications in industrial, laboratory, and consumer electronics.
The maximum output voltage is rated at 600 mV.
This model features a total of 16 pins.
The open drain output type allows for flexible interfacing options in various electronic systems, enhancing compatibility.
