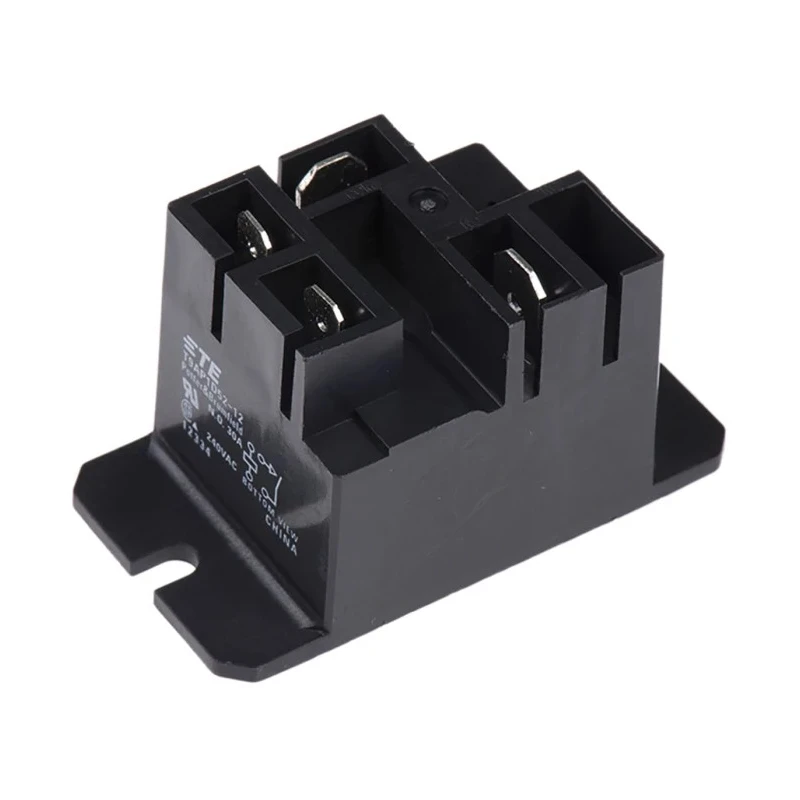

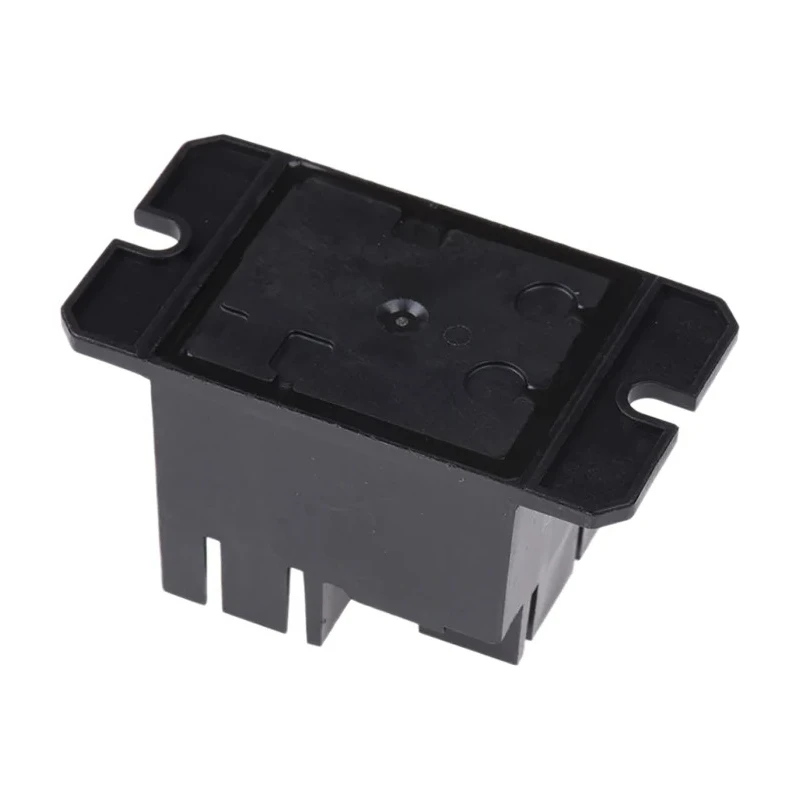

TE Connectivity Flange Power Relay 12V DC Coil 30A SPST T9AP1D52-12 6-1419102-0
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 27.9mm |
| Length | 50.3mm |
| Model | T9AP1D52-12 6-1419102-0 |
| Width | 27.4mm |
| Mount Type | Flange |
| Contact Material | Silver Alloy |
| Series | T9A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 30A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| Coil Resistance | 144Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 600V ac |
| Coil Power | 1.7W |
Key Features
- Delivers robust 30A switching current, suitable for heavy electrical loads.
- Operates on a dependable 12V DC coil, ensuring reliable relay actuation.
- SPST contact configuration simplifies control in automation and power distribution systems.
- Mounts securely via flange for easy installation in panels or equipment.
- Quick connect terminals support fast, error-free wiring.
- Wide operating temperature from -55°C to 85°C accommodates challenging environments.
- Constructed with a durable silver alloy contact for long service life.

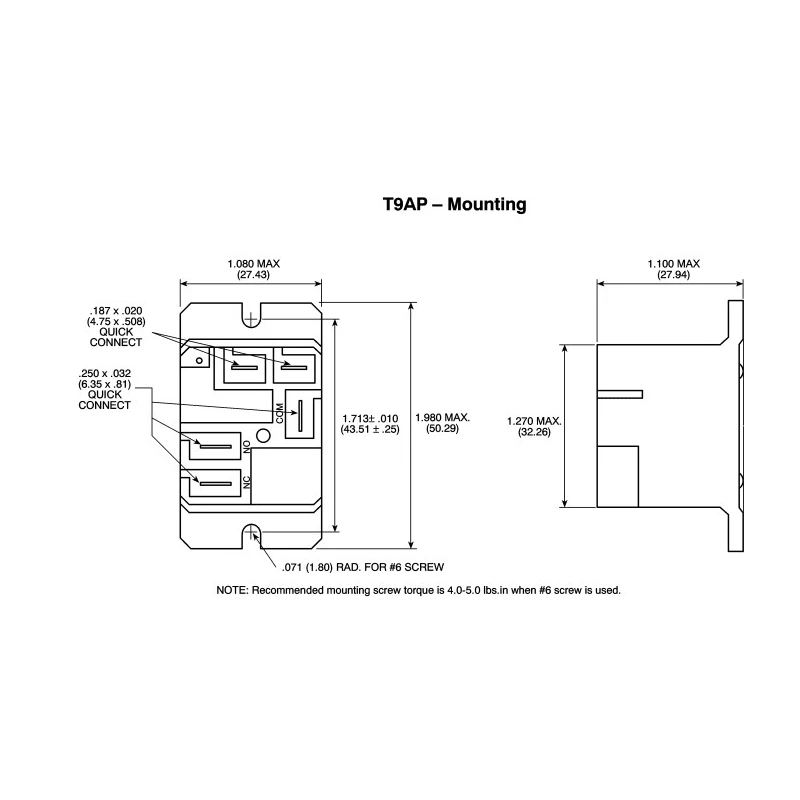

- Compact size (50.3mm x 27.4mm x 27.9mm) allows efficient use of panel space.
Product Description
TE Connectivity T9AP1D52-12 6-1419102-0 Flange Power Relay features an industrial-grade design, delivering impressive electrical switching up to 30A using a 12V DC coil. This power relay is engineered for reliable performance in demanding control circuits, automation systems, and power distribution panels.
Delivers robust 30A switching current, suitable for heavy electrical loads. Operates on a dependable 12V DC coil, ensuring reliable relay actuation. SPST contact configuration simplifies control in automation and power distribution systems.
Mounts securely via flange for easy installation in panels or equipment. Quick connect terminals support fast, error-free wiring. Wide operating temperature from -55°C to 85°C accommodates challenging environments. Constructed with a durable silver alloy contact for long service life.
Compact size (50.3mm x 27.4mm x 27.9mm) allows efficient use of panel space.
This relay series is ideal for use in industrial automation, power control panels, HVAC equipment, lighting control, and other electrical distribution tasks where high current switching is required. Its immersion washable type and RoHS-compliant construction add versatility to applications demanding both reliability and environmental compliance.
Applications include industrial machinery, process automation, power distribution boards, and commercial building management systems. The relay's robust specifications, such as 144Ω coil resistance, 1.7W coil power, and quick-connect terminals, ensure efficient performance and straightforward integration in diverse environments.
Explore more advanced Power Relays and industrial automation components from TE Connectivity on EnvMart for professional-grade electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a robust switching current capacity of 30A, making it suitable for heavy electrical loads.
It operates on a 12V DC coil, ensuring reliable relay actuation in various applications.
The contact configuration is SPST (Single Pole Single Throw), which simplifies control in automation and power distribution systems.
The dimensions of the relay are 50.3mm in length, 27.4mm in width, and 27.9mm in height.
It has a wide operating temperature range from -55°C to 85°C, accommodating challenging environments.
This relay mounts securely via flange, allowing for easy installation in panels or equipment.
It features quick connect terminals, which support fast and error-free wiring during installation.
The contacts are constructed from durable silver alloy, contributing to a long service life.
The coil resistance is 144Ω, ensuring efficient performance in control circuits.
This relay is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
It is ideal for use in industrial automation, power control panels, HVAC equipment, and lighting control systems.
The coil power is rated at 1.7W, which is essential for its operation in control circuits.
