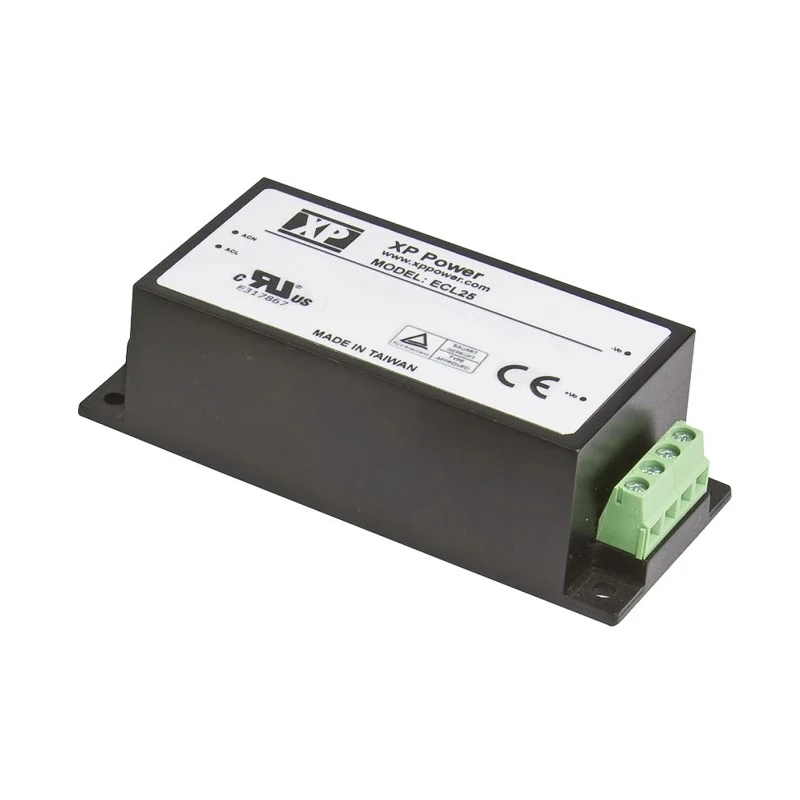

XP Power Switching Power Supply 12V 25W Chassis Mount ECL25US12-S

Free Delivery in India | Lowest Global Shipping Charges

XP Power Switching Power Supply 12V 25W Chassis Mount ECL25US12-S

Name: XP Power Switching Power Supply 12V 25W Chassis Mount ECL25US12-S
Brand: XP Power
SKU: 91019



Category Switching Power Supply Brand XP Power Condition New

Specifications

Country of Origin	China
Brand	XP Power
Power	25W
Efficiency	80%
Length	96mm
Model	ECL25US12-S
Depth	28.5mm
Gross Weight	170g
Width	40mm
Mount Type	Chassis
Series	ECL
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V
Maximum Output Voltage	12V
SMPS Output Current	2.1A
Minimum Input Voltage	85V ac

Key Features

Delivers 12V DC output at up to 2.1A current for reliable power supply.
Chassis mount design for easy and secure installation in various systems.
Wide 85V to 264V AC input voltage range suitable for global deployment.
Operates efficiently with up to 80% energy conversion rate.
Compact form factor with dimensions of 96mm x 40mm x 28.5mm, ideal for space-constrained setups.
Lightweight design at approximately 170g enhances suitability for embedded applications.
Certified to multiple safety and EMC standards including EN 60950-1 and UL 60950-1 for assured compliance.
Efficient performance across -20°C to 70°C operating temperature range ensures system reliability.

Product Description

XP Power presents the ECL25US12-S Switching Power Supply, a high-performance AC-DC supply designed to deliver stable 12V output at 25W for industrial and electronic devices. Ideally suited for use in control panels, automation equipment, and embedded systems, this chassis mount unit features a single output with maximum current of 2.1A, making it versatile for various demanding applications.

With a broad input voltage range of 85V to 264V AC, the ECL25US12-S is engineered for global compatibility and enhanced installation flexibility. The unit offers energy efficiency up to 80%, which helps reduce heat and contributes to system energy savings. Its robust design ensures reliable operation across a wide ambient temperature spectrum from -20°C up to 70°C.

Measuring only 96mm in length, 40mm in width, and 28.5mm in depth, and weighing just 170g, this power supply is easy to integrate in environments where space and weight are critical considerations. The ECL25US12-S adheres to stringent international safety, EMC, and environmental standards, including EN 60950-1, UL 60950-1, EN 61000-series, making it an excellent choice for OEMs and system integrators targeting both domestic and export markets.

12V DC, 25W maximum output for a wide range of loads. Single output design delivering up to 2.1A for reliable device power. Accepts 85V - 264V AC input, supporting global mains standards. Ultra-compact, lightweight chassis mount format suitable for embedded and space-constrained applications.

Efficient energy conversion reduces heat and power consumption. Reliable operation throughout -20°C to 70°C temperature range for harsh environments. Multiple certifications (EN/UL 60950-1, EN 55022, EN/IEC 61000 series).

Ideal for industrial automation, instrumentation, control panels, and critical electronic equipment.

The ECL25US12-S forms part of XP Power's renowned ECL series, recognized for quality and robust engineering in 5W - 30W applications. Adopt this Switching Power Supply for enhanced reliability in your industrial, laboratory, and commercial systems. For more industrial power supply options and the complete XP Power range, browse related categories on EnvMart.
