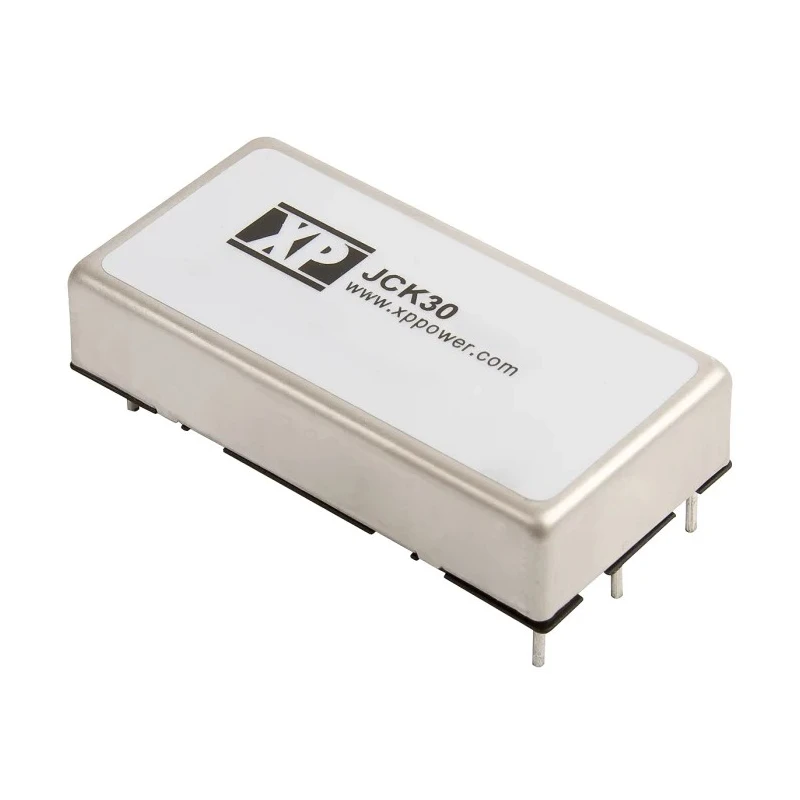

XP Power DC/DC Converter 30W, Through Hole, Dual Output ±15V, 1A, Input Range 9 - 18V, Isolation 1.6kV, JCK3012D15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCK DC/DC Converter, 15V, -15 V/ 1 A, 18V |
| Brand | XP Power |
| Efficiency | 91% |
| Length | 50.8mm |
| Model | JCK3012D15 |
| Depth | 10.16mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCK |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 430000h |
| Number of outputs | 2 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 15, -15V |
| Output Current 1 | 1A |
| Output Voltage Adjustment Range | 9/18 V |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- High reliability DC-DC converter with compact DIP package.
- Provides dual output voltages of +15V and -15V for versatile applications.
- Operates with a 9 - 18V DC input range, suitable for varied power sources.
- Delivers up to 1A output current with maximum output power of 30W.
- Through-hole mount design ensures secure PCB integration.
- Isolation voltage rated at 1.6kV DC enhances safety in circuit separation.
- High efficiency up to 91% minimizes heat and power loss.
- Wide operating temperature range from -40°C to 100°C allows use in harsh environments.
Product Description
XP Power presents the JCK3012D15, an industry-standard 30W isolated DC-DC converter engineered for demanding applications. This device delivers ±15V dual outputs at 1A, providing versatility for circuits requiring both positive and negative voltage rails. Designed with a compact DIP-style through-hole package, the converter offers ease of integration onto PCB assemblies.
The JCK3012D15 is equipped with a wide input voltage range of 9 - 18V DC, making it compatible with various power supply sources. Its isolation rating of 1.6kV DC ensures robust separation between input and output, essential for protecting sensitive equipment and maintaining system integrity. Efficiency reaches up to 91%, which reduces operational heat and lowers energy consumption, contributing to reliable, long-term performance.
Supports dual ±15V outputs for operational flexibility in mixed signal circuits. Output current of 1A and maximum output power of 30W cater to mid-power industrial and instrumentation needs. 6-pin DIP package and through-hole mounting facilitate durable installation.
MTBF of 430000 hours underscores its reliability and minimized downtime in mission-critical contexts. Remote on/off functionality enables integration into automated and managed systems. Wide operating temperature window (-40°C to 100°C) is suited for both laboratory and field deployment.
Board mountable for compact system designs such as communication interfaces, industrial controls, and measurement apparatus.
With the JCK-series, XP Power ensures consistent performance across a range of environments, making this converter ideal for measurements, medical (non-patient contact), industrial control, communications, and test setups. The dual output enables convenient power distribution in analog/digital systems, with isolation safeguarding critical operations.
Discover more DC-DC Converters and power solutions on EnvMart. Explore XP Power’s range for precision circuit design and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with an input voltage range of 9 to 18V DC.
This model provides dual output voltages of +15V and -15V, with a maximum output current of 1A.
The maximum output power is 30W.
The isolation voltage is rated at 1.6kV DC, which enhances safety in circuit separation.
It has an efficiency rating of up to 91%, which minimizes heat and power loss.
The operating temperature range is from -40°C to 100°C, suitable for harsh environments.
This converter features a through-hole mount design for secure PCB integration.
The dimensions are 50.8mm in length, 25.4mm in width, and 10.16mm in depth.
It uses a DIP (Dual In-line Package) type package for easy installation.
The MTBF is rated at 430,000 hours, indicating its reliability in operation.
Yes, it includes remote on/off functionality for integration into automated systems.
It is suitable for applications in measurements, industrial control, communications, and test setups.
