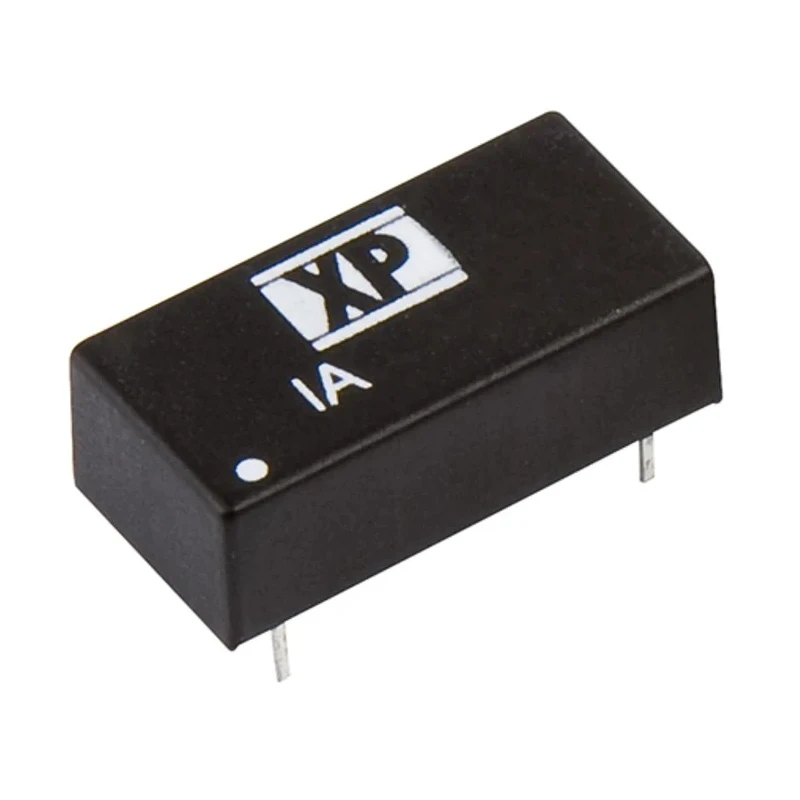

XP Power Isolated DC-DC Converter 5V/-5V 100mA, 24V DC Input, 1W Through Hole DIP IA2405D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IA DC/DC Converter, 5V, -5 V/ 100 mA, 24V |
| Brand | XP Power |
| Efficiency | 74% |
| Length | 20.32mm |
| Model | IA2405D |
| Depth | 6.35mm |
| Width | 10.16mm |
| Mount Type | Through Hole |
| Series | IA |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 24V dc |
| Minimum Input Voltage | 0V |
| Number of Pins | 4 |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 100mA |
| Output Voltage Adjustment Range | 0/5 V |
| Isolation Voltage | 1kV dc |
Key Features
- Provides isolated dual output voltages of 5V and -5V.
- Delivers up to 100mA total output current with 1W power rating.
- Accepts a wide input voltage range from 0V to 24V DC.
- Through hole mounting for secure PCB integration and robust operation.
- High isolation voltage of 1kV DC ensures reliable performance in critical applications.
- Compact DIP package measures 20.32mm x 10.16mm x 6.35mm for space-saving PCB design.
- Minimum and maximum operating temperatures range from -40°C to +85°C, suitable for harsh environments.
Product Description
XP Power presents the IA2405D Isolated DC-DC Converter, designed for efficient low-power conversion where compact size, galvanic isolation and dual output voltage rails are required. Engineered for demanding industrial and electronic applications, this model offers a dual output of +5V and -5V DC, with a maximum combined output current of 100mA and rated output power of 1W. Its input voltage range spans from 0V to 24V DC, supporting contemporary control, measurement, and signal applications requiring multiple voltage supplies from a single source.
The IA2405D features a high isolation voltage of 1000V DC between input and output, increasing safety in mixed-potential or ungrounded circuits. The compact DIP package (20.32mm length, 10.16mm width, 6.35mm depth) and four through-hole pins facilitate straightforward PCB mounting and minimize board footprint. The robust device achieves an efficiency of 74%, maintaining performance across a broad ambient temperature range from -40°C to +85°C. Long-term reliability is affirmed by an impressive MTBF of 1,100,000 hours.
Provides dual regulated outputs (+5V and -5V) for versatile circuit needs. Isolated 1kV DC barrier increases equipment and personnel safety. Highly compact DIP configuration for space-limited designs. Suits applications including industrial control, instrumentation, and communications where isolated dual supply rails are needed.
Through hole mount installation ensures robust mechanical stability for both production and development PCBs. Wide input operating range and rugged temperature tolerance enhance suitability for demanding environments. Series: IA - supports other voltages and configurations for standardization in system designs.
This DC-DC converter is ideal for use in industrial automation equipment, telecommunications, embedded systems, measurement, and control instrumentation. Typical uses include isolated sensor excitation, small motor drivers, dual-rail op-amp supplies, and portable or remote signal conditioning.
The XP Power IA2405D is designed for straightforward integration and reliable performance in professional industrial and electronics applications, providing stable, isolated power conversion in a space-saving form factor.
Explore more DC-DC Converters & industrial power supply solutions on EnvMart for all your electronic and engineering requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 1W.
It provides dual output voltages of +5V and -5V.
The input voltage range for this model spans from 0V to 24V DC.
The efficiency rating of this converter is 74%.
It features a high isolation voltage of 1kV DC between input and output.
The DIP package measures 20.32mm in length, 10.16mm in width, and 6.35mm in depth.
The operating temperature range is from -40°C to +85°C.
This model has two outputs.
It uses through-hole mounting for secure PCB integration.
The mean time between failures (MTBF) for this model is 1,100,000 hours.
It is suitable for applications including industrial control, instrumentation, and telecommunications where isolated dual supply rails are needed.
This model has four pins.
