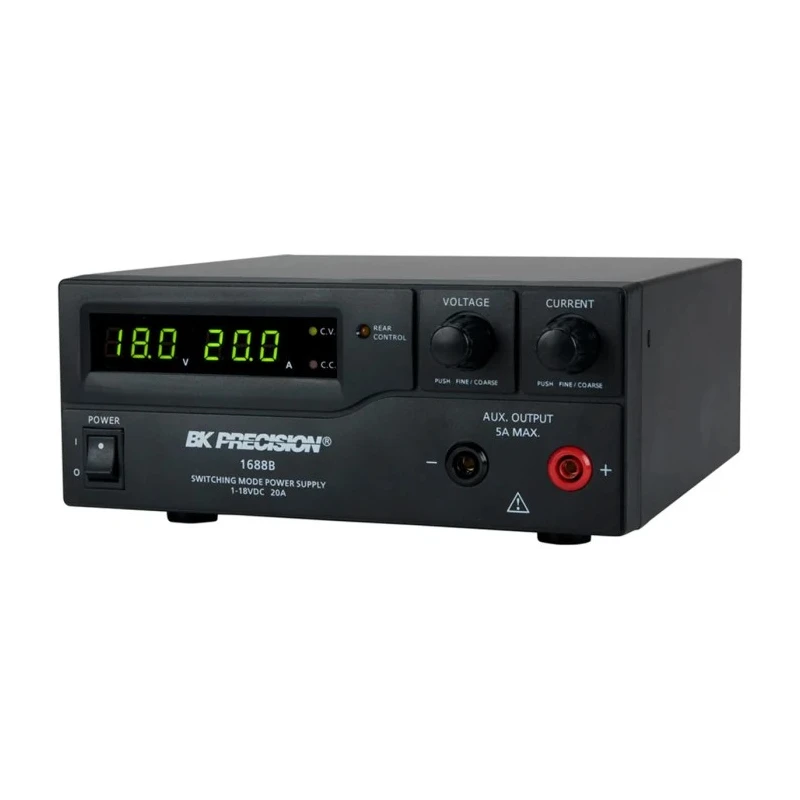

BK Precision Digital Bench Power Supply 1-Output, 18 V, 360 W, 20 A Max BK1688B
Specifications
| Country of Origin | China |
|---|---|
| Brand | BK Precision |
| Power | 360W |
| Model | BK1688B |
| Output type | Digital |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Plug Type | IEC 320 |
| Interfaces | USB Interface with PC software for remote control and external timed programming |
| Number of outputs | 1 |
| Maximum Output Current | 20A |
| Maximum Output Voltage | 18V |
| Maximum Supply Voltage | 240V ac |
| Minimum Supply Voltage | 100V ac |
| Digital/Analogue | Digital |
| Supported Number of Displays | 2 |
Key Features
- Features a single digital output ranging from 18 V to 18 V, with a maximum power of 360 W and up to 20 A current.
- Supports automatic CV/CC crossover operation for versatile usage.
- Offers three user-defined voltage and current presets for quick configuration.
- Lightweight and compact design combines a rotary encoder control for fine adjustments.
- Includes USB interface with PC software for timed programming and remote control via analog connectors.
- Integrated overvoltage, overtemperature, and overload protection ensures safe operation.
- Ideal for production testing, telecommunications, research and development, electronic field services, and university laboratories.
Product Description
BK Precision BK1688B Digital Bench Power Supply provides accurate and reliable DC output for demanding bench and laboratory settings. Designed for high output voltage or high current applications, it delivers a maximum output of 18 V and 20 A, with 360 W power.
Operating in both constant voltage (CV) and constant current (CC) modes, the unit features automatic CV/CC crossover and supports multiple configurations for rapid recall. The rotary encoder enables precise voltage and current control, while three user-defined presets simplify setup and repeatable testing.

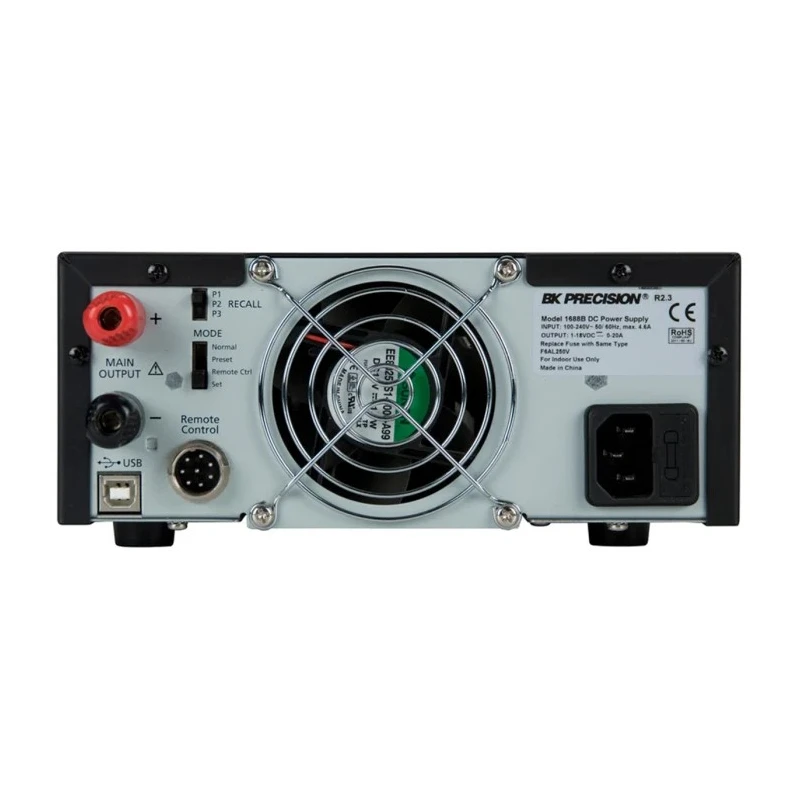

This power supply integrates a USB interface, allowing seamless remote control and timed programming via PC software. For advanced automation, an analog remote terminal is accessible from the rear panel.
Single-output digital bench power supply, suitable for electronics development and testing environments. Maximum output: 18 V, 20 A, 360 W, supporting high-current and moderate-voltage requirements. USB connectivity and software enable remote operations and automated test cycles.
Overvoltage, overtemperature, and overload protections promote safe and robust operation. Compact form factor saves bench space and makes the unit portable for field service. Supplied accessories include power cord, instruction manual, software CD, USB cable, and remote connector for complete installation.
Applications span industrial production testing, telecommunications engineering, R&D test labs, electronics field servicing, and academic laboratories. Browse more BK Precision power supplies and Bench Power Supply equipment on EnvMart for additional models and configurations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 18 V.
This unit can provide a maximum output current of 20 A.
It has a total power capacity of 360 W.
It includes a USB interface with PC software for remote control and timed programming.
The operating temperature range is from 0°C to 40°C.
This power supply features a single output.
It uses an IEC 320 plug type.
It includes overvoltage, overtemperature, and overload protection for safe operation.
It features a rotary encoder control for fine adjustments of voltage and current.
It is ideal for production testing, telecommunications, research and development, and academic laboratories.
The minimum supply voltage is 100 V AC, and the maximum is 240 V AC.
Included accessories are a power cord, instruction manual, software CD, USB cable, and a remote connector.
