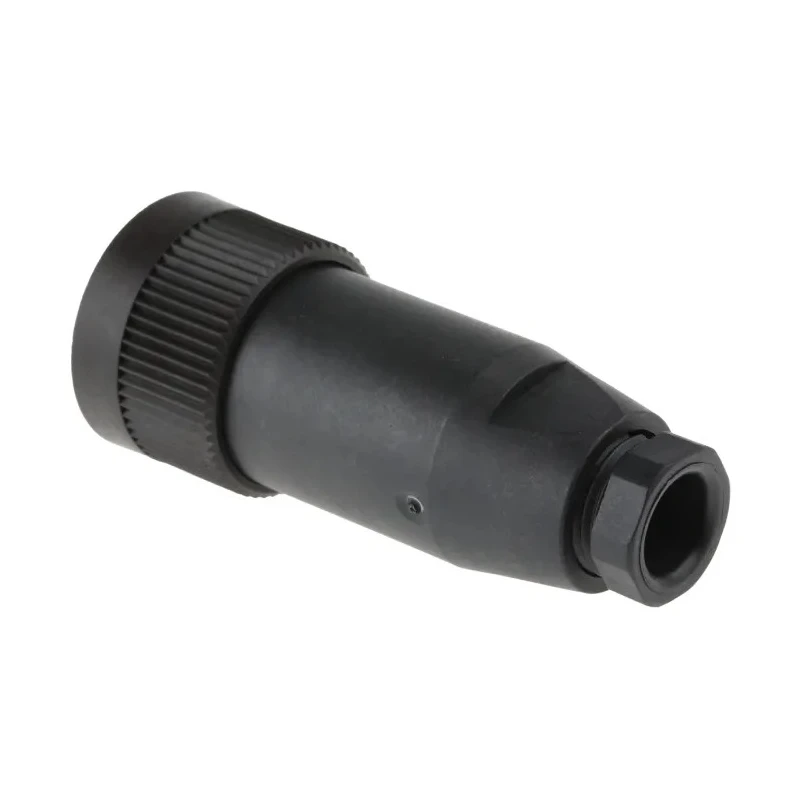

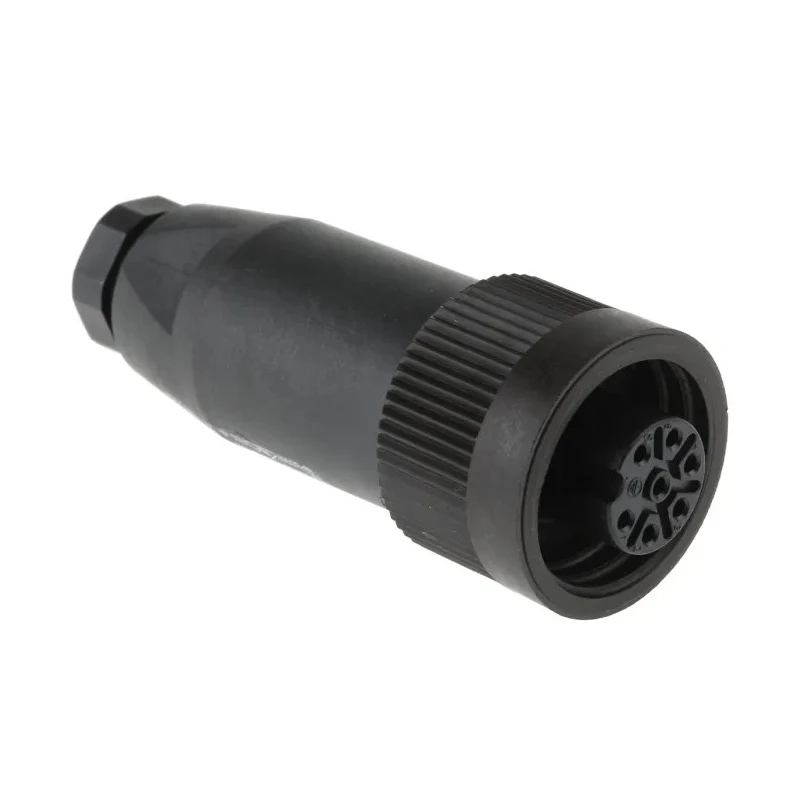

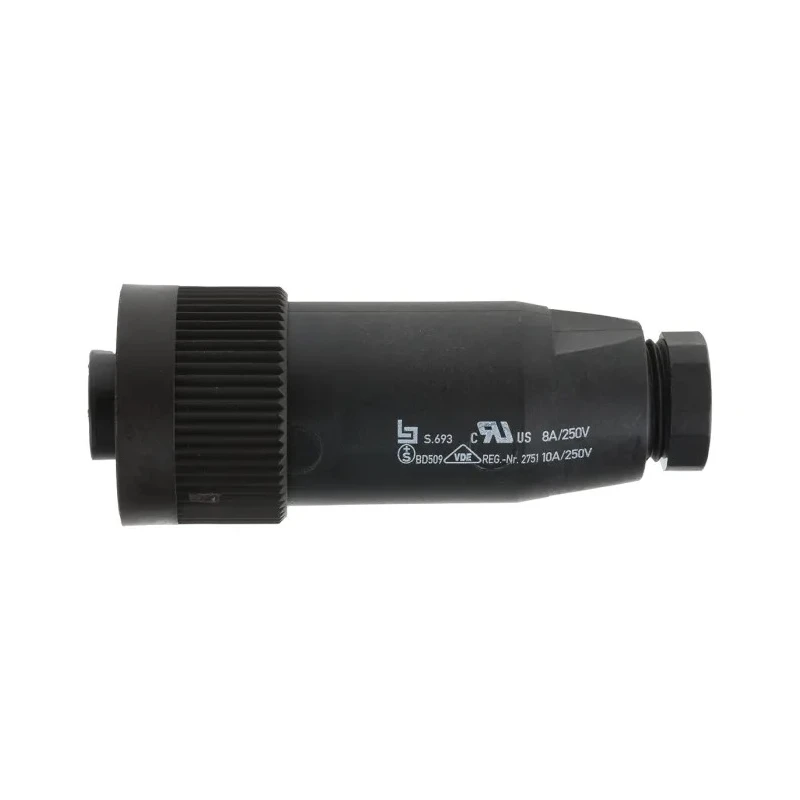

binder Circular Connector, 7 Contacts, Socket Female, Cable Mount, 10A 250V, IP65/IP67, Straight, Solder Termination RD24
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250.0V |
| Brand | binder |
| Orientation | Straight |
| Current | 10A |
| Model | RD24 |
| IP Rating | IP65, IP67 |
| Mount Type | Cable |
| Housing Material | PBT |
| Contact Material | Bronze |
| Series | 693 |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL |
| Pole Format | 6+PE |
| Contact Plating | Silver |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Shell Size | 29 mm |
| Mating Type | Screw |
| Connector Size | RD24 |
| Plug/Socket | Socket |
Key Features
- Offers 7 contacts, including a dedicated protective earth for reliable performance.
- Rated for 10A current and 250V voltage to support industrial signals and moderate power loads.
- IP65 and IP67 ingress protection ensures suitability for harsh and wet environments.
- Features screw-type mating and straight orientation for stable installation.
- PBT housing with silver-plated bronze contacts delivers durability and low-resistance conductivity.
- Solder termination allows secure, vibration-resistant wiring and assembly.
- Operates between -40°C and 100°C, suitable for wide temperature ranges.
- Female socket configuration simplifies field equipment and control panel integration.
Product Description
binder RD24 99-4226-00-07 Circular Connector combines robust engineering and versatile industrial performance for cable-mounted socket solutions. Designed for the binder 693 Series, this connector accommodates 7 contacts in a 6+PE pole format, supporting both signal and protective earth connections for enhanced safety and reliability. Its straight orientation and screw-type mating provide a mechanically stable connection, ideal for vibration-prone installations in manufacturing and automation.
The connector offers IP65 and IP67 ingress protection, ensuring sealed connections for wet, dusty, or washdown environments. The silver-plated bronze contacts and PBT housing confer low-resistance conduction and resilience against chemicals, heat, and mechanical stress.
Solder termination enables technicians to achieve secure, vibration-resistant joints in field applications. With a rated current of 10A and voltage of 250V, it is suitable for machinery, control panels, and sensor or actuator wiring in factory automation.
Female socket configuration and cable mounting simplify integration where power and signal joins need environmental sealing and reliable connectivity.
The connector’s operational temperature range from -40°C to 100°C allows deployment across diverse ambient conditions - whether exposed to cold starts or heat near industrial equipment, maintaining performance and longevity.
UL approval assures adherence to recognized safety standards. The 693 Series’ RD24 shell size (29 mm) further supports compatibility with typical industrial circular connector environments.
Industrial use cases include factory automation, process machinery, sensor/actuator cabling, control panel builds, and field equipment exposed to washdown procedures.
Each unit includes the RD24 circular connector socket as specified; solder termination method requires standard assembly practices for reliable installations. Package does not include mating plug or cable.
Explore more technical connectors and industrial solutions in the binder brand and Industrial Circular Connectors category on EnvMart, supporting stringent demands in electronic, engineering, and factory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 250V.
This connector is rated for a maximum current of 10A.
It has IP65 and IP67 ingress protection ratings, making it suitable for harsh and wet environments.
The operational temperature range for this connector is from -40°C to 100°C.
This circular connector features 7 contacts, including a dedicated protective earth.
It utilizes a solder termination method for secure and vibration-resistant wiring.
The housing is made of PBT, and the contacts are silver-plated bronze.
The shell size for this connector is 29 mm.
This model supports cable mounting, allowing for easy integration into various applications.
It features a screw-type mating mechanism for a stable connection.
Yes, this connector adheres to recognized safety standards and has UL approval.
It is suitable for applications in factory automation, process machinery, and sensor or actuator wiring.
