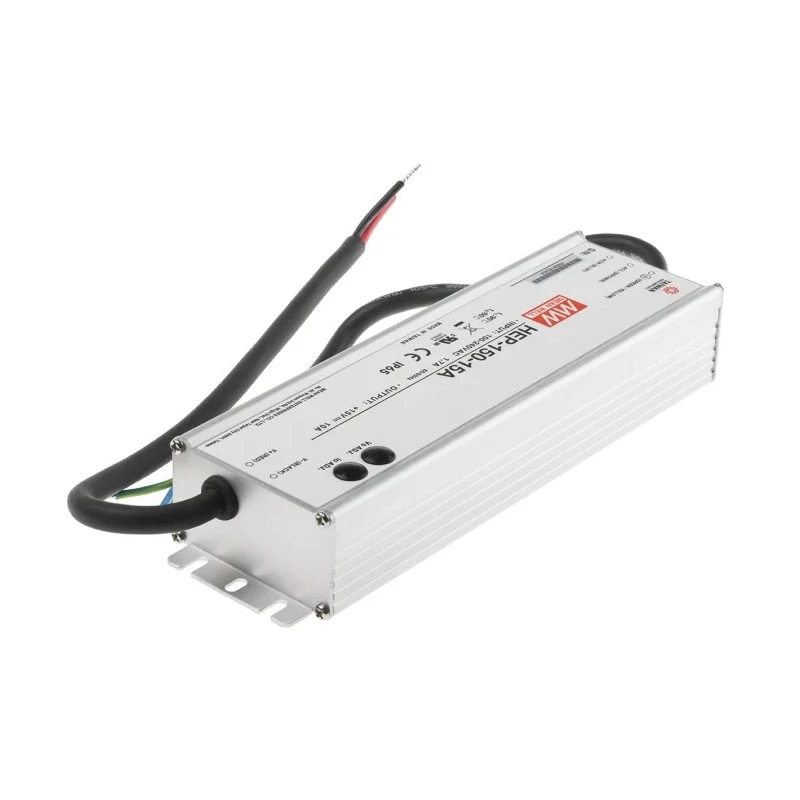

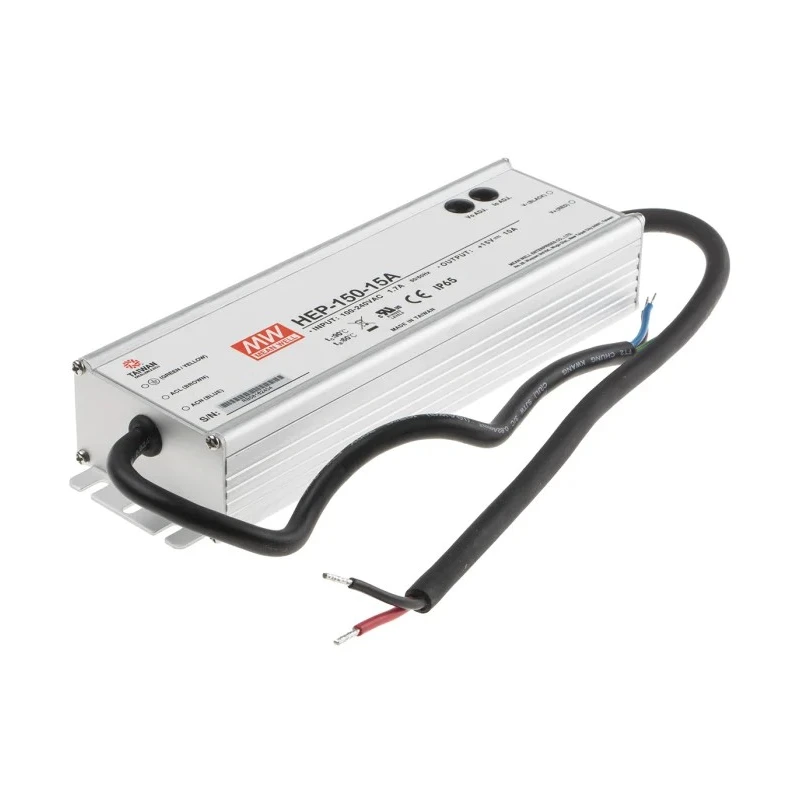

MEAN WELL HEP-150-15A Industrial Switching Power Supply, 15V DC, 150W, IP65, Aluminium, Chassis Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 150W |
| Efficiency | 92% |
| Length | 228mm |
| Model | HEP-150-15A |
| Depth | 38.8mm |
| Gross Weight | 1.2kg |
| Width | 68mm |
| Mount Type | Chassis |
| Series | HEP-150 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -55°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 431, 305V dc |
| Standards/Approvals | ASNZS 668.1, EAC TP TC 004, UL 6681, TUV BS ENEN 6681 |
| Maximum Output Voltage | 15V dc |
| SMPS Output Current | 10A |
| Minimum Input Voltage | 90V ac |
Key Features
- Provides a maximum output voltage of 15V DC with a single output.
- Designed for chassis mount installations with compact dimensions.
- Features robust aluminium construction and IP65 protection for dust, oil, and humidity resistance.
- Operates between -55°C and +70°C with high efficiency up to 92%.
- Withstands 10G vibration, ensuring reliability in industrial applications.
- Cooling achieved by free air convection with heat-conducted silicone.
- 6 KV surge immunity enhances its installation flexibility and resilience.
- Certified to UL, TUV, ASNZS standards, suitable for demanding industry requirements.
Product Description
MEAN WELL HEP-150-15A is a premium industrial switching power supply engineered for robust operation in challenging environments. With a single output delivering 15V DC at up to 150W, it offers versatility for diverse industrial, outdoor, and commercial applications.
This unit features an IP65-rated fully potted aluminium enclosure, providing excellent resistance to humidity, dust, oil, and high-vibration conditions. Its chassis mount design makes installation straightforward and secure within equipment racks or panels.
Provides a maximum output voltage of 15V DC with a single output. Designed for chassis mount installations with compact dimensions. Features robust aluminium construction and IP65 protection for dust, oil, and humidity resistance.
Operates between -55°C and +70°C with high efficiency up to 92%. Withstands 10G vibration, ensuring reliability in industrial applications. Cooling achieved by free air convection with heat-conducted silicone. 6 KV surge immunity enhances its installation flexibility and resilience.
Certified to UL, TUV, ASNZS standards, suitable for demanding industry requirements. Ideal for outdoor telecom, external signage, mining, and petroleum applications. Gross weight is 1.2 kg and dimensions are 228 x 68 x 38.8 mm.
The HEP-150-15A supports a universal AC input (90 - 305V AC, up to 431V DC), maintaining reliable performance and safety even with unstable electrical supplies. Its surge immunity level of 6KV enables protection against typical industrial power disturbances.
Operational efficiency reaches up to 92%, minimizing power losses and thermal output, enabling operation under free air convection cooling. The wide operating temperature range from -55°C to +70°C ensures stable performance in high heat and cold conditions.
Certifications include ASNZS 668.1, EAC TP TC 004, UL 6681, and TUV BS ENEN 6681, validating its suitability for global deployments where regulatory compliance is critical. Typical applications include powering outdoor telecom equipment, external signage, mining installations, petroleum infrastructure, and other demanding industrial sectors.
For more high-performance power supplies and industrial automation solutions from MEAN WELL, browse the extensive EnvMart category range.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 15V DC.
It has a power rating of 150W.
The dimensions are 228mm in length, 68mm in width, and 38.8mm in depth.
The operating temperature range is from -55°C to +70°C.
This model operates with an efficiency of up to 92%.
It is designed for chassis mount installations.
It has a surge immunity level of 6KV, providing protection against typical industrial power disturbances.
It is certified to ASNZS 668.1, EAC TP TC 004, UL 6681, and TUV BS ENEN 6681 standards.
The gross weight of this unit is 1.2 kg.
The input voltage range is from 90V AC to 305V AC, and up to 431V DC.
This model has a single output.
It is suitable for applications in outdoor telecom, external signage, mining, and petroleum infrastructure.
