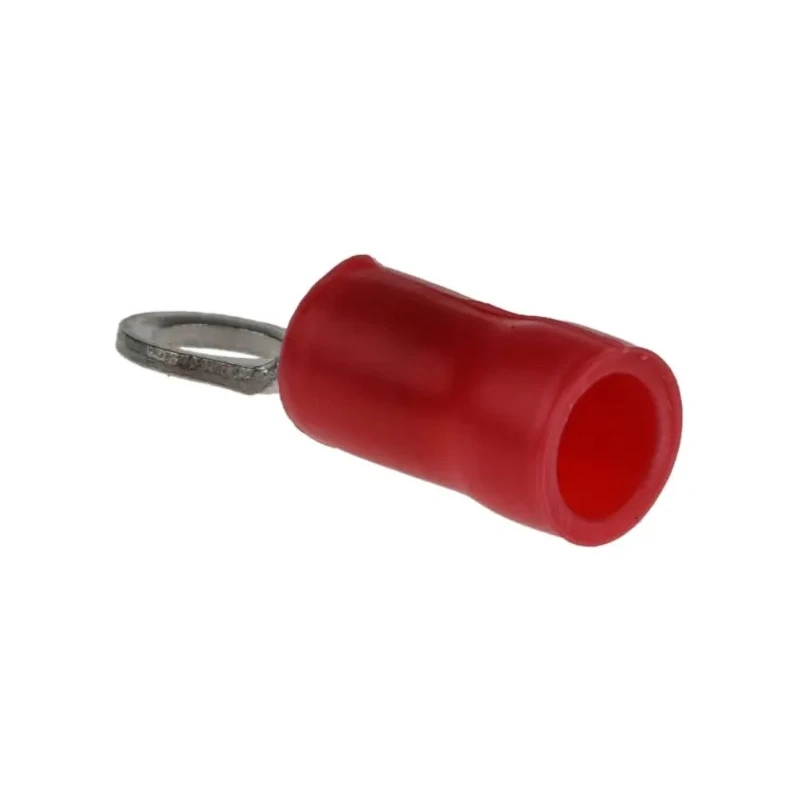

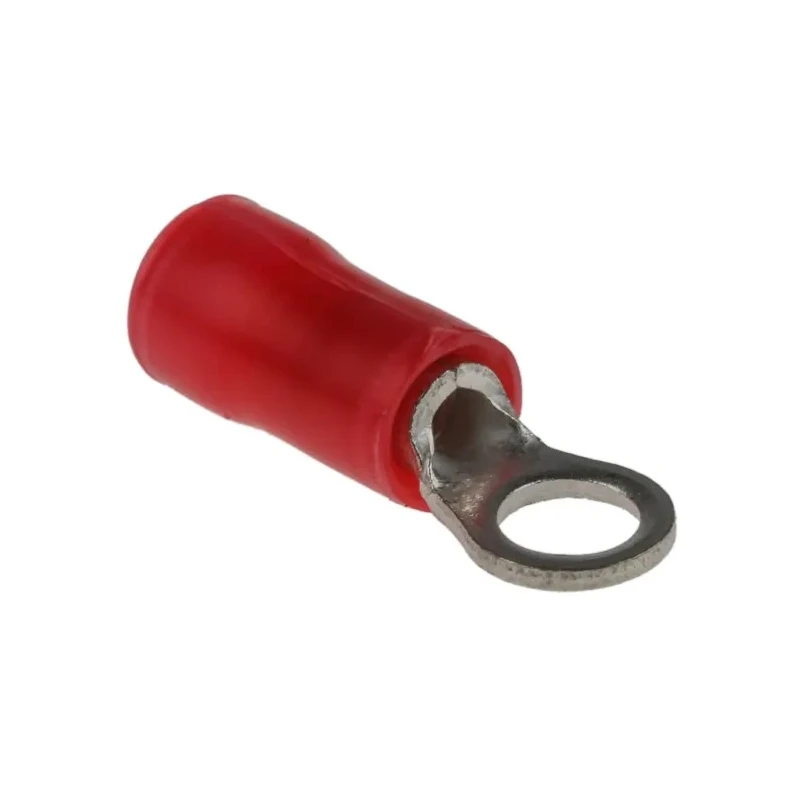

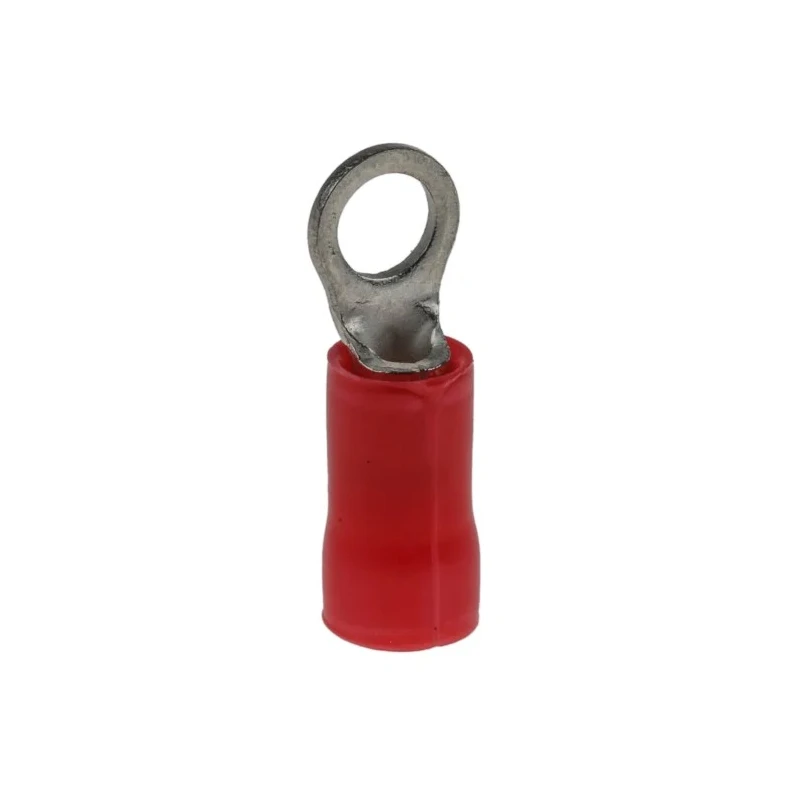

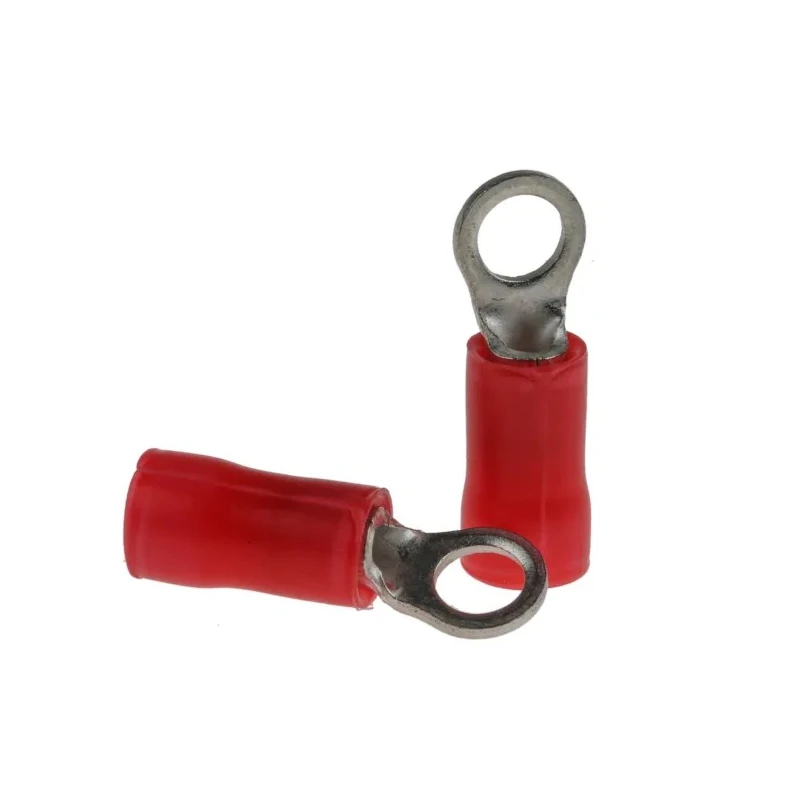

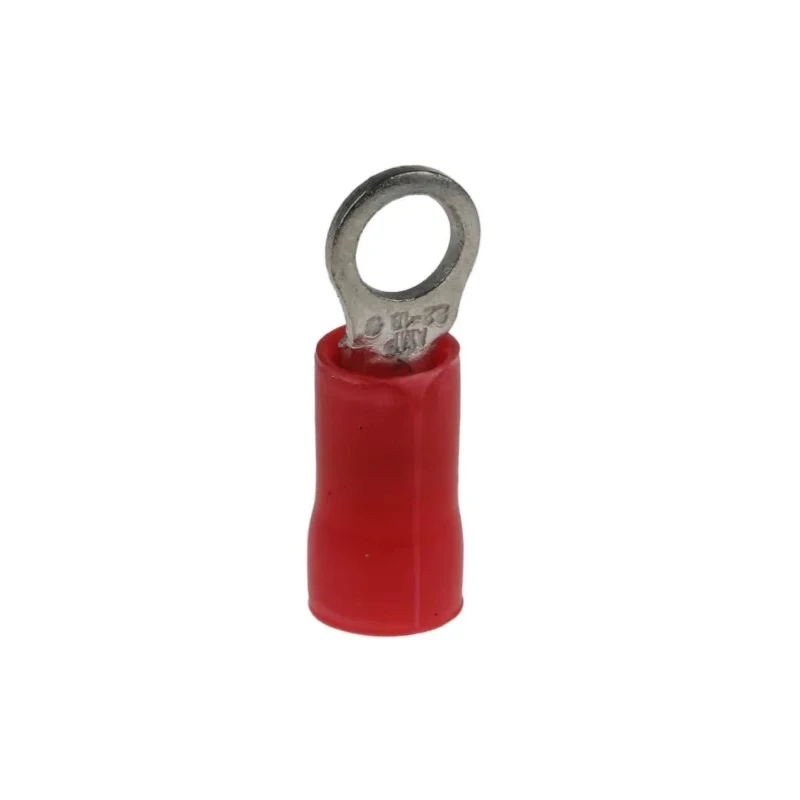

RS PRO Plasti-Grip Insulated Crimp Ring Terminal M3.5 Stud Size 22 - 16 AWG Red 34142
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Model | 34142 |
| Insulation | Insulated |
| Overall Length | 17.37mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.54mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
Key Features
- Insulated vinyl crimp ring terminal for secure electrical connections.
- Supports a wire size range from 22 AWG to 16 AWG.
- M3.5 stud size for compatibility with standard hardware.
- Serrated barrel ensures maximum electrical contact and tensile strength.
- High conductivity copper construction with tin plating.
- 94V-0 rated red vinyl insulation sleeve for safety and durability.
- Maximum operating temperature of 105°C.
- Outer ring diameter of 5.54mm and inner ring diameter of 3.68mm.
Product Description
TE Connectivity 34142 Plasti-Grip Insulated Crimp Ring Terminal is designed for reliable termination of electrical wires in various industrial and commercial applications. Featuring a closed barrel ring tongue, this terminal accepts wire sizes from 22 AWG up to 16 AWG, facilitating secure and robust connections.
The terminal comes with an M3.5 stud size, allowing compatibility with standard hardware used in panel assemblies, machinery, and electronic devices. The barrel is serrated for enhanced electrical contact and mechanical strength following crimping. High conductivity copper, tin-plated for corrosion resistance, forms the main conductive material.
Insulated crimp ring terminal suitable for professional electrical installations. Works with 22 - 16 AWG wires, accommodating a wide range of harnessing and cable requirements. Red vinyl insulation sleeve is rated to 94V-0 for improved dielectric safety and visual identification.
Withstands maximum operating temperatures up to 105°C for demanding environments. Inner ring diameter of 3.68mm and outer ring diameter of 5.54mm optimize fit and contact.
The funneled wire entry makes insertion easy and minimizes the risk of sleeve damage. The terminal is intended for low to medium current connections requiring robust, vibration-resistant fastening.
Typical uses include industrial machinery wiring, control panels, HVAC units, electrical appliance manufacturing, and instrumentation racks. It is suitable for electrical, electronics, and automation sectors.
This terminal complies with the essential requirements for insulated crimp ring terminals but does not carry any special standards or certifications. The TE Connectivity Plasti-Grip series is valued for reliability, efficiency, and adaptability in a variety of applications.
Browse EnvMart for a complete range of TE Connectivity Ring Terminals and other wire termination solutions for electronics and electrical industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 22 AWG to 16 AWG.
It features an M3.5 stud size, making it compatible with standard hardware.
The terminal is made of high conductivity copper with tin plating for corrosion resistance, and it has a vinyl insulation sleeve.
The maximum operating temperature is 105°C, suitable for demanding environments.
The outer ring diameter is 5.54mm and the inner ring diameter is 3.68mm.
The serrated barrel ensures maximum electrical contact and enhances tensile strength after crimping.
The overall length of this terminal is 17.37mm.
Yes, it is designed for reliable termination in various industrial and commercial applications.
It uses a red vinyl insulation sleeve rated to 94V-0 for improved dielectric safety.
Typical uses include industrial machinery wiring, control panels, HVAC units, and electrical appliance manufacturing.
This terminal complies with the essential requirements for insulated crimp ring terminals but does not carry any special standards or certifications.
The country of origin for this terminal is India.
