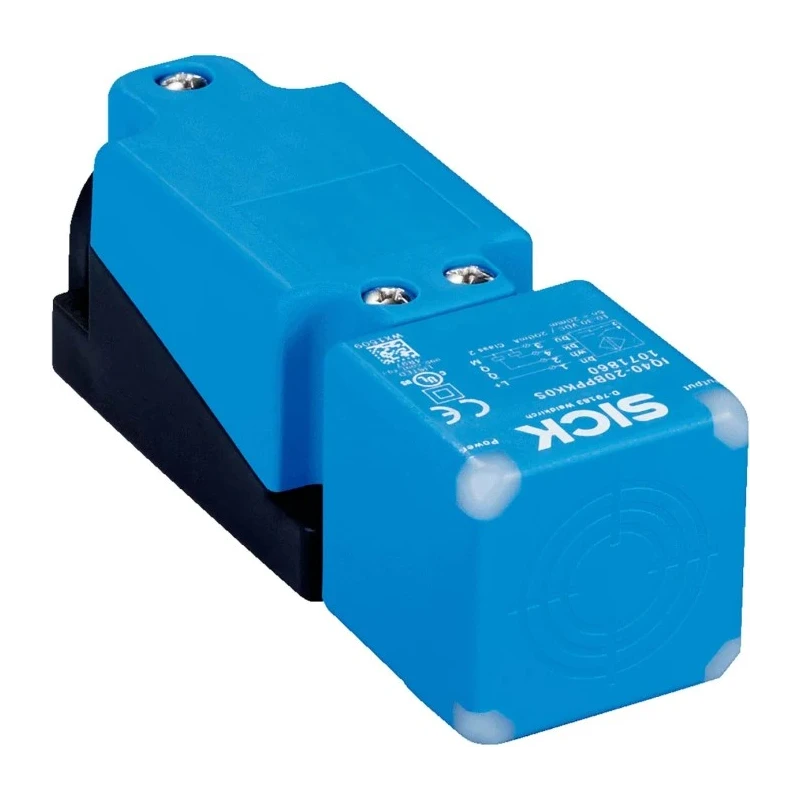

SICK Block Inductive Proximity Sensor, PNP Output, M20 x 1.5, 30V DC, 200mA, 20 mm Sensing, IP69K IQ40-20BPPKK0S

SICK IQ40-20BPPKK0S Block Inductive Proximity Sensor offers advanced metallic object detection within industrial environments, featuring a block-style design and a robust plastic housing. With a 20 mm sensing range, this sensor provides reliable presence and position detection for a wide variety of automation tasks. Designed for flush, screw terminal mounting using its M20 x 1.5 thread, it allows quick installation and replacement in control cabinets, conveyor setups, and manufacturing lines.

Equipped with a PNP output, the IQ40-20BPPKK0S enables straightforward integration with DC-powered equipment, supporting a maximum supply voltage of 30V DC and a switching current capacity up to 200mA. Suitable for continuous operation, the sensor operates reliably in a wide temperature range from -25°C to +85°C. The enclosure is rated for IP69K, IP68, and IP67, ensuring protection against dust, high-pressure water, and submersion, making it ideal for applications exposed to frequent washdowns, vibration, and severe weather.

Key features include extended sensing ranges (20 mm to 40 mm), four corner LEDs for clear status indication from any angle, and an innovative push-lock mounting system enabling tool-free installation and rapid replacement. The sensor head can be rotated to suit multiple installation angles, providing flexibility for complex machinery layouts and tight spaces.

Block-style inductive proximity sensor designed for industrial automation applications. PNP output configuration ensures direct interface with DC control systems. M20 x 1.5 thread size allows secure flush mounting. Offers a 20 mm sensing range for detection of metal objects.

IP69K, IP68, and IP67 rated for robust operation in harsh environments. Plastic housing provides lightweight durability and resistance to chemicals. Wide operating temperature range from -25°C to +85°C. Maximum supply voltage of 30V DC and switching current of 200mA.

Unshielded configuration for extended sensing range.

Typical applications include press tool presence detection, car body positioning in reworking stations, skid detection at lifter exits, rack identification, discrete mechanical position monitoring, conveyor belt clamp wear detection, and end position monitoring in winding units. The sensor's long operating life and resilient design support continuous and stable process operation in demanding industries such as automotive manufacturing, material handling, and food processing.
