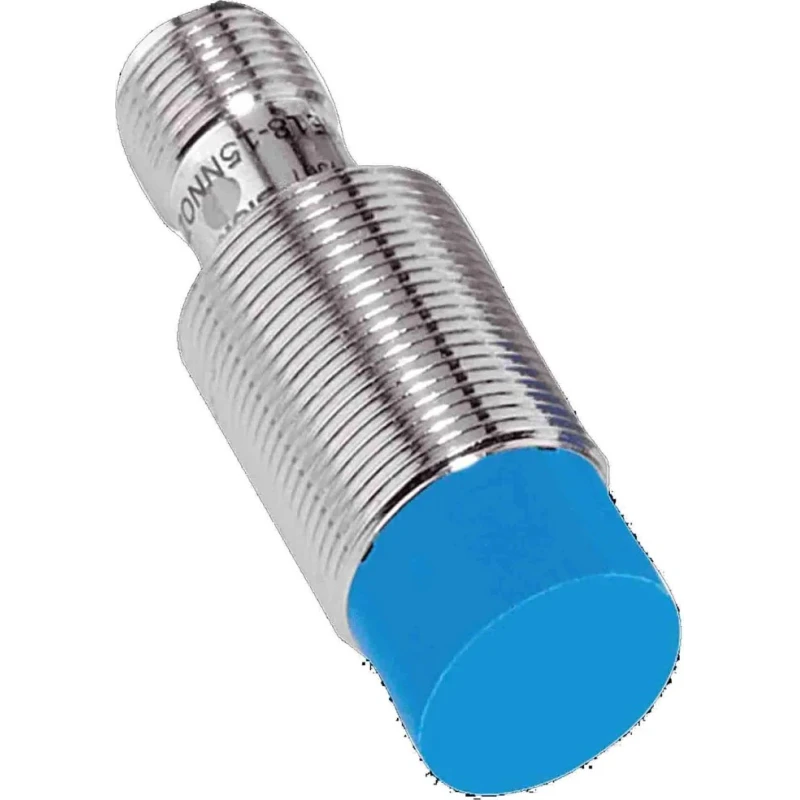

SICK Inductive Proximity Sensor M18 x 1 Threaded Barrel, PNP Output, 12 mm Detection, 30V, IP67, IME18-12NPOZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 50mm |
| Model | IME18-12NPOZC0K |
| IP Rating | IP67 |
| Width | 18mm |
| Mount Type | Non-Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IME18 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M18 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 1kHz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 12mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Designed for industrial automation and presence detection applications.
- Offers a rugged, nickel-plated brass housing with plastic sensing face.
- Provides high positioning accuracy and repeatability through integrated ASIC chip technology.
- IP67 rated for dust and liquid protection, ensuring reliable performance in harsh environments.
- Features a maximum detection distance of 12 mm and a switching current of 200 mA.
- Supports non-contact sensing of metal objects, ideal for production lines and machinery position monitoring.
- Operating temperature range from -25°C to 75°C, suitable for diverse industrial settings.
- 4-pin terminal type for easy and secure connectivity.
Product Description
SICK IME18-12NPOZC0K Inductive Proximity Sensor features a threaded M18 x 1 barrel, offering robust detection of metal objects in demanding industrial environments. This sensor utilizes a PNP output type and provides a maximum detection distance of 12 mm, ensuring high accuracy and efficiency for automation, presence verification, and positioning tasks.
The nickel-plated brass housing with a plastic sensing face delivers excellent resistance to shock and vibration. With an enclosure rating of IP67, the IME18-12NPOZC0K can operate reliably in conditions that involve dust, moisture, and mechanical stresses.
Engineered for automated industrial sensing, such as material handling, machine positioning, and end-of-line quality control. Integrated ASIC chip enables digital adjustment and memory retention, guaranteeing consistent switching points and minimal downtime.
Compatible with DC 3-/4-wire and 2-wire configurations, supporting flexible integration in different control systems. Supports high-frequency switching up to 1 kHz for rapid detection and feedback in fast-moving applications.
Non-flush mount and unshielded design for optimized sensitivity in metal detection.
Typical applications include presence check for components, position monitoring at setup mechanisms, zone detection in elevators, and gripper function monitoring for robotic arms. The sensor meets EN 60529 and EN 60947-5-2 standards, making it ideal for automated manufacturing, logistics, and assembly lines.
Its broad operating temperature range (-25°C to +75°C) and detection versatility (M8 to M30 types; extended ranges 1.5 mm to 38 mm) make it suitable for sheet metal storage, escalator speed monitoring, and load handling device position measurements.
Explore more SICK sensors in the Proximity Sensor category at EnvMart for advanced industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of the SICK IME18-12NPOZC0K is 12 mm, allowing for effective non-contact sensing of metal objects.
This model operates within a temperature range of -25°C to +75°C, making it suitable for various industrial environments.
The sensor features a PNP output type, which is commonly used in industrial automation applications.
The SICK IME18-12NPOZC0K has an IP67 rating, ensuring protection against dust and water ingress.
The sensor has a length of 50 mm and a width of 18 mm, with a threaded M18 x 1 barrel design.
It supports a maximum switching frequency of 1 kHz, allowing for rapid detection and feedback in fast-moving applications.
This inductive proximity sensor is designed to detect metal objects, making it suitable for various industrial applications.
The sensor is compatible with DC 3-/4-wire and 2-wire configurations, providing flexibility for integration into different control systems.
The maximum switching current for this model is 200 mA, which is adequate for many industrial applications.
The housing of the sensor is made from nickel-plated brass, providing robustness in industrial environments.
It meets EN 60529 and EN 60947-5-2 standards, ensuring reliability and performance in industrial applications.
No, this model is a non-flush mount and unshielded design, which optimizes sensitivity for metal detection.
