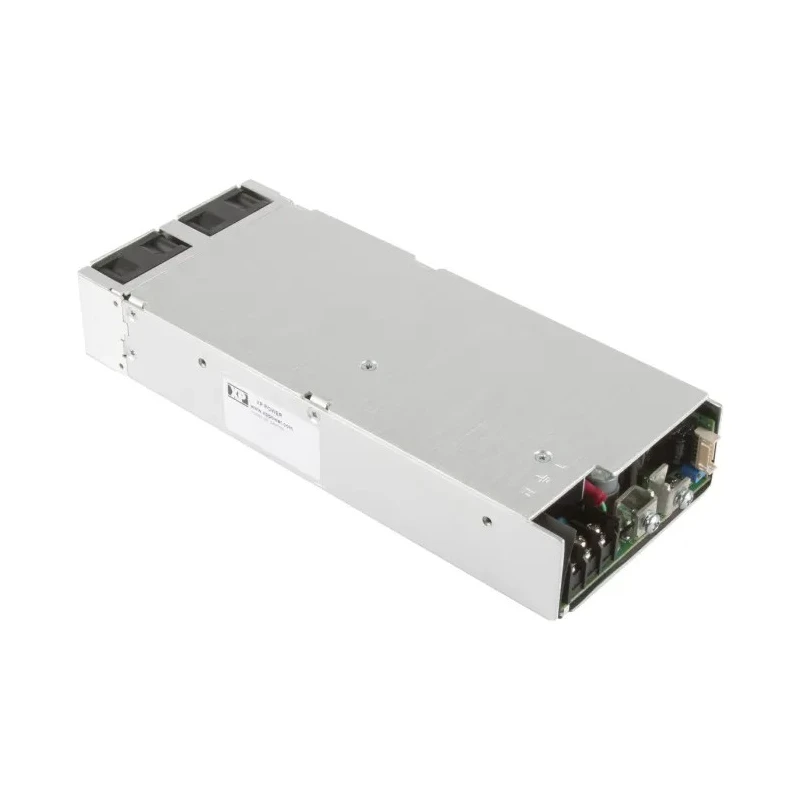

XP Power Switching Power Supply 750W 24V DC, Chassis Mount, GSP750PS24-EF
Specifications
| Country of Origin | India |
|---|---|
| Brand | XP Power |
| Power | 750W |
| Efficiency | 90% |
| Length | 246.44mm |
| Model | GSP750PS24-EF |
| Depth | 41.9mm |
| Gross Weight | 1.4kg |
| Width | 101.6mm |
| Mount Type | Chassis |
| Series | GSP |
| Peak Power | 900 W (100ms) |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 31.3A |
| Minimum Input Voltage | 80V ac |
| ANSI/AAMI ES60601-1 | 2005 |
| CSA 22.2 No. 60601-1 | 08 |
| EN60601-1/A 12 | 2006, Class I |
| EN60950-1 | 2006 |
| IEC60950-1 | 2005 Ed 2 |
| Standby Output | 1.0 W |
Key Features
- Delivers up to 750W power output at 24V DC.
- Supports a universal input voltage range of 80V AC to 264V AC.
- Provides a single output channel with an output current of 31.3A.
- Chassis mount form factor with compact dimensions for optimized space usage.
- Intelligently controlled cooling fan minimizes acoustic noise.
- Wide operating temperature from -40°C to 70°C suitable for industrial and medical environments.
- Efficiency rating up to 90% reduces energy consumption.
- Complies with key international safety standards including ANSI/AAMI ES60601-1 and IEC 60950-1.
Product Description
The XP Power GSP750PS24-EF is a robust, high-performance switching power supply designed for demanding industrial, laboratory, IT, and medical applications. This chassis-mounted unit provides a regulated 24V DC output with an impressive maximum power rating of 750W, ensuring a stable supply for sensitive electronic equipment and systems.
Engineered for universal installation, the power supply supports an input voltage range from 80V AC to 264V AC, accommodating fluctuations in global power systems. It features a single output channel with a high current capability of 31.3A, making it ideal for high-power devices and automation circuits. The compact mechanical footprint, measuring 246.44mm in length, 101.6mm in width, and 41.9mm in depth, allows efficient integration into control panels and equipment racks.
Cooling is managed by an intelligently controlled fan system that dynamically adjusts based on thermal load, optimizing acoustic noise for quiet operation. The device maintains performance across a wide temperature window from -40°C to 70°C, reliably powering equipment in both cold storage and heated industrial environments.
Efficiency is rated at 90%, helping reduce operational energy costs and lowering thermal output. The unit also offers peak power handling of up to 900W for 100ms, enabling short bursts of load without compromising performance. The product features a standby output of 1.0W and remote ON/OFF control for integration into automated systems.
Safety and compliance are ensured through multiple certifications, adhering to ANSI/AAMI ES 60601-1:2005, CSA C22.2, EN 60601-1/A12, EN 60950-1, IEC 60601-1 Ed 3, UL 60950-1 (2007), and RoHS directives. Controlled cooling fans, medical and IT safety approvals, and robust electrical protections are included.
Typical industrial applications include equipment automation, process control, laboratory instrumentation, medical device power, and IT hardware. Browse more Switching Power Supplies from XP Power in the Power Supply & Distribution category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this power supply is 750W at 24V DC.
This model provides a single output channel with a maximum output current of 31.3A.
The dimensions are 246.44mm in length, 101.6mm in width, and 41.9mm in depth.
It has an efficiency rating of up to 90%.
The operating temperature range is from -40°C to 70°C.
Yes, it complies with several safety standards including ANSI/AAMI ES60601-1 and IEC 60950-1.
It can handle peak power of up to 900W for 100ms.
It features an intelligently controlled cooling fan that adjusts based on thermal load to minimize acoustic noise.
The standby output power is 1.0W.
Typical applications include equipment automation, process control, laboratory instrumentation, and medical device power.
The gross weight of this model is 1.4kg.
