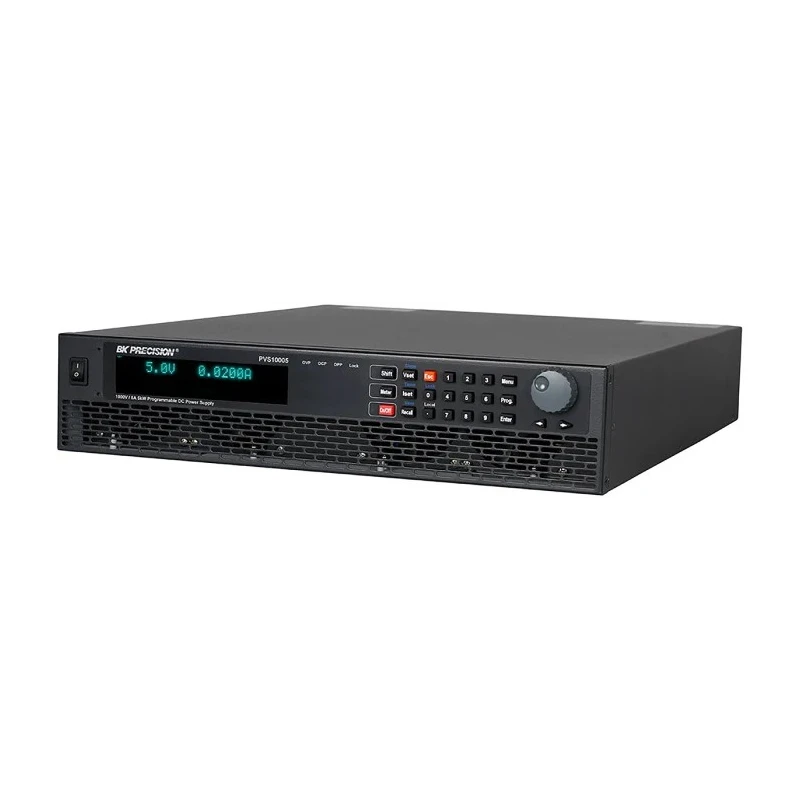

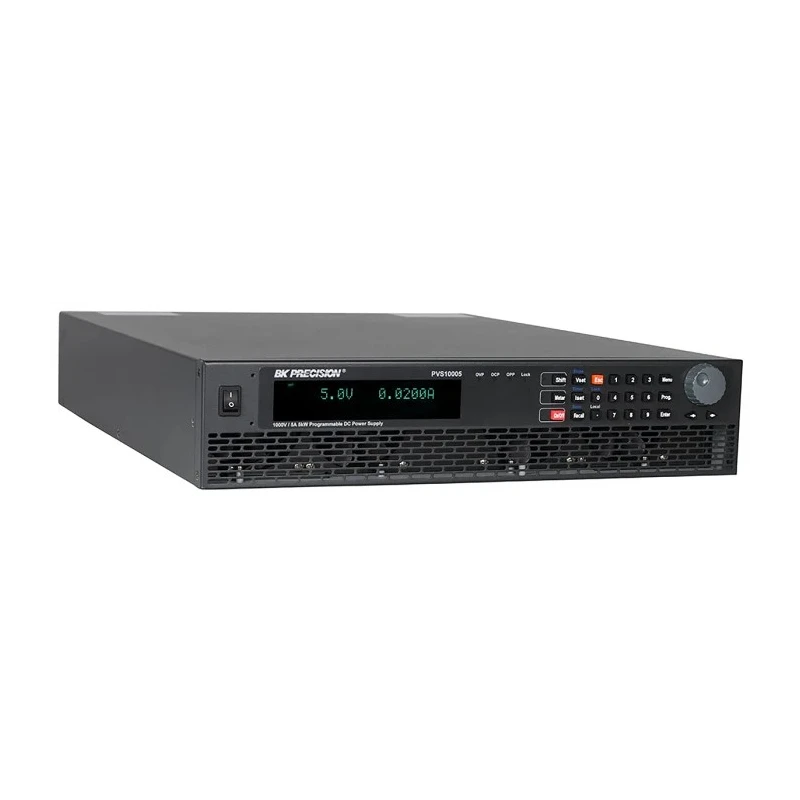

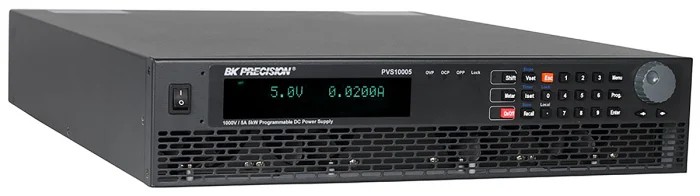

BK Precision Digital Bench Power Supply 1000V 5A 5kW Single Output Programmable PVS10005

Free Delivery in India | Lowest Global Shipping Charges

BK Precision Digital Bench Power Supply 1000V 5A 5kW Single Output Programmable PVS10005

Name: BK Precision Digital Bench Power Supply 1000V 5A 5kW Single Output Programmable PVS10005
Brand: BK Precision
SKU: 88235



Category Bench Power Supply Brand BK Precision Condition New

Specifications

Country of Origin	Taiwan
Brand	BK Precision
Power	5kW
Model	PVS10005
Output type	Digital
Maximum Operating Temperature	40°C
Minimum Operating Temperature	0°C
Plug Type	3 Pin
Interfaces	Standard USB (virtual COM), RS232, GPIB and LAN interfaces supporting SCPI commands
Number of outputs	1
Current Resolution	0.1 mA
Transient Response Time	0.5 ms
Maximum Output Current	5A
Maximum Output Voltage	1000V
Maximum Supply Voltage	265V ac
Minimum Supply Voltage	170V ac
Digital/Analogue	Digital
Supported Number of Displays	2
List mode	9 user-defined programs with up to 100 programmable steps each

Key Features

Single output programmable DC bench power supply supporting up to 1000V and 5A.
Delivers maximum output power of 5 kW for demanding applications.
Bright VFD display with high voltage and current resolution down to 100 mV and 0.1 mA.
Supports fast transient response of ≤ 0.5 ms and adjustable voltage/current slopes.
Includes SAS (solar array simulator) function for PV I-V curve generation.
Compact 2U package optimized for bench use, R&D, and production test setups.
Operational range from 170V to 265V AC input with single-phase configuration.
Supports up to 9 user-defined list mode programs, each with 100 steps.

Product Description

The BK Precision PVS10005 is a programmable digital bench power supply designed to deliver high power and versatility for laboratory, industrial, R&D, and production testing needs. This model is engineered with a compact high-density 2U package, featuring a single DC output capable of providing up to 1000V and 5A, for a maximum output power of 5 kW. Its clean power delivery and exceptional regulation make it suitable for critical applications, including motor inverter testing and high-voltage laboratory projects.

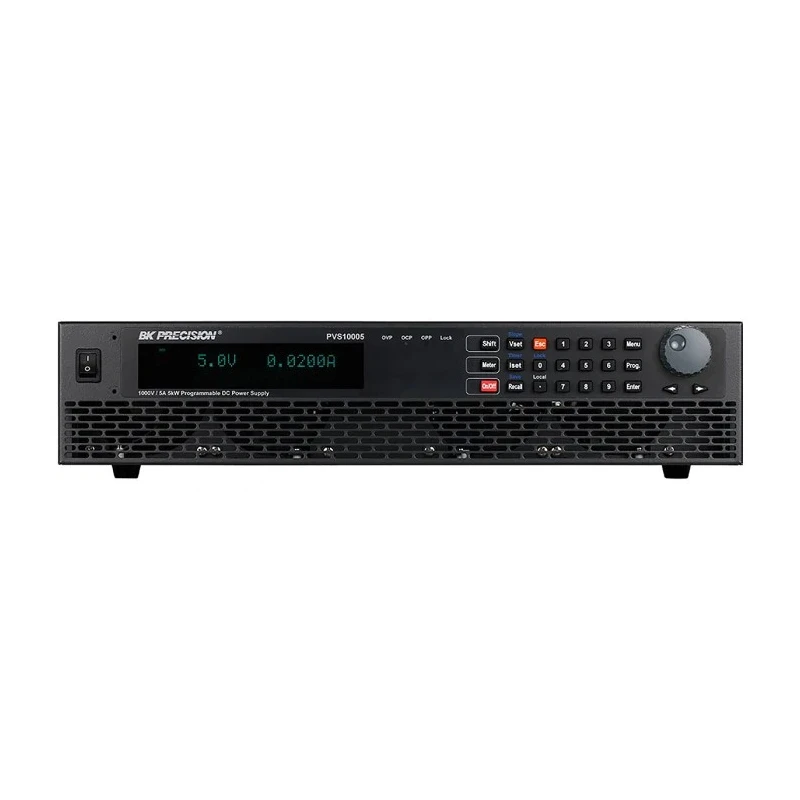

The PVS10005 is equipped with a vibrant VFD display offering high-resolution voltage and current measurements, with increments as fine as 100 mV and 0.1 mA. The power supply supports rapid transient responses (≤ 0.5 ms) and allows users to adjust voltage and current slopes for precise testing.

This advanced Bench Power Supply incorporates a solar array simulator (SAS) function, capable of generating photovoltaic I-V curves, storing up to 16 unique curves with detailed Voc, Isc, Vmp, and Imp parameters. The list mode functionality allows programming of up to 9 custom programs, each with 100 programmable steps, enabling complex and automated sequences for test routines.

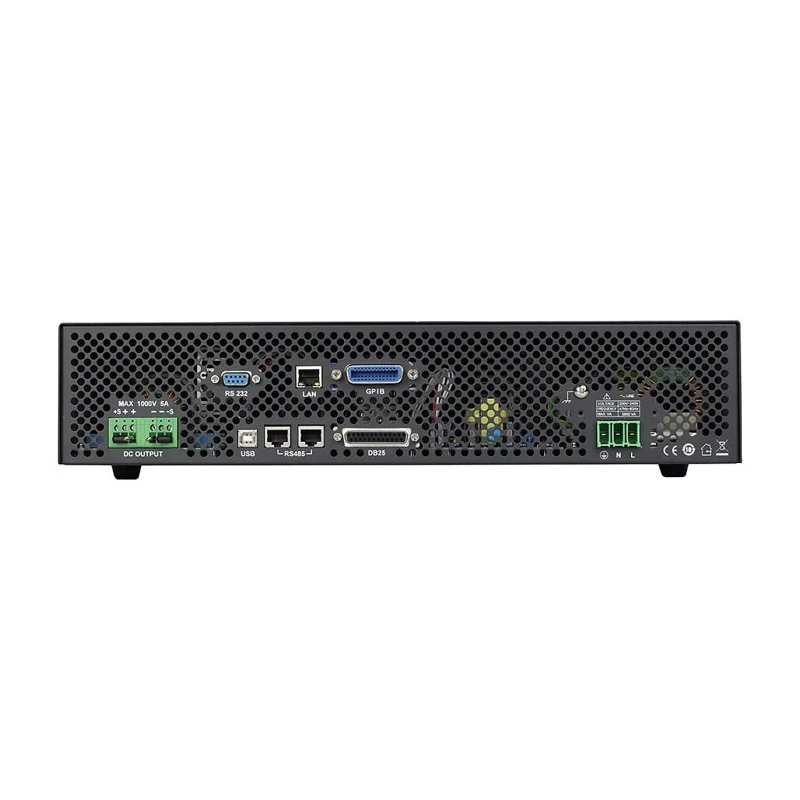

Connectivity is robust, with standard digital remote interfaces including USB (virtual COM), RS232, GPIB, and LAN (Ethernet), all supporting SCPI commands. External analog programming and monitoring are also supported, making integration into automated ATE systems seamless. LabVIEW drivers and a software panel facilitate remote control, test sequence generation, and datalogging.

The supply operates reliably within a wide AC input range (170V - 265V single-phase), with a durable 3-pin plug configuration. It can support up to two simultaneous display outputs and is intended for bench use, R&D, production test, high-voltage and motor inverter testing, and design verification environments.

Temperature range covers 0°C to 40°C, ensuring reliability and safety. The unit comes supplied with essential accessories including user manual, power cord, test report, and certificate of calibration.

The BK Precision PVS10005 stands out in its category for its clean power delivery, advanced programming functions, and the flexibility required for modern laboratory and industrial testing. This product is suitable for professionals seeking reliable, programmable DC power supply solutions for demanding applications in electronics, electrical, solar simulation, and inverter testing.
