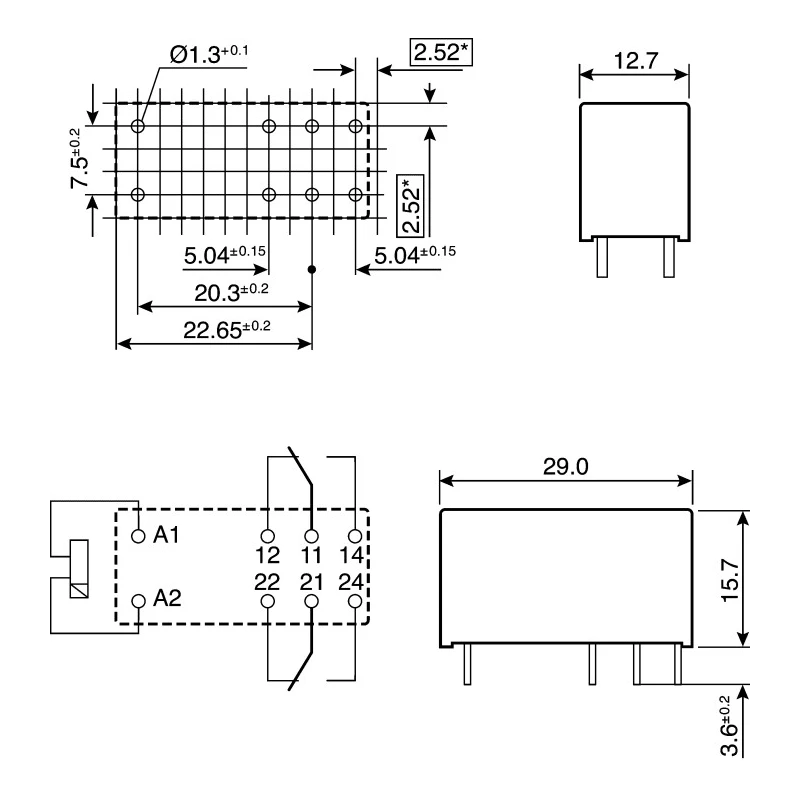

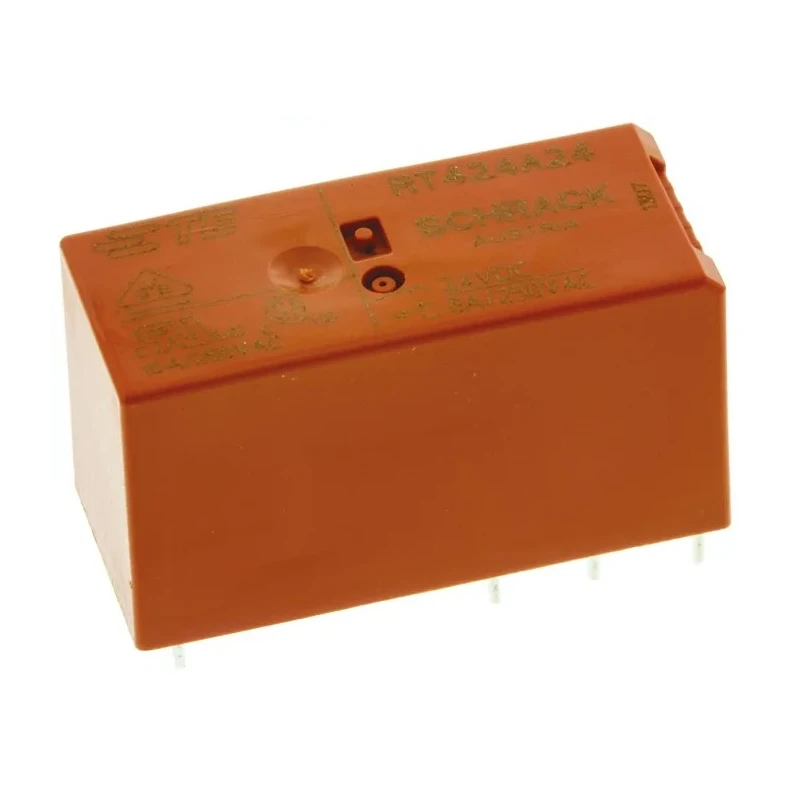

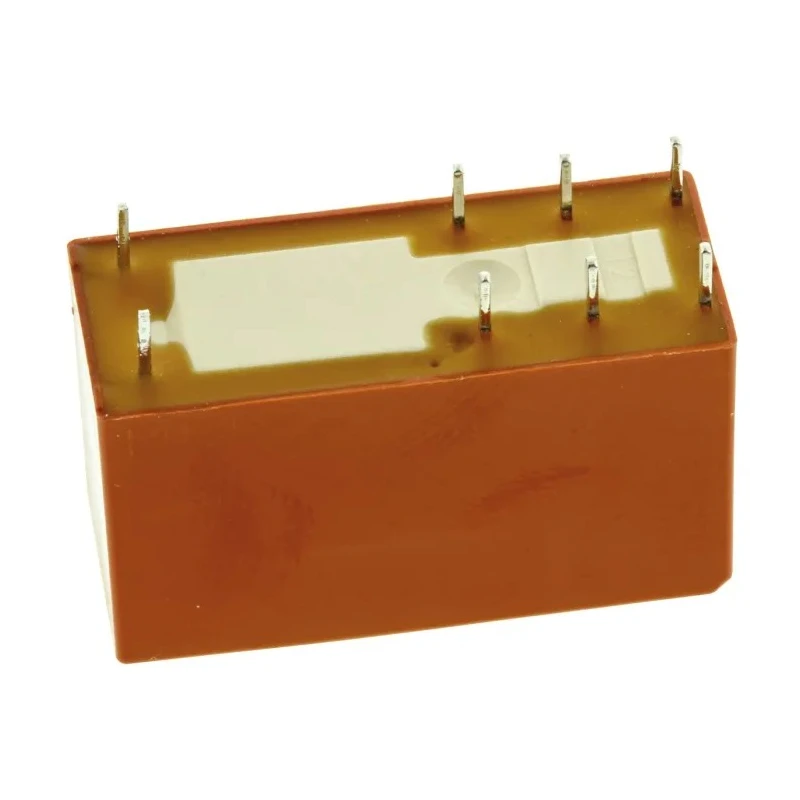

TE Connectivity PCB Power Relay 24V DC Coil, DPDT, 8A Switching Current, SCHRACK Series RT424A24
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424A24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
Key Features
- Offers reliable performance for power switching in industrial and automation systems.
- Features a double-pole double-throw (DPDT) contact configuration for versatile control circuits.
- Supports a maximum switching current of 8A and AC voltage up to 400V.
- Equipped with a 24V DC coil, 1.4kΩ coil resistance, and solder terminals for easy PCB integration.
- Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width.
- Operates in a temperature range from -10°C to 85°C ensuring adaptability to various environments.
- Contact material is silver alloy for high conductivity and durability.
- Meets RoHS approval standard for safety and compliance.
Product Description
TE Connectivity RT424A24 is a high-quality PCB power relay, designed to deliver reliable switching performance in electronic automation, control panels, and industrial equipment. With a 24V DC coil, DPDT contact configuration, and 8A switching current capacity, this relay provides versatile and robust functionality for controlling power circuits.
The SCHRACK series ensures enhanced insulation and shock resistance, making the relay suitable for demanding applications. Its double-pole double-throw contact system allows users to implement complex switching schemes, making it ideal for battery-powered devices, memory-function circuits, and automated controls.
Constructed with silver alloy contacts, RT424A24 offers optimal electrical conductivity and longevity. The solder terminal type and compact dimensions facilitate efficient integration into PCB assemblies, minimizing space requirements in equipment and panels.
RT424A24 operates across a wide temperature range from -10°C to 85°C, enabling reliable performance under varying environmental conditions. The relay is RoHS-approved, supporting compliance with essential safety and quality standards.
Key applications include industrial automation, HVAC control, power distribution, signal conditioning, and manufacturing equipment where high switching current and adaptable mounting are crucial.
This relay is a recommended choice for engineers and designers seeking durable, high-performance relays for PCB-based systems. Reliable power switching up to 8A for industrial and automation controls. DPDT contact configuration for flexible circuit design.
Wide operational temperature range ensures suitability for diverse environments. Silver alloy contacts offer improved conductivity and durability. RoHS-compliant, meeting industry safety and environmental standards. Explore other TE Connectivity relays and electronics solutions in the Power Relay category to find additional options for your specific system needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 8A.
This model features a double-pole double-throw (DPDT) contact configuration.
The coil voltage for this relay is 24V DC.
It operates within a temperature range of -10°C to 85°C.
The coil resistance is 1.4kΩ.
The dimensions are 29mm in length, 15.7mm in height, and 12.7mm in width.
It is equipped with solder terminals for easy PCB integration.
The relay can switch AC voltage up to 400V.
Yes, it meets RoHS approval standards for safety and compliance.
The contact material is silver alloy, which provides high conductivity.
It is suitable for applications in industrial automation, HVAC control, power distribution, and signal conditioning.
The country of origin for this relay is Austria.
