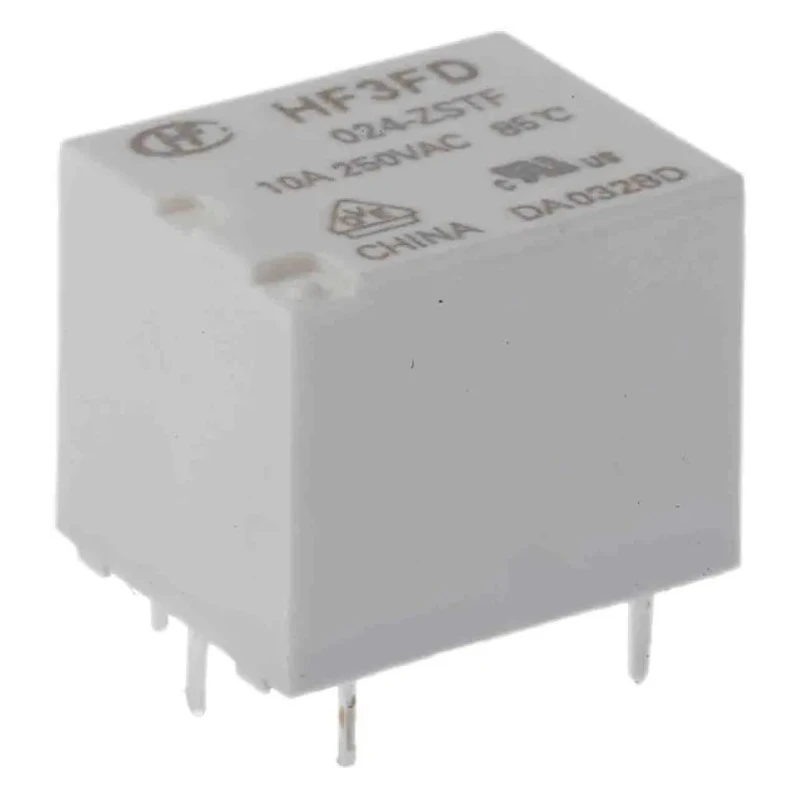

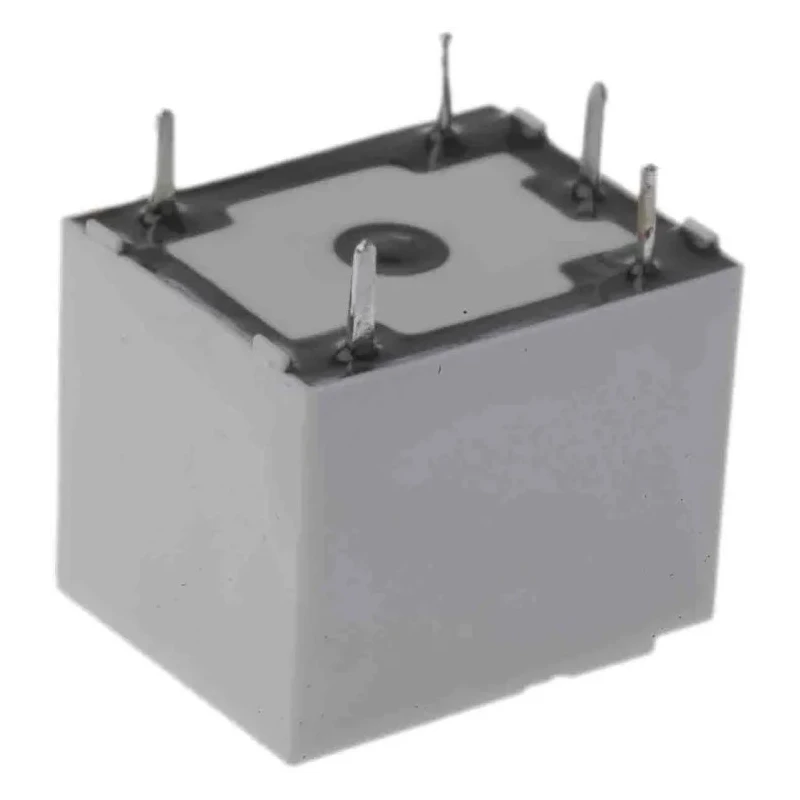

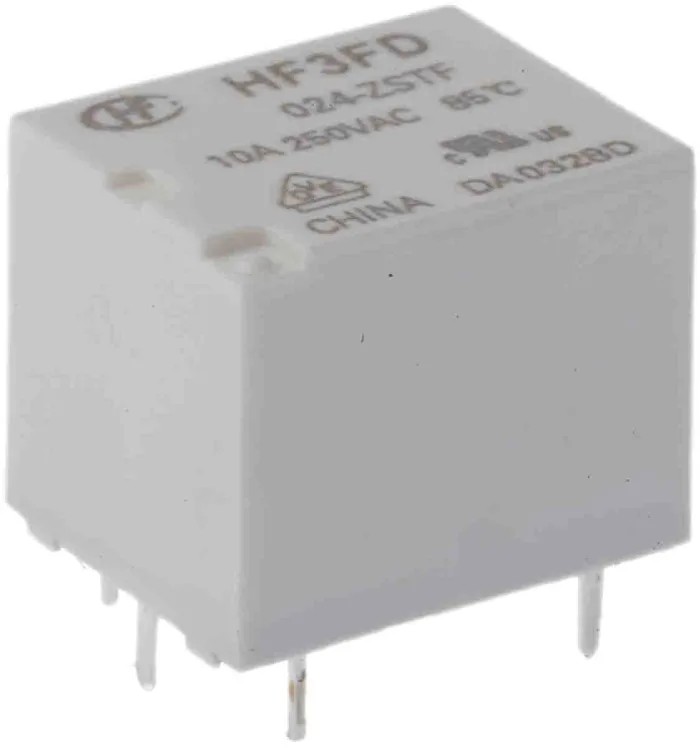

RS PRO PCB Power Relay, 24V DC Coil, 10A Switching, SPDT, Silver Alloy Contacts, Model 0476618P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15.5mm |
| Length | 19mm |
| Model | 0476618P |
| Width | 15.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.6kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 30V ac |
| Coil Power | 360mW |
| Flammability Class | UL94, V-0 |
Key Features
- Designed for PCB applications with solder terminals for stable electrical connection.
- Supports both AC and DC switching voltages up to 30V with a switching power of 2.77kVA.
- High dielectric strength of 2.5 kV between coil and contacts ensures enhanced safety and reliability.
- Non-latching relay with SPDT configuration provides versatile switching operations.
- Wide operating temperature range from -40°C to 105°C for industrial, automotive and home environments.
- IP67 environmental protection, lead-free and cadmium-free construction for eco-friendly usage.

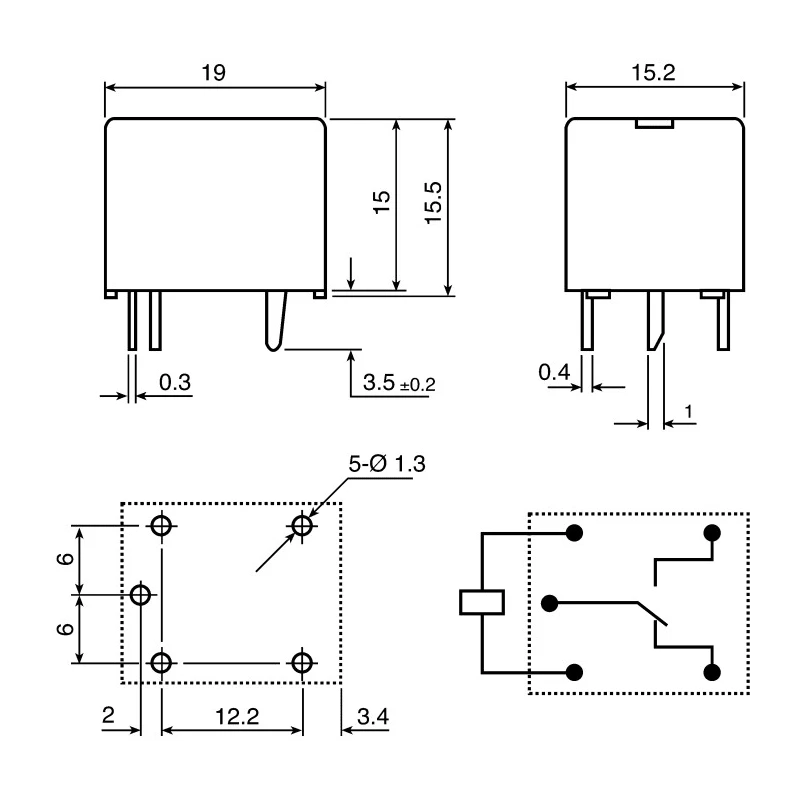

- Compact design with dimensions of 19mm x 15.2mm x 15.5mm and a coil resistance of 1.6 kΩ.
- Silver alloy contact material offers low contact resistance (100mΩ) and durability.
Product Description
The RS PRO 0476618P PCB Power Relay is a robust subminiature relay engineered for reliable switching in a variety of industrial, commercial, and household applications. Designed for easy integration on printed circuit boards (PCB), it features a 24V DC coil, SPDT (single pole, double throw) contact configuration, and a maximum switching current of 10A, making it suitable for automation circuits, power management, and signal switching tasks.
This relay provides versatile operation with both AC and DC switching voltage capability, handling up to 30V and a switching power of 2.77kVA. Its construction includes silver alloy contacts ensuring low resistance (100mΩ) and high durability for repeated switching cycles. The solder terminal design simplifies mounting and maintains stable electrical connectivity within your systems.
Safety and performance are reinforced by its 2.5 kV dielectric strength between coil and contacts and compliance with RoHS and WEEE directives. The unit is rated IP67, offering advanced protection against dust and water ingress, making it ideal for harsh environments including automotive engines, industrial machinery, medical devices, and telecommunications equipment.
This non-latching relay returns to its normal default position when not powered, providing predictable switching behavior. The wide operating temperature range of -40°C to 105°C allows reliable operation in extreme conditions. Additional safety features include lead-free and cadmium-free construction and flammability resistance conforming to UL94, V-0 standards.
Applications cover a broad spectrum: from automotive systems to household device control, industrial automation lines, telecommunication equipment, and medical instruments. Its compact dimensions (19mm x 15.2mm x 15.5mm) support tight PCB layouts while the coil resistance of 1.6 kΩ helps minimize energy consumption.
RS PRO ensures rigorous testing and quality standards in this relay, making it a preferred choice among engineers seeking high-value performance and reliability. Explore the full range of RS PRO relays in the EnvMart Relays & Contactors category for various switching needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 10A.
This relay features a single pole, double throw (SPDT) contact configuration.
The operating temperature range for this relay is from -40°C to 105°C.
The dimensions of this relay are 19mm in length, 15.2mm in width, and 15.5mm in height.
The dielectric strength between the coil and contacts is 2.5 kV.
This model has solder terminals for stable electrical connection.
The contact resistance of this relay is 100mΩ.
This relay complies with RoHS standards.
This relay can handle a maximum switching voltage of 30V for both AC and DC.
The coil resistance of this model is 1.6 kΩ.
