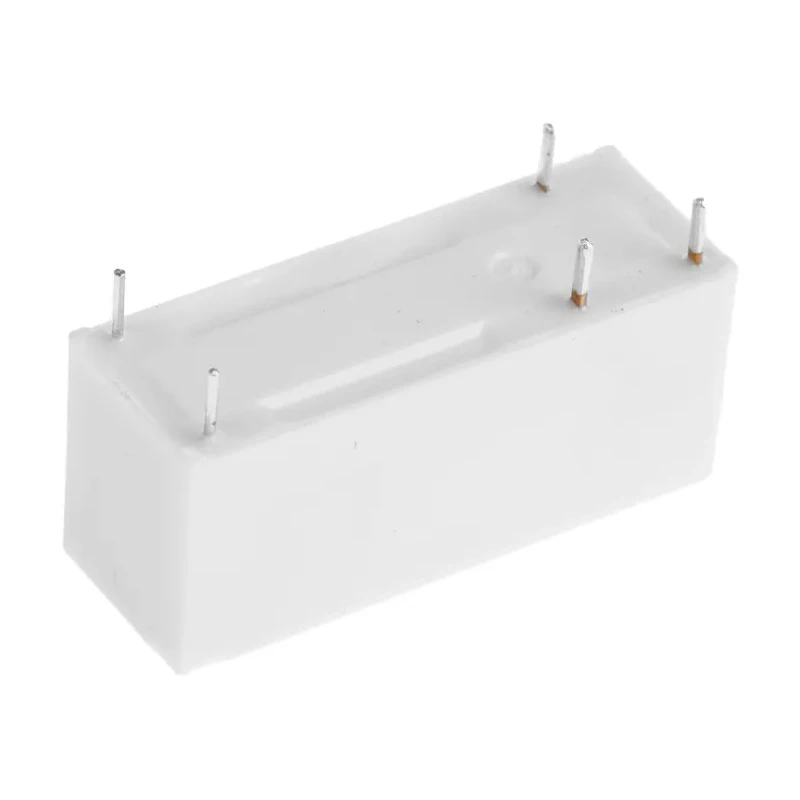

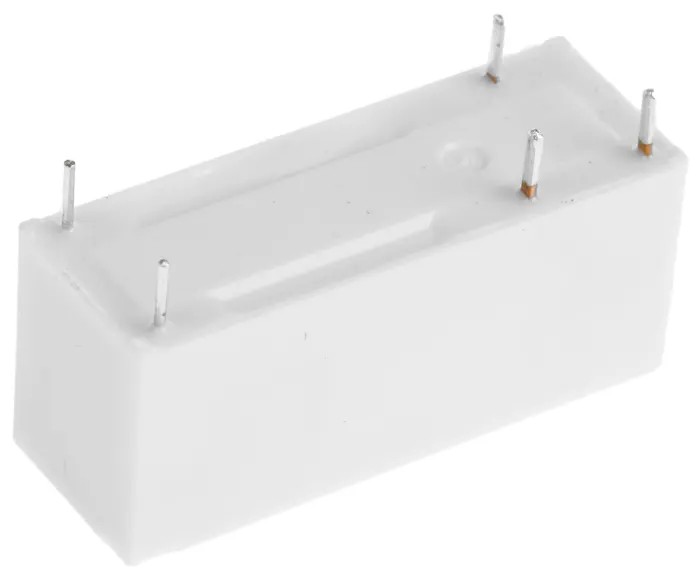

RS PRO PCB Power Relay 12V DC Coil 10A SPDT Low Profile 476-589

The RS PRO 476-589 PCB power relay is an industrial-grade, low profile relay specifically engineered for switching tasks in electronic and electrical equipment requiring reliable control with a 12V DC coil. This relay supports a maximum switching current of 10A, making it suitable for circuits where moderate to high loads are present. Its single pole double throw (SPDT) configuration enables flexible switching between alternate loads or circuit states, often used in automation, HVAC, industrial equipment, and control panels.

The relay features a low-profile, compact form factor with a maximum height of only 12.5mm, making it ideal for spatially constrained PCB assemblies or multi-relay board layouts. Equipped with a 12V DC coil and a coil power of just 290mW, it provides efficient operation and low power consumption. The silver alloy contacts offer superior conductivity and wear resistance, extending the relay's lifespan under both AC and DC switching tasks.

This RS PRO relay can operate at a maximum switching voltage of 125V AC or 125V DC, and withstands up to 10A current, making it well suited for a broad variety of power and signal switching duties. The robust construction includes solder-type PCB terminals, ensuring mechanically stable and electrically secure mounting. Key design features such as a 5kV dielectric strength (coil to contact) and 10kV surge voltage protection enhance safety and reliability in critical environments.

Other notable advantages include a 620Ω coil resistance, a minimum operating temperature of -40°C, and a maximum of 85°C, which means the relay performs reliably both in cold-start industrial settings and in heated enclosed panels. The unit is RoHS compliant and constructed to VDE and IEC 60335-1 standards, with approvals including UL, VDE, and CQC, ensuring suitability for global export and regulated applications.

Common applications for this PCB Power Relay include PCB-based industrial control, HVAC switching, machine automation, security systems, lighting control panels, and other commercial or laboratory projects requiring robust power management.

For buyers seeking high-quality, low-profile, and efficient PCB relays, RS PRO's 476-589 model delivers certified performance for demanding professional and industrial scenarios. Discover more RS PRO relays and industrial automation components by exploring the Electronics & Electricals category on EnvMart.
