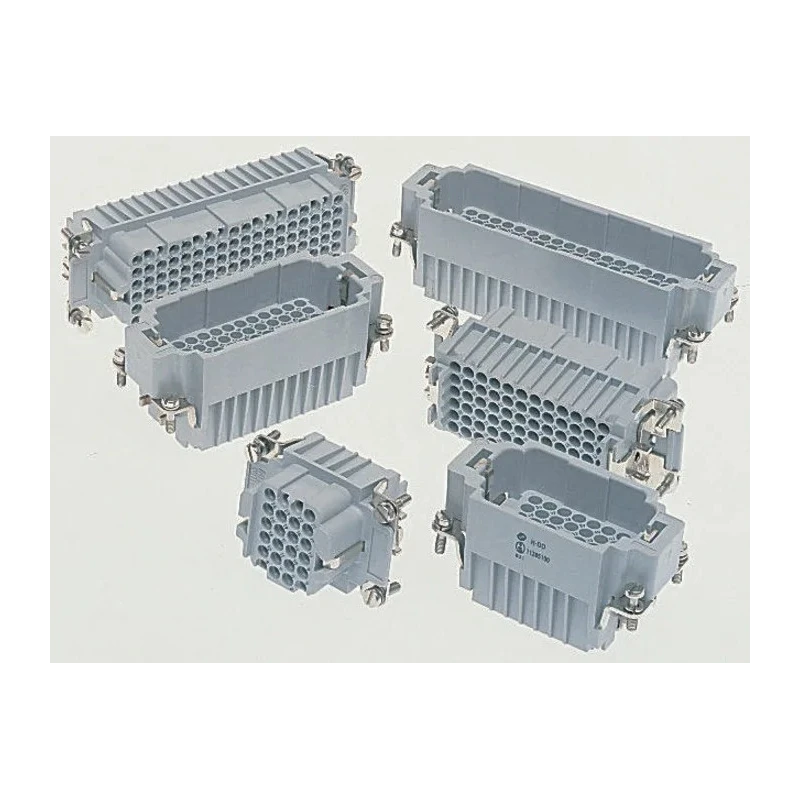

EPIC Heavy Duty Power Connector Insert Female, 24 Contacts, 10A, HDD Series, 600V, Copper Alloy, 11286000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 600V |
| Brand | EPIC |
| Orientation | Straight |
| Model | 11286000 |
| IP Rating | IP65 |
| Approvals | SEV, UL, CSA |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 10A |
| Series | HDD |
| Sub Type | Connector Insert |
| Number of Rows | 4 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 24 |
| Contact Plating | Gold, Silver |
| Number of Contacts | 24 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- High density plug and socket insert for heavy duty power connections.
- Cable mount female connector with 24 contacts in a 4-row arrangement.
- Rated for 10A current and 600V maximum voltage.
- Copper alloy contacts with gold and silver plating ensure reliable electrical performance.
- IP65 protection rating suitable for demanding industrial environments.
- Supports crimp termination and is compatible with H-DD series housings.
- Accommodates wire sizes from 0.14 mm² to 2.5 mm² for versatile cable attachment.
- Designed for low voltage switchgear, machine tools, automation, and professional sound and lighting industries.
Product Description
EPIC 11286000 Heavy Duty Power Connector Insert is a robust, high-density female connector designed for industrial power applications where reliability and compactness are critical. Its HDD Series crimp termination enables secure, efficient installation in cable-mounted configurations and ensures outstanding electrical connectivity for systems requiring numerous contact points.
This connector insert features 24 contacts arranged in four rows, each crafted from copper alloy and plated in gold or silver for enhanced conductivity and corrosion resistance. With a current rating of 10A and voltage support up to 600V, it is ideal for a wide range of industrial uses, including low voltage switchgear, machine tool control, automation frameworks, and professional audio or lighting systems.
The EPIC 11286000 provides IP65 ingress protection, making it suitable for challenging environments where dust and liquid exposure are concerns. Its crimp termination system allows efficient installation using standard indent crimp tools, maximizing both reliability and serviceability. The connector supports wire sizes between 0.14 mm² and 2.5 mm² and includes a dedicated earth connection for safety.
Plug and socket inserts are fully interchangeable and can be coupled to various matching housings in the HDD Series. The compact design ensures high contact density, providing more power or control connections within a smaller shell footprint. Standards compliance includes VDE 0110//72, 0110b, 79, VDE 0627//86, and certifications from SEV, UL, and CSA, meeting strict requirements for industrial and commercial projects.
For optimal usage, connectors should not be coupled or decoupled under electrical load, and coding options are available to prevent mating mismatches. Versatile applications span industrial automation, HVAC systems, water treatment, and professional sound and lighting installations.
Discover more advanced connector solutions in the Heavy Duty Power Connector Insert category or browse other EPIC products for your industrial electrical needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this connector insert is 10A.
This model supports a maximum voltage of 600V.
It has 24 contacts arranged in a 4-row format.
The contacts are made from copper alloy and are plated with gold and silver for enhanced conductivity.
The connector has an IP65 rating, making it suitable for environments where dust and water exposure are concerns.
It accommodates wire sizes ranging from 0.14 mm² to 2.5 mm².
This connector supports cable mounting configurations.
It is compatible with the HDD series housings.
This connector is designed for low voltage switchgear, machine tools, automation, and professional sound and lighting industries.
This connector has approvals from SEV, UL, and CSA, and complies with various VDE standards.
The orientation of this connector is straight.
Connectors should not be coupled or decoupled under electrical load to ensure safe operation.
