Omron PCB Power Relay 5V DC Coil 16A SPDT Low Profile Silver Alloy Contacts G5RL-1-E-HR DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |

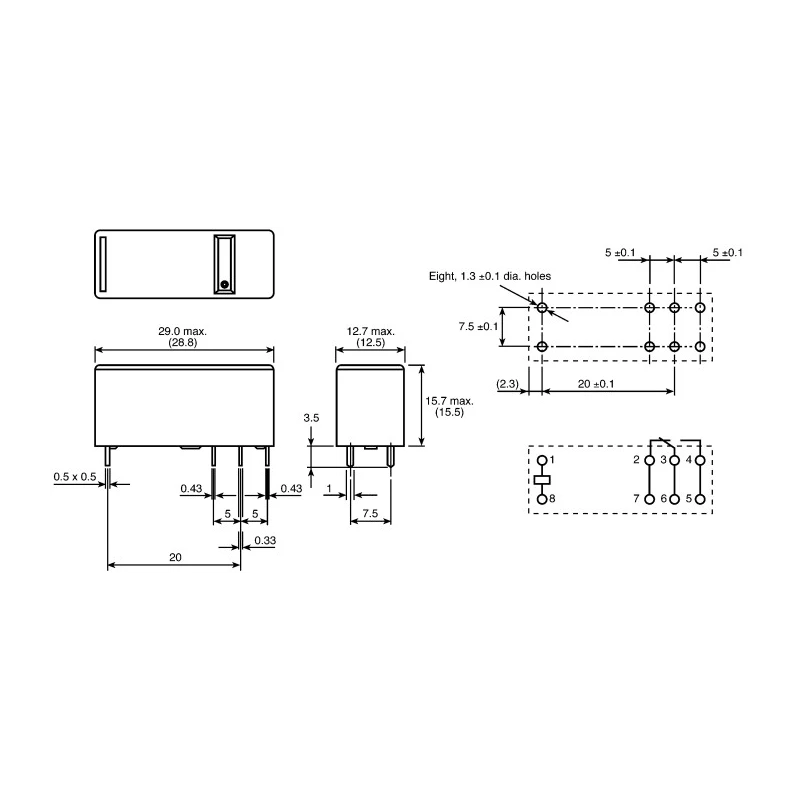

| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-1-E-HR DC5 |
| Approvals | UL, CSA, VDE |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Low Profile | 15.7mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 62.5Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Coil Power | 400mW |
| Creepage/Clearance | 8mm |
Key Features
- Designed for reliable power switching in industrial and automation applications.
- Features a 5V DC coil with low profile, 15.7 mm maximum height for compact installations.
- Silver alloy contacts provide enhanced conductivity and durability.
- Supports high switching current up to 16A and switching power of 4 kVA.
- PCB mount with solder terminals for secure and easy integration.
- Offers silent operation with noise level of 44dB at 15 cm.
- Wide operating temperature range from -40°C to 85°C enhances application flexibility.
- RoHS compliant and equipped with UL, CSA, and VDE approvals.
Product Description
The Omron G5RL-1-E-HR DC5 PCB Power Relay is engineered for demanding industrial automation and control applications, where reliable switching and robust performance are essential. This relay boasts a 5V DC coil voltage and a switching current of 16A in SPDT configuration, making it suitable for power switching tasks in control panels, machinery, HVAC equipment, and other industrial and commercial systems.
With its low profile design, max height of just 15.7 mm, the G5RL-1-E-HR DC5 is perfect for installations that require space-saving components. The relay utilizes silver alloy contacts for superior electrical conductivity and extended service life in frequent switching scenarios.
PCB mounting with solder terminals ensures firm, vibration-resistant integration into printed circuit boards. The relay’s coil resistance of 62.5 ohms and coil power rated at 400 mW provide efficient operation and energy savings. Silent operation (.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for the Omron G5RL-1-E-HR DC5 relay is 16A.
This relay operates with a coil voltage of 5V DC.
The dimensions of this relay are 15.7mm in height, 29mm in length, and 12.7mm in width.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The operating temperature range for the G5RL-1-E-HR DC5 is from -40°C to 85°C.
The coil power rating for this model is 400mW.
The contacts of this relay are made of silver alloy, which enhances conductivity and durability.
This relay is designed for PCB mounting with solder terminals for secure integration.
The G5RL-1-E-HR DC5 is RoHS compliant and has approvals from UL, CSA, and VDE.
The contact resistance for this model is 100mΩ.
This relay can switch DC voltages up to 24V and AC voltages up to 24V.
The relay operates with a noise level of 44dB at a distance of 15 cm.
