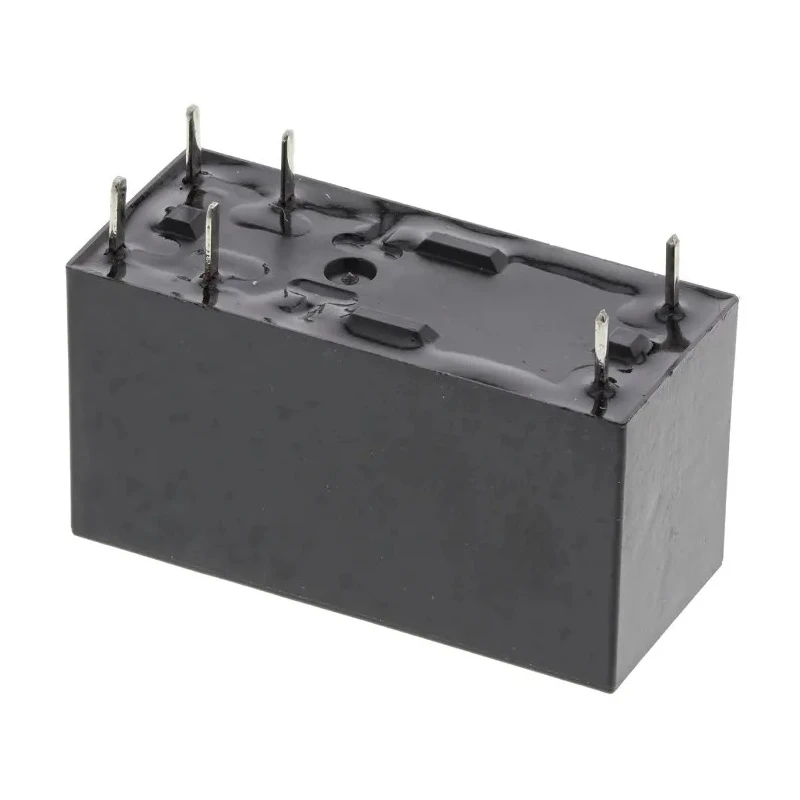

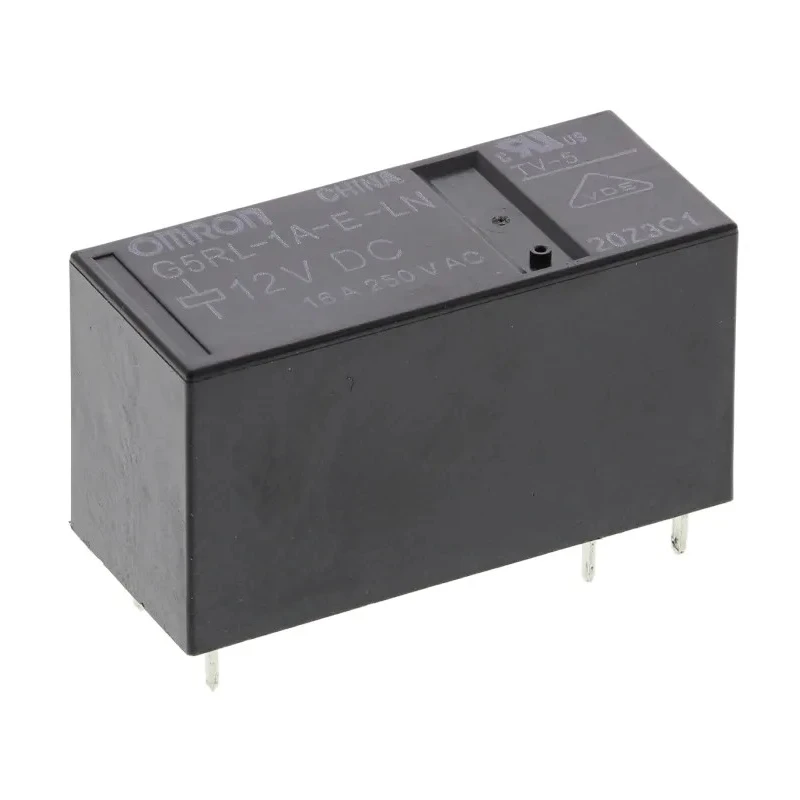

Omron PCB Power Relay SPST 12V DC Coil 16A Switching Current Low Profile G5RL-1A-E-LN DC12BYOMZ
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-1A-E-LN DC12BYOMZ |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Low Profile | 15.7mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 272Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Coil Power | 530mW |
Key Features
- Suitable for PCB mounting applications requiring robust switching performance.
- SPST contact configuration provides simple on/off control.
- 16A switching current supports high inrush and typical load requirements.
- 12V DC coil voltage ensures compatibility with standard control circuits.
- Low profile height of 15.7mm optimizes space in densely packed boards.
- Solder terminal design offers secure connectivity.
- Silver alloy contact material enhances reliability and longevity.
- Wide operating temperature range from -40°C to 85°C.
Product Description
The Omron G5RL-1A-E-LN DC12BYOMZ is a high-performance PCB Power Relay designed for demanding industrial and automation applications. With a SPST contact configuration and a robust switching current of 16A, it is ideally suited for tasks requiring reliable on/off control of circuits, equipment, and loads. The relay is built with a 12V DC coil, making it compatible with a variety of control systems, including PLCs and microcontroller-based boards.
This relay features a low profile design, with a maximum height of 15.7mm, allowing it to fit efficiently into compact enclosures and densely populated PCB layouts. Its solder terminal configuration provides reliable and secure connections, supporting easy integration into manufacturing processes.
The contacts are constructed from high-grade silver alloy, ensuring consistent electrical performance and long operational life. With a coil resistance of 272Ω and a coil power rating of 530mW, the relay is engineered for energy efficiency and durability.
G5RL-1A-E-LN DC12BYOMZ offers wide operating temperature capability, functioning reliably between -40°C and 85°C. It is RoHS certified, making it compliant with modern environmental and safety standards. The relay supports switching DC voltage up to 24V and AC voltage up to 24V, as well as handling switching power up to 4kVA.
Key technical features include low noise operation - almost inaudible at 44dB measured at 15cm - and up to 100A peak inrush current capability for high-demand loads.
This relay is suitable for industrial, automation, HVAC, lighting control, power management, and commercial electronics applications, where robust performance and compact installation are required.
Explore more Omron PCB Power Relays in the Electronics & Electricals category at EnvMart for best-in-class switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A, making it suitable for high inrush and typical load requirements.
The relay operates with a 12V DC coil voltage, ensuring compatibility with standard control circuits.

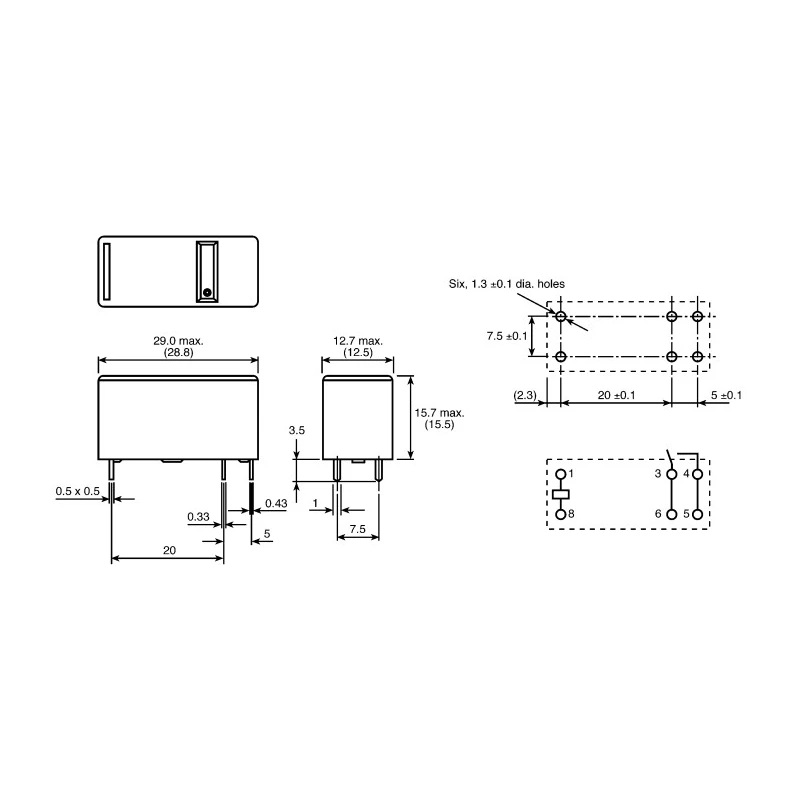

The relay has a height of 15.7mm, a length of 29mm, and a width of 12.7mm, allowing for efficient installation in compact spaces.
It features an SPST (Single Pole Single Throw) contact configuration, providing simple on/off control.
This unit can operate within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
It uses solder terminals, which provide secure connectivity for PCB mounting applications.
The contacts are made from silver alloy, which enhances reliability and longevity in performance.
The coil resistance is 272Ω, contributing to its energy efficiency.
It supports switching DC voltage up to 24V and AC voltage up to 24V, suitable for various applications.
Yes, this model is RoHS certified, ensuring compliance with modern environmental and safety standards.
The coil power rating is 530mW, which indicates its energy consumption during operation.
It is suitable for industrial, automation, HVAC, lighting control, power management, and commercial electronics applications.
