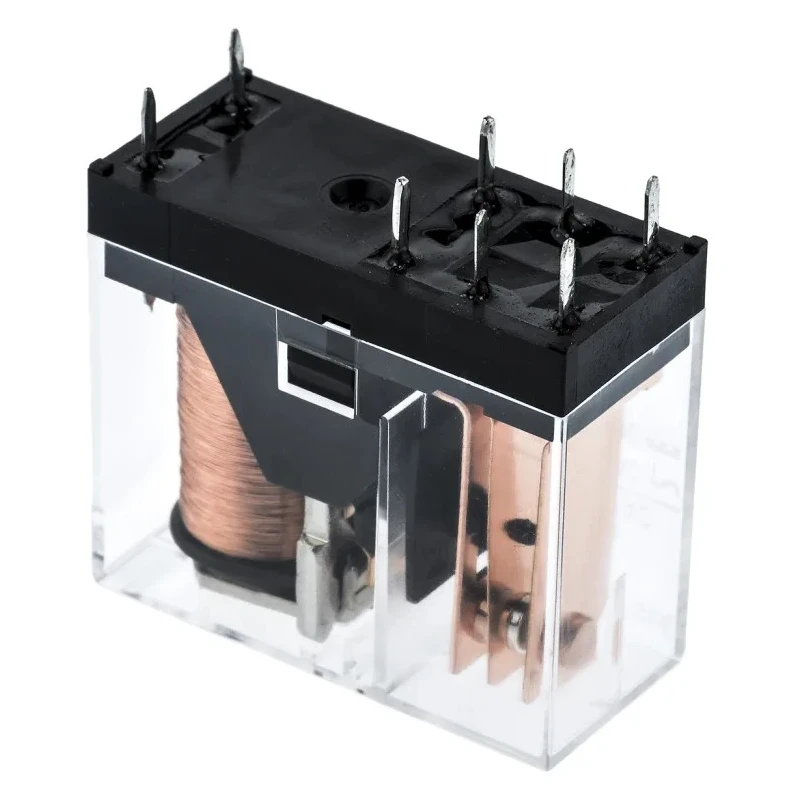

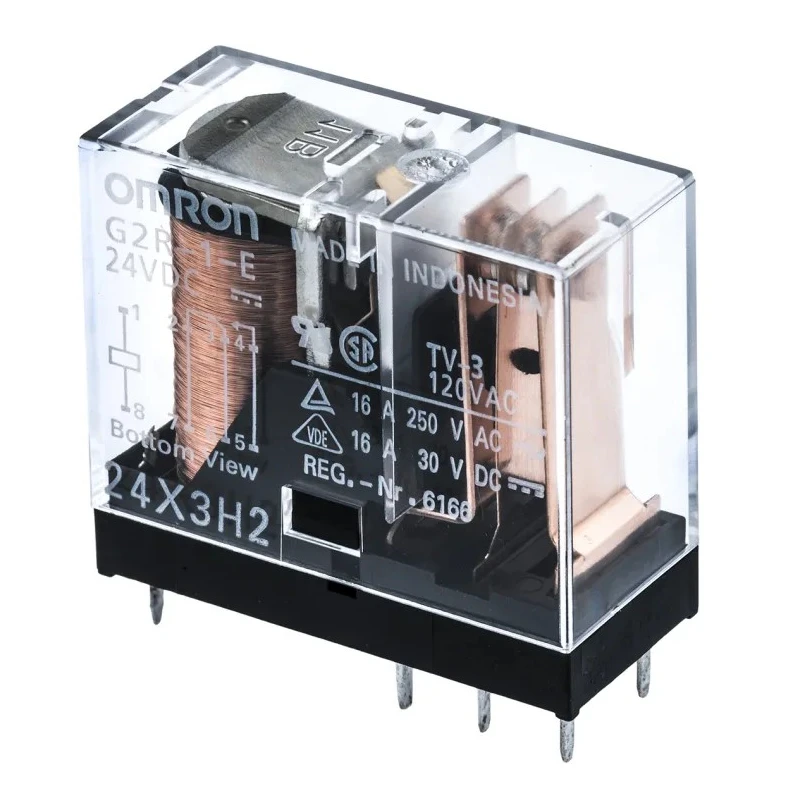

Omron PCB Power Relay 24V DC Coil 16A SPDT G2R-1-E DC24
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-1-E DC24 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R-1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V |
| Omron PCB Non-Latching Relay, 24V dc Coil, 16A Switching Current, SPDTBrand | Omron |
Key Features
- PCB mountable relay designed for compact installations.
- 24V DC coil voltage ensures compatibility with common control systems.
- Rated for 16A switching current for robust power handling.
- SPDT (Single Pole Double Throw) contact configuration provides versatile switching capability.
- Silver alloy contacts deliver reliable electrical conductivity.
- Wide operating temperature from -40°C to +70°C for use in harsh environments.
- Coil resistance of 1.1 kΩ optimizes power consumption and relay activation.
- Suitable for both AC (up to 380V) and DC (up to 125V) switching operations.
Product Description
The Omron G2R-1-E DC24 PCB power relay is a single-pole double-throw (SPDT) relay engineered for reliable switching applications in industrial automation, electrical control panels, and machinery. With a 24V DC coil voltage, it is particularly suited for integration into standard control circuits and is widely used in process control, robotics, and automated equipment.
Featuring a robust 16A switching current capability, the relay handles both high and low power signals efficiently. The silver alloy contact material ensures long-term reliability and stable operation, while the non-latching mechanism provides straightforward control and reset. The SPDT configuration allows flexible device switching, enabling users to control one output from two circuits, or easily switch between different load paths.

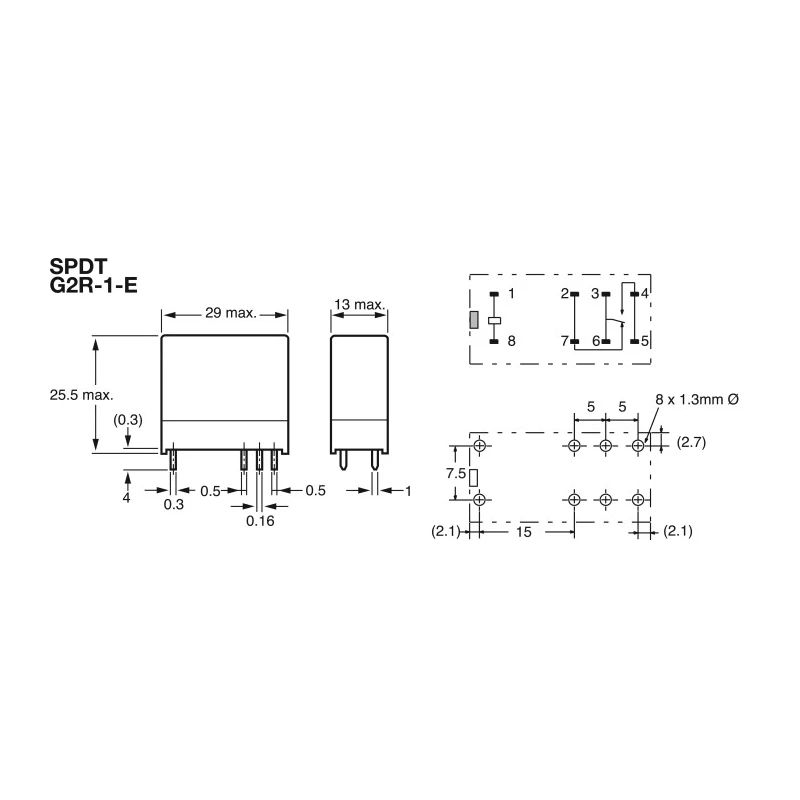

Its compact design - with overall dimensions of 29mm length, 13mm width, and 25.5mm height - saves board space and simplifies PCB layout. The through-hole solder terminal type makes installation secure and supports strong mechanical retention, reducing the risk of connection failure due to vibration or handling.
This relay is engineered to function over a broad temperature range, from -40°C to +70°C, ensuring dependable performance in demanding environments such as industrial plants, HVAC control, and machinery. The coil resistance of 1.1 kΩ optimizes current draw, supporting energy-efficient operation without sacrificing response time.
It is approved for integration in systems requiring compliance with international standards (UL508, CSA22.2, EN 61810-1, SEV, SEMKO), expanding its suitability for global projects.
Applications for the Omron G2R-1-E DC24 include process automation systems, power distribution controls, electrical panels, robotics, and machine interface circuits.
The product's reliability is further enhanced by silver alloy contacts, which minimize contact resistance (30 mΩ typical) and provide enduring electrical connectivity. It is suitable for switching AC loads up to 380V and DC loads up to 125V, allowing for broad versatility. Installation is straightforward and compatible with standard PCB manufacturing processes.
Explore more high-performance PCB relays and automation components in the Power Relay category from Omron on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current rating of 16A, allowing it to handle robust power applications efficiently.
The relay operates with a coil voltage of 24V DC, making it compatible with common control systems.
The relay has dimensions of 29mm in length, 13mm in width, and 25.5mm in height, which supports compact installations.
It features a single pole double throw (SPDT) contact configuration, allowing versatile switching capabilities.
The maximum operating temperature for this model is 70°C, enabling its use in various demanding environments.
This relay utilizes a solder terminal type, which ensures secure installation and strong mechanical retention.
The contacts are made from silver alloy, which provides reliable electrical conductivity and minimizes contact resistance.
The coil resistance is 1.1 kΩ, optimizing power consumption and relay activation.
It can switch AC loads up to 380V and DC loads up to 125V, offering broad versatility for various applications.
Yes, it is approved for compliance with international standards such as UL508, CSA22.2, and EN 61810-1.
The minimum operating temperature is -40°C, allowing it to function in harsh environmental conditions.
This relay is suitable for applications in process automation systems, power distribution controls, and robotics.
