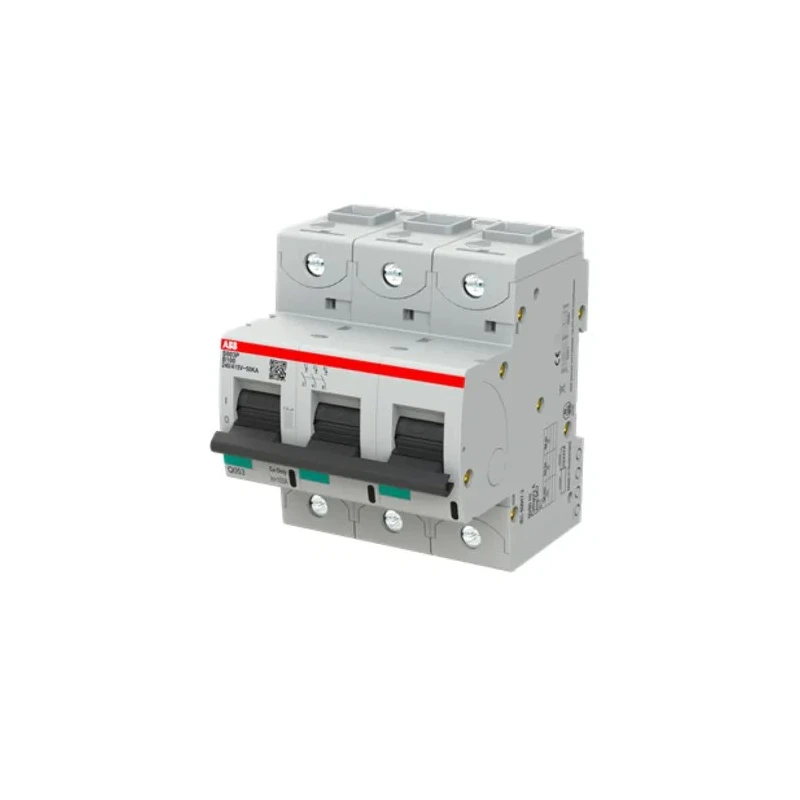

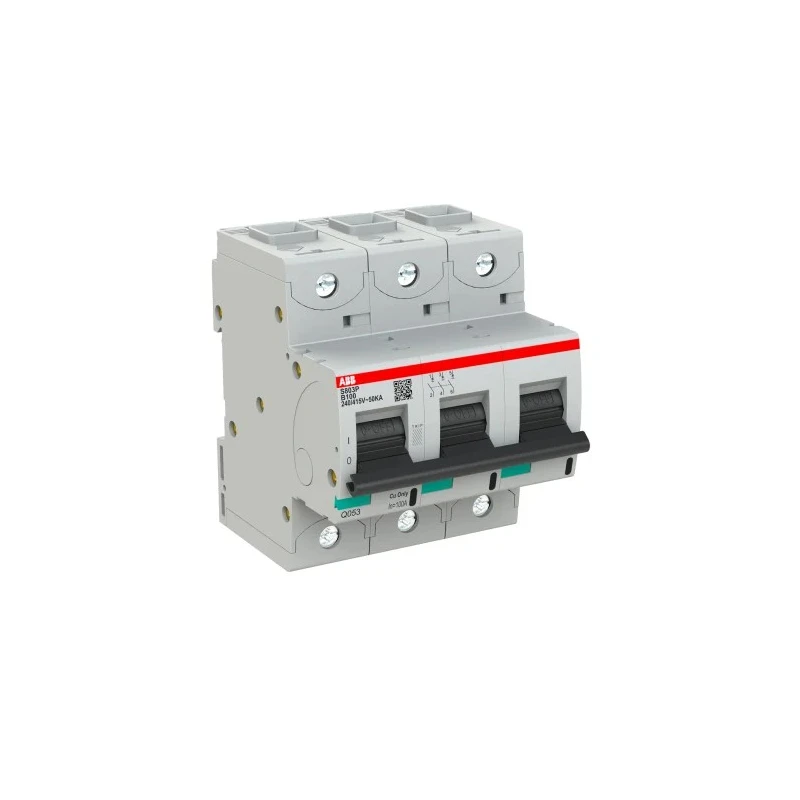

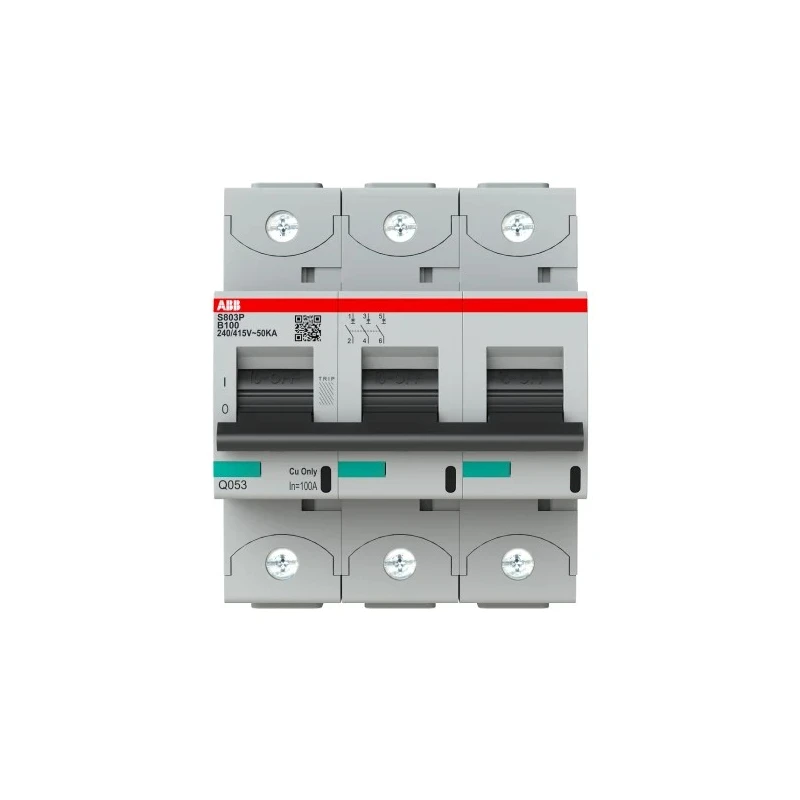

ABB High Performance S800N Miniature Circuit Breaker 3-Pole 100A Type B 690V AC 375V DC 36kA 2CCG001221R0001
Specifications
| Country of Origin | Switzerland |
|---|---|
| Range | High Performance |
| Brand | ABB |
| Height | 95mm |
| Model | 2CCG001221R0001 |
| Depth | 88.5mm |
| IP Rating | IP20 |
| Width | 80mm |
| Mount Type | DIN Rail |
| Current Rating | 100A |
| Series | S800N |
| Terminal type | Cage Terminal |
| Breaking Capacity | 36kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 690V ac |
| Rated DC Voltage | 375V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermomagnetic, Electromagnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Offers a robust 3-pole configuration for consistent circuit monitoring and protection.
- Supports both 690V AC and 375V DC rated voltages for flexible application across electrical networks.
- Delivers a current rating of 100A and breaking capacity of 36kA to safeguard against overloads and short circuits.
- Features Type B tripping characteristics, suitable for general purpose circuit protection with reliable response time.
- Equipped with a DIN rail mount for straightforward installation in distribution panels.
- Utilizes a toggle switch reset actuator for simple and safe manual operation following a trip event.
- Offers thermomagnetic and electromagnetic tripping mechanisms to ensure precise response to fault conditions.
- Compact design with IP20 enclosure and cage terminal connection, meeting IEC/EN 60947-2 and IEC/EN 60898-1 standards.
Product Description
ABB 2CCG001221R0001 is a high performance S800N miniature circuit breaker intended to deliver dependable electrical protection in demanding environments. As a key circuit protection device, it manages overcurrent and short-circuit conditions, minimizing risk to connected circuits and maintaining system integrity.
This breaker is equipped with a 3-pole configuration, making it suitable for three-phase systems in either industrial or commercial power distribution. Its 100A current rating ensures robust protection for moderate to high power branches, while the impressive 36kA breaking capacity guarantees your circuits remain secure even under substantial fault currents.
The S800N utilizes Type B tripping characteristics, offering a sensitive but reliable trip profile, and is designed to disconnect general purpose loads such as lighting circuits, outlets, and low inrush current equipment quickly and safely. Both 690V AC and 375V DC voltage handling make it adaptable for complex installations where mixed current types may be present.
Installation is expedited by the DIN rail mount system, allowing for seamless fitting into distribution boards, and the cage terminal accommodates safe, stable wiring. The compact enclosure (80mm wide, 95mm high, 88.5mm deep) adheres to space-saving requirements, making it ideal for modern industrial cabinet designs and densely packed control panels.
Designed with both thermomagnetic and electromagnetic tripping mechanisms, the S800N efficiently reacts to both overload and instantaneous short-circuit scenarios. Manual control is facilitated by a sturdy toggle switch actuator, which enables quick resetting following trip events, maximizing uptime for protected equipment.
Engineered in accordance with IEC/EN 60947-2 and IEC/EN 60898-1 standards and featuring an IP20 enclosure, this breaker meets international requirements for operational safety and reliability. It is well-suited for use in power distribution for industrial manufacturing, building automation, commercial switchboards, HVAC infrastructure, and more.
The ABB 2CCG001221R0001 S800N circuit breaker is especially valuable in contexts demanding both high performance and versatility, including process control panels, electrical safety retrofits, and applications where robust short-circuit protection and durability are critical.
Explore more miniature circuit breakers and ABB electrical protection solutions on EnvMart for comprehensive safety and control in your power distribution systems.
Explore more products in our Miniature Circuit Breaker (MCB) category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 100A, providing robust protection for moderate to high power branches.
It features a breaking capacity of 36kA, ensuring circuit security even under substantial fault currents.
This circuit breaker utilizes Type B tripping characteristics, suitable for general purpose circuit protection with a reliable response time.
It supports rated voltages of 690V AC and 375V DC, making it adaptable for various electrical networks.
It is designed for DIN rail mounting, allowing for straightforward installation in distribution panels.
This model has dimensions of 80mm in width, 95mm in height, and 88.5mm in depth.
It utilizes a cage terminal connection for safe and stable wiring.
This model is engineered in accordance with IEC/EN 60947-2 and IEC/EN 60898-1 standards for operational safety and reliability.
It features both thermomagnetic and electromagnetic tripping mechanisms to ensure precise response to fault conditions.
The reset actuator is a toggle switch, allowing for simple and safe manual operation following a trip event.
The country of origin for this circuit breaker is Switzerland.
It is well-suited for power distribution in industrial manufacturing, building automation, commercial switchboards, and HVAC infrastructure.
