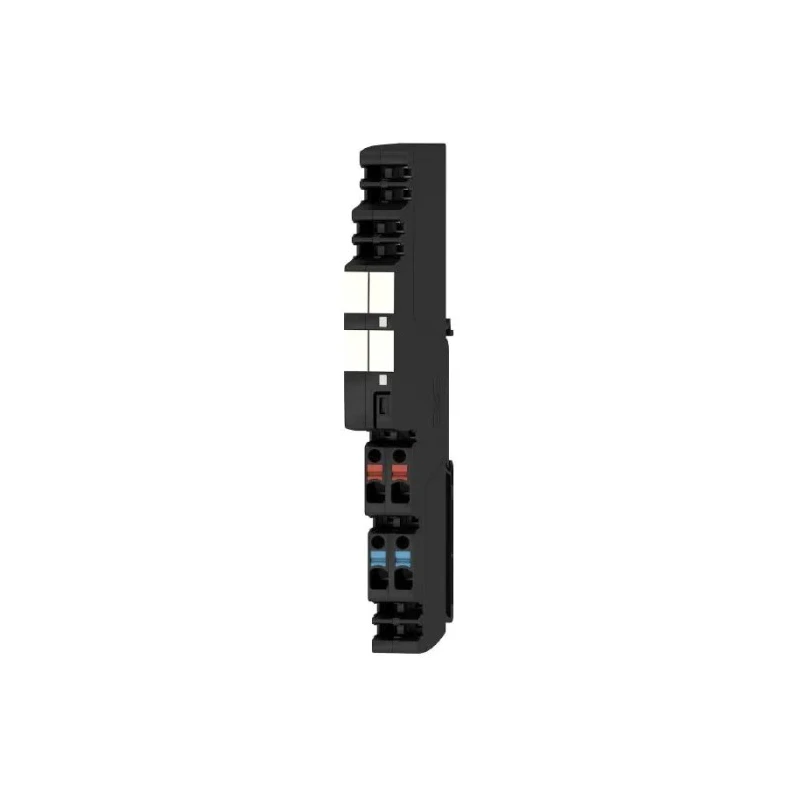

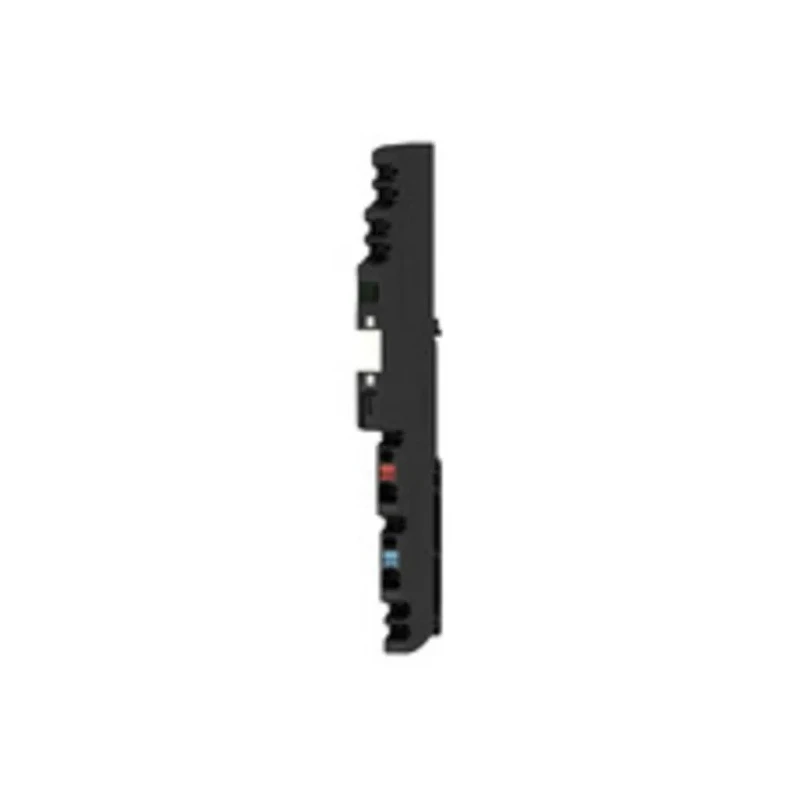

Weidmüller maxGUARD AMG ELM Electronic Circuit Breaker 25mA 24V DIN Rail Cf. Characteristic Curve 2080490000

Weidmüller 2080490000 maxGUARD AMG ELM Electronic Circuit Breaker is an advanced electronic protection device engineered for precise monitoring and safeguarding of electrical circuits in industrial and automation systems. Featuring a current rating of 25mA and a voltage specification of 24V DC, this circuit breaker is part of the maxGUARD AMG ELM series, offering reliable performance for modern control voltage distribution infrastructures.

The circuit breaker is designed for DIN Rail mounting and incorporates push-in terminals, enabling rapid, secure, and maintenance-friendly installation. Its single-channel configuration ensures simple integration into control panels and actuation systems, making it suitable for machine builders, process automation, and facility maintenance teams where fail-safe circuit protection is essential.

One of the key features of the device is its utilization of the Cf. Characteristic Curve, delivering optimized protection for electronic loads and ensuring against common failure scenarios. The compact build, with dimensions of 6.1mm in length, 96.5mm in width, and 125mm in depth, allows for significant space savings on the terminal rail - up to 50% when compared to traditional solutions.

The innovative maxGUARD system combines distribution and monitoring in a single device, greatly streamlining installation and reducing potential wiring errors. Integration of load monitoring and potential distribution enhances safety and increases system reliability. The design complies with international standards such as RoHS, EAC, cULus, and CE, indicating robust quality and global applicability.

Industrial applications of this electronic circuit breaker include manufacturing lines, building automation, process industry instrumentation, and facility management systems that require precise DC voltage circuit protection. Its versatile nature allows it to be easily deployed in control cabinets for automation and electrical distribution.

Advanced electronic circuit breaker with maxGUARD AMG ELM series design. Suitable for 24V DC control voltage distribution systems. Current rating of 25mA for precise load monitoring. DIN Rail mount with push-in terminals for quick and reliable installation.

Utilizes Cf. Characteristic Curve for optimized circuit protection. Compact dimensions: Length 6.1mm, Width 96.5mm, Depth 125mm. Complies with RoHS, EAC, cULus, and CE standards for quality and safety. Single channel configuration for streamlined integration.

Designed for efficient facility operation and reduced terminal rail space requirements.

This product is ideal for use in industrial, facility, and automation applications requiring high reliability and compliance. Browse more Electronic Circuit Breakers and Weidmüller industrial automation solutions in EnvMart's catalog.
