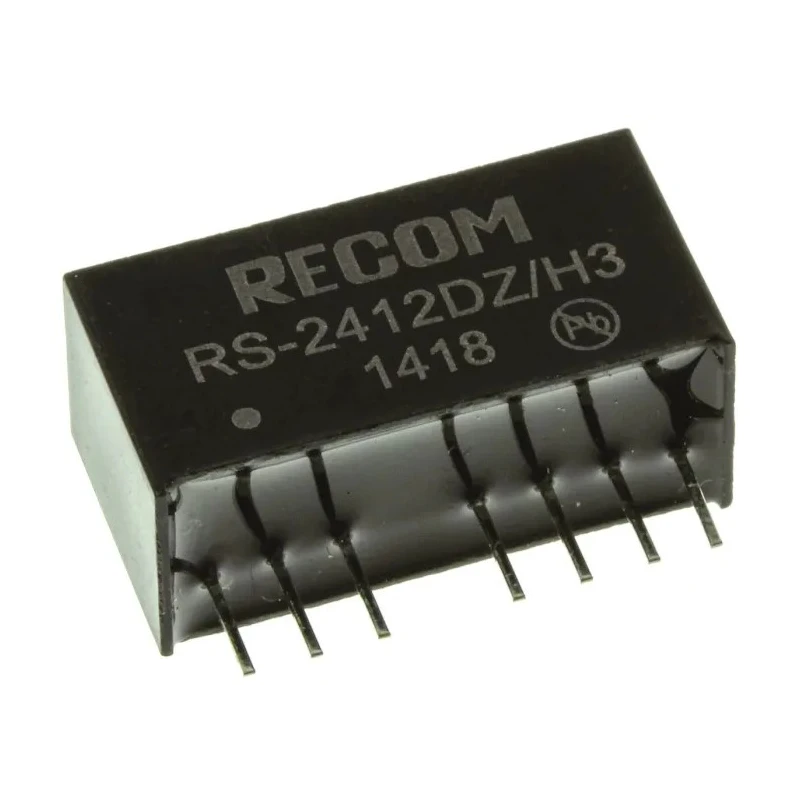

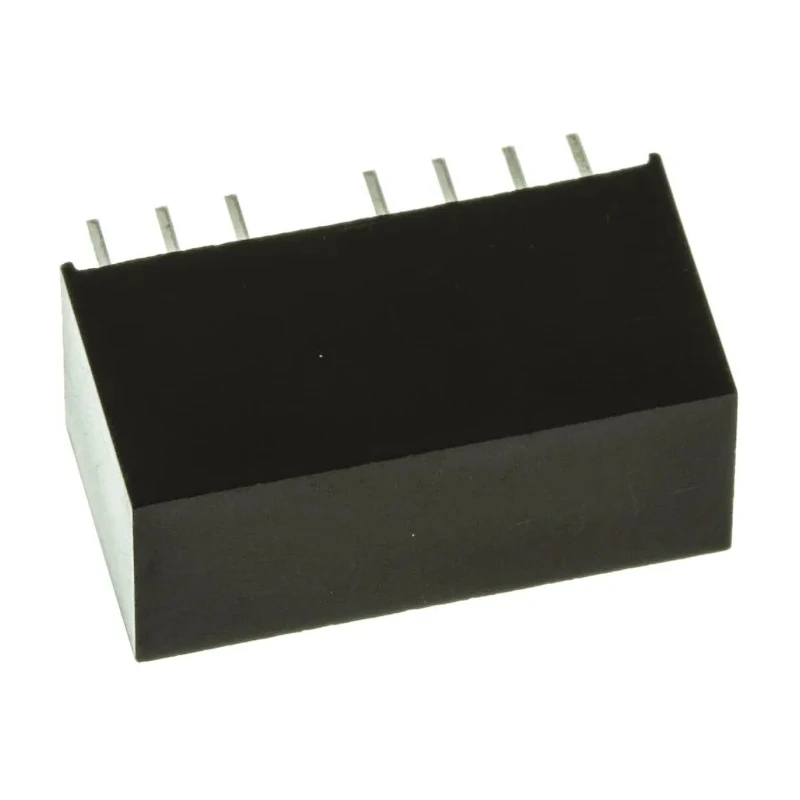

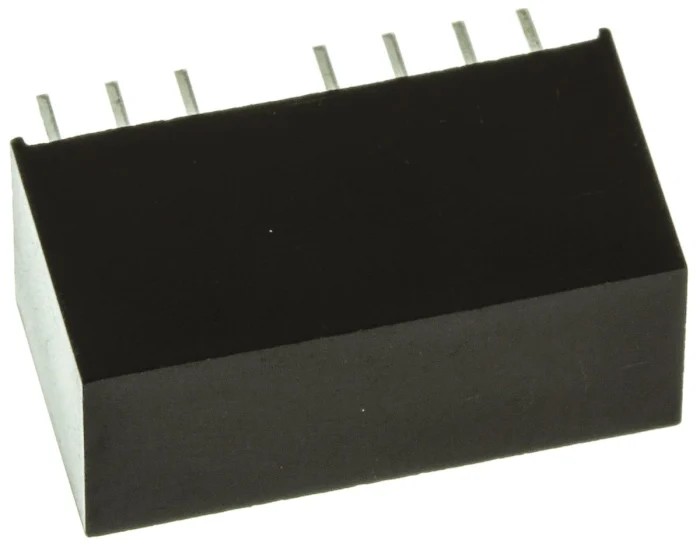

Recom Dual Output DC/DC Converter RS-2412DZ/H3 12V/-12V, 2W, 36V Max Input, Through Hole, SIP-8
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RS DC/DC Converter, 12V, -12 V/ 83 mA, 36V d |
| Brand | Recom |
| Efficiency | 81% |

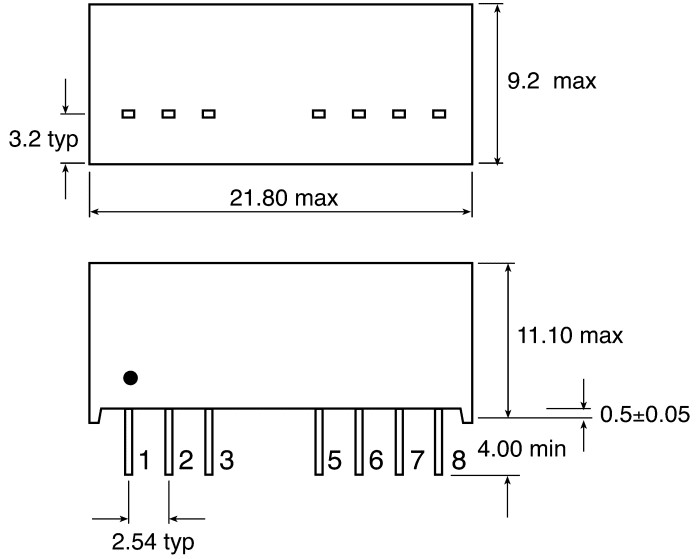

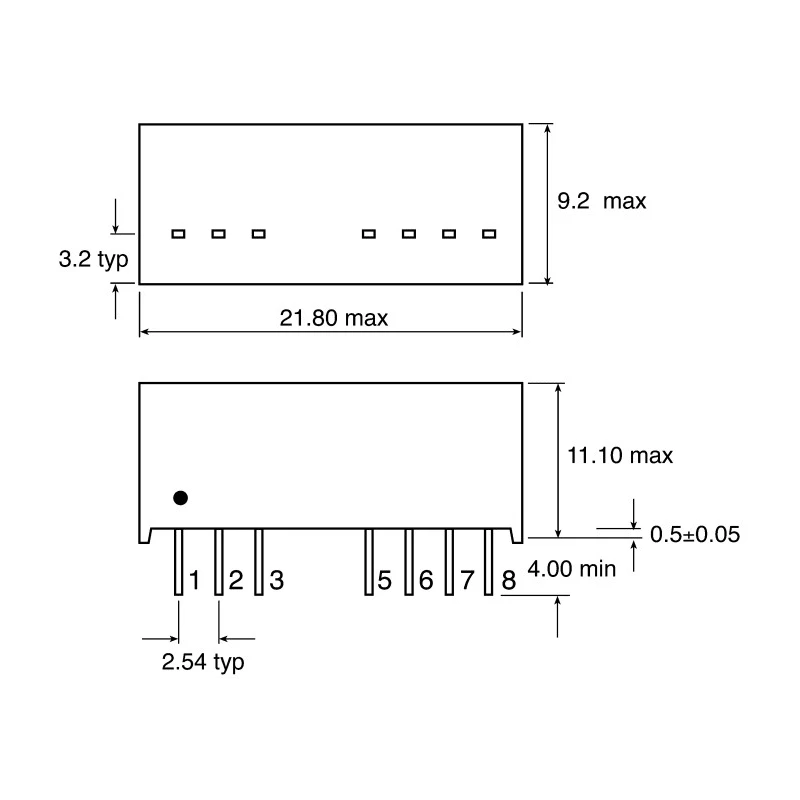

| Length | 21.8mm |
| Model | RS-2412DZ/H3 |
| Depth | 11.1mm |
| Mount Type | Through Hole |
| Series | RS |
| Maximum Operating Temperature | 75°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1398h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 36V dc |
| Short Circuit Protection | Continuous |
| Standards/Approvals | UL94V-0 |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 83mA |
| Isolation Voltage | 3kV dc |
| Input Ratio | 4:1 |
| Ultra-wide 4 | 1 input voltage range |
| Input Ratio4 | 1 |
Key Features
- Regulated dual output voltages of 12V and -12V for versatile circuit applications.
- Supports wide input voltage range from 9V to 36V DC for flexible integration in power supply designs.
- Output current up to 83mA per channel, catering to low-power electronics and signal circuitry.
- 2W maximum output power with high isolation voltage of 3kV DC for enhanced safety.
- SIP-8 package and through hole mounting simplify PCB assembly and ensure robust mechanical connection.
- Continuous short circuit protection and remote on/off control improve durability and system management.
- Operates effectively from -40°C to +75°C, suitable for industrial and laboratory environments.
- No external capacitor required, minimizing component count and design complexity.
Product Description
Recom RS-2412DZ/H3 is a high-performance DC/DC converter engineered for reliable, isolated power delivery in industrial, laboratory, instrumentation, and advanced electronics systems. This converter features regulated dual output voltages of 12V and -12V, supporting up to 83mA per channel, making it ideal for powering analog circuits, operational amplifiers, sensors, and signal conditioning modules.
The unit is designed with a wide input voltage range from 9V to 36V DC, accommodating diverse power sources and providing flexibility in system integration. With a total maximum output power of 2W, RS-2412DZ/H3 suits low-power embedded electronics and precise measurement equipment. Its SIP-8 (Single Inline Package) form factor and through hole mounting offer easy placement on PCBs, ensuring secure mechanical fixation and straightforward assembly for prototyping or volume production.
To deliver robust protection and signal integrity, the converter incorporates 3kV DC isolation voltage between input and output, safeguarding sensitive electronics from noise and voltage transients. Advanced features such as continuous short circuit protection and remote on/off control are included, enabling system-level fault tolerance and remote power management in complex installations.
The device operates reliably across a wide ambient temperature range, from -40°C up to +75°C, making it suitable for demanding environments requiring both high reliability and long lifetime. With an MTBF (Mean Time Between Failures) of 1398 hours (MIL-HDBK-217F, 25°C), users benefit from confidence in operational stability for mission-critical applications.
High efficiency of 81% ensures minimal energy loss, reducing thermal stresses on PCBs and components. As no external capacitor is required, board complexity is minimized. The UL94V-0 rated package material provides flame retardancy, supporting safety-critical applications. The SIP-8 package configuration with 8 pins enables easy integration into system architectures with multiple output requirements.
Typical use cases include precision measurement instruments, industrial control equipment, laboratory test systems, signal isolation for transmission lines, and embedded power conversion within communication devices or sensor modules.
For more DC-DC Converter solutions and technical products from Recom, browse the dedicated EnvMart categories.
