Omron PCB Power Relay DPST, 12V DC Coil, 5A Switching, Subminiature, G6B-2214P-US DC12

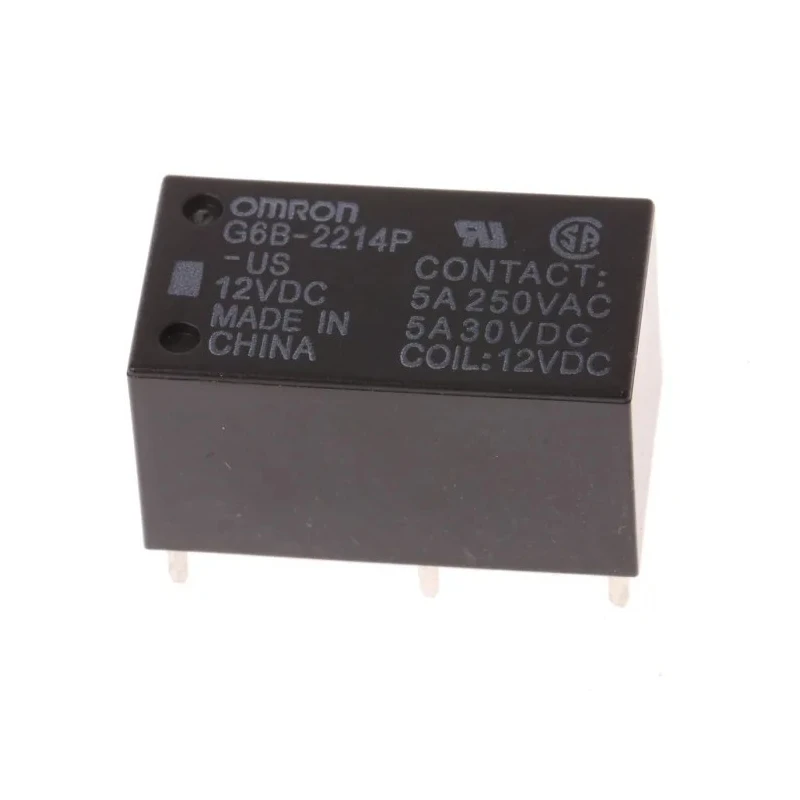

The Omron G6B-2214P-US DC12 is a high-quality PCB power relay designed for industrial, automation, and electronic control systems. This relay features a dual-pole (DPST) configuration, enabling simultaneous switching of two independent circuits. With a 12V DC coil voltage and 5A switching current capacity, it is suitable for a variety of low and medium power loads.

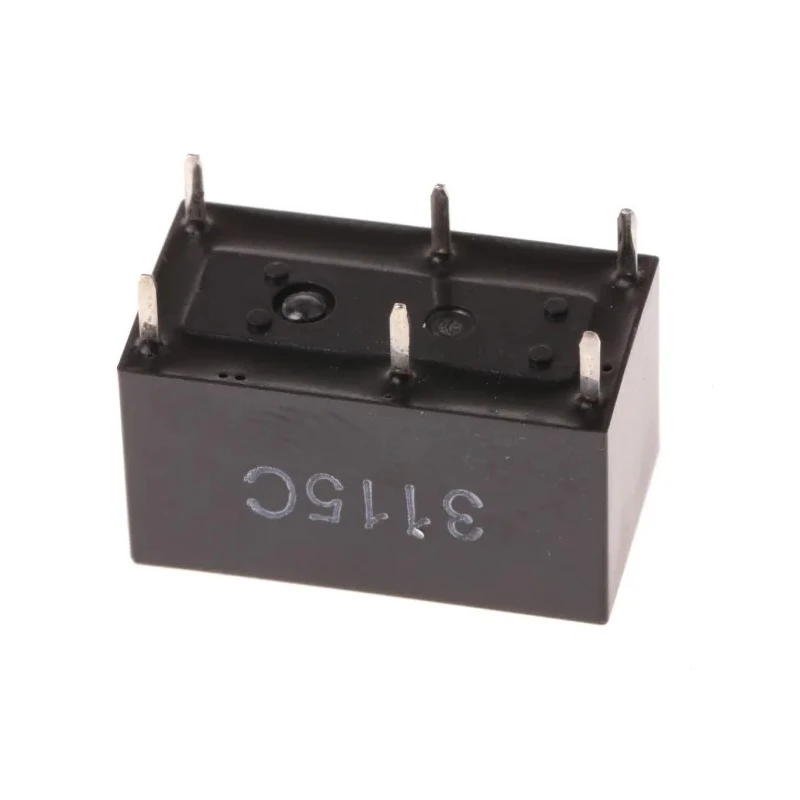

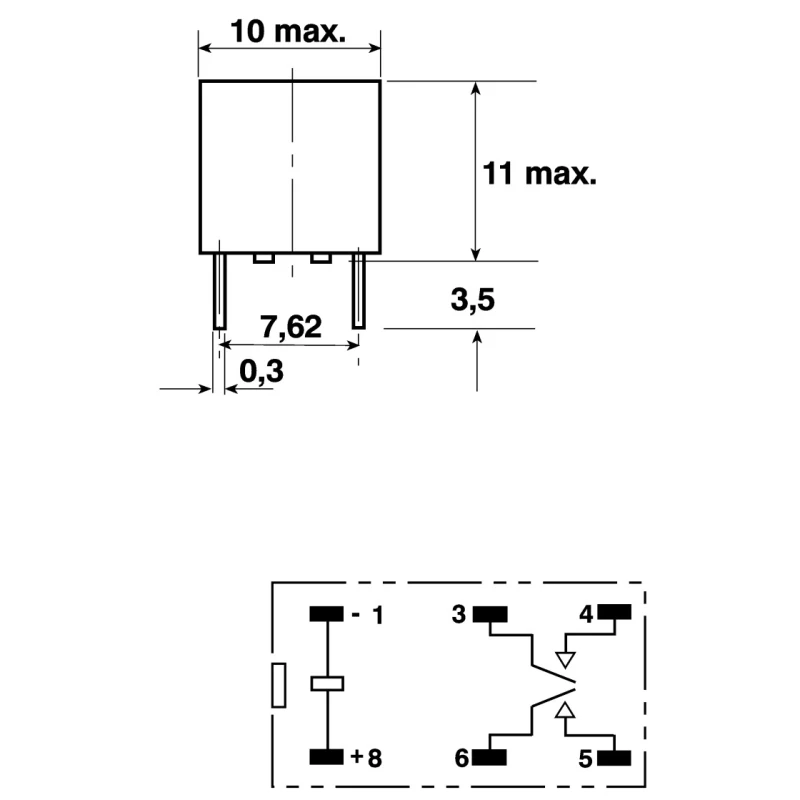

This relay belongs to the G6B series, known for its subminiature form factor measuring only 20 × 10 × 10 mm. Its compact dimensions make it ideal for space-constrained PCB layouts while still offering robust performance. The solder terminal mounting facilitates secure integration onto printed circuit boards.

Omron employs a unique moving loop armature design in the G6B series, reducing relay size, magnetic interference, and contact bounce time. The contacts are made from silver alloy to ensure reliable conductivity, low contact resistance (30 mΩ), and high durability. The relay is fully sealed, protecting internal components from dust and moisture, and suitable for environments with impulse voltages up to 6kV dielectric strength.

Additional technical specifications include coil power of just 200 mW for energy efficiency, coil resistance of 480 Ω, and operational switching voltages of up to 125V DC and 380V AC. The relay operates reliably in ambient temperatures between -25°C and 70°C, making it versatile for a broad array of applications. The contact material provides long-lasting switching performance and minimizes wear even during frequent operation.

Industrial applications include automation systems, manufacturing equipment, HVAC controls, laboratory instrumentation, and commercial electronics. The G6B-2214P-US DC12 relay is RoHS compliant and adheres to international quality standards. Solder terminals simplify the connection process and are suitable for mass production or rapid prototyping environments.

Rated coil voltage is 12V DC for efficient switching. DPST dual-pole configuration and 5A switching current capacity. Compact dimensions (20 × 10 × 10 mm) fit tight PCB layouts. Silver alloy contact material with low resistance and high durability.

Fully sealed design for enhanced reliability and moisture resistance. Low 200 mW coil power minimizes energy consumption. Impulse withstand voltage up to 6kV for robust operation in harsh environments. Wide operating temperature range from -25°C to 70°C.

Solder terminal for secure and easy PCB installation. RoHS compliant, meeting global industrial standards.

This power relay is an essential component for industrial, laboratory, automation, and commercial electronic control systems requiring dependable switching and compact design. Browse more Omron relays and industrial automation products in the Power Relay category at EnvMart.
