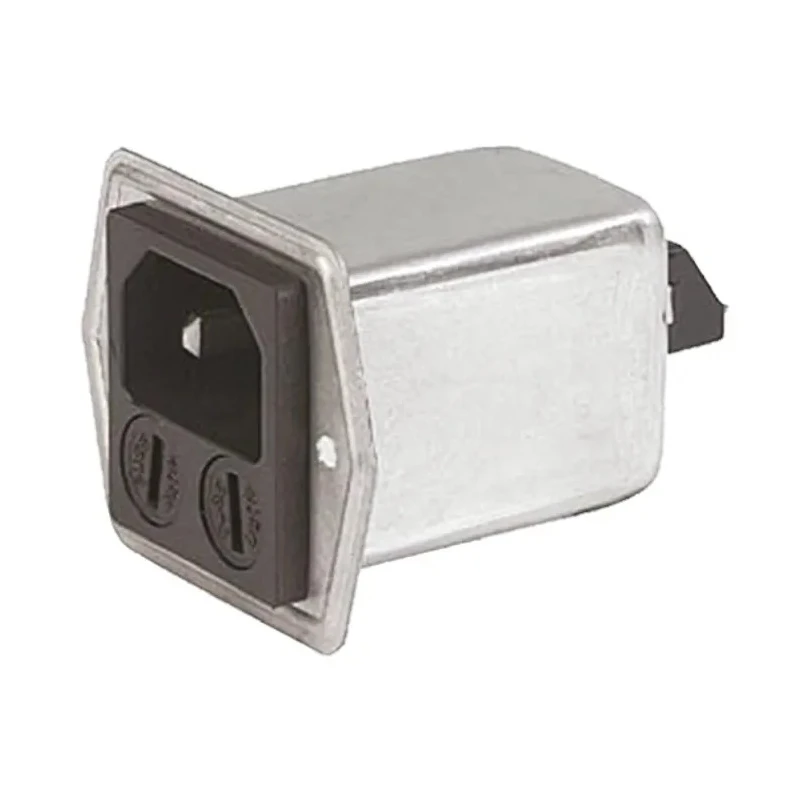

Schurter Panel Mount IEC Connector with Line Filter 250V AC 8A 2 Fuses Male Solder Termination 5707.0801.312

The Schurter 5707.0801.312 is a high-performance panel mount IEC connector designed for safe and reliable AC power delivery in demanding electronic, laboratory, and industrial applications. This component combines a C14 male inlet with a built-in line filter and accommodates two fuses, making it ideally suited for equipment that requires enhanced noise filtering and overcurrent protection within a compact footprint.

Engineered to support 250V AC operation at up to 8A, this connector provides dependable and efficient power transmission. Its panel mount architecture simplifies integration into instrument enclosures, power distribution boards, or custom electronics housings. Solder termination allows for a secure electrical connection, while the quick connect terminals (6.3 x 0.8 mm) ensure swift, reliable wiring during manufacturing or maintenance.

The integrated line filter is designed to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI), which is critical for environments requiring low noise and stable equipment operation. The dual screw-type fuse holders accept standard 5 x 20 mm fuses, delivering flexible circuit protection and easy fuse replacement without the need to remove the entire connector assembly.

This model features a robust, fully enclosed filter casing and IP65 protection specifications with mounting screws and sealing included, suitable for both front and rear panel attachment. With a temperature rating spanning from -25°C to 85°C and a 60 Hz frequency operating range, the 5707 series is built to withstand diverse operating conditions encountered in industrial automation, laboratory analysis systems, medical devices, and commercial electronics.

Thanks to its compact design and integral features, the Schurter 5707.0801.312 offers versatile AC power entry solutions, supporting efficient equipment certification and compliance with international standards for electrical panels and embedded systems. The C14 connector configuration is widely compatible across industrial, laboratory, and commercial equipment lines.

Typical applications include AC-powered laboratory instruments, industrial automation controllers, test and measurement systems, medical devices, and commercial power distribution assemblies where reliability, safety, and EMI suppression are essential.

Dimensions are 42 mm in height, 51 mm in width, and 59.6 mm in depth, allowing integration into tight spaces without sacrificing functionality. Its advanced design ensures ease of installation and service, making it a preferred choice for OEMs and integrators operating in a wide range of electrical and electronic sectors.
