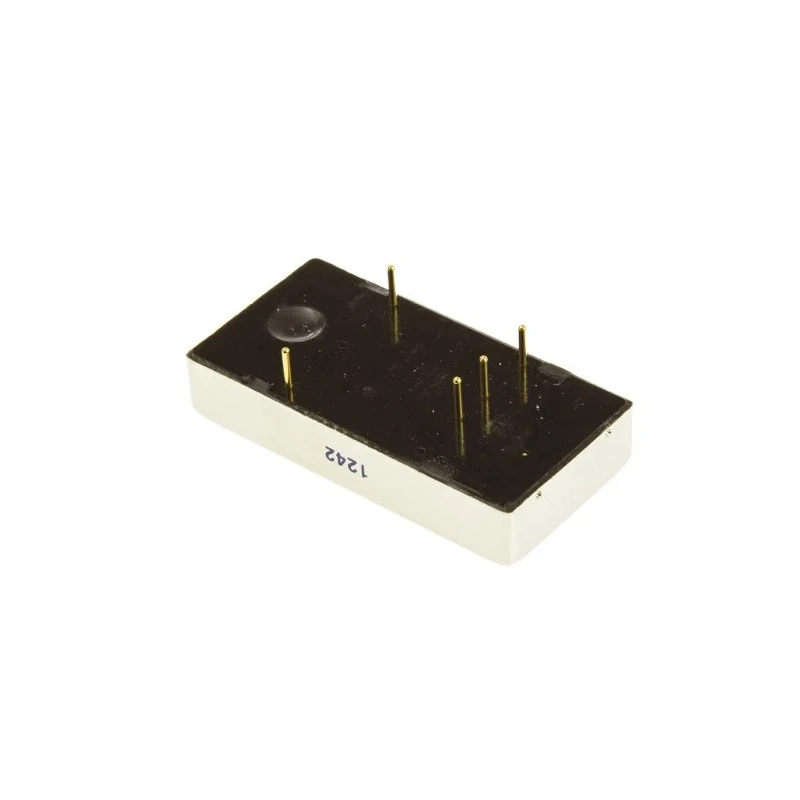

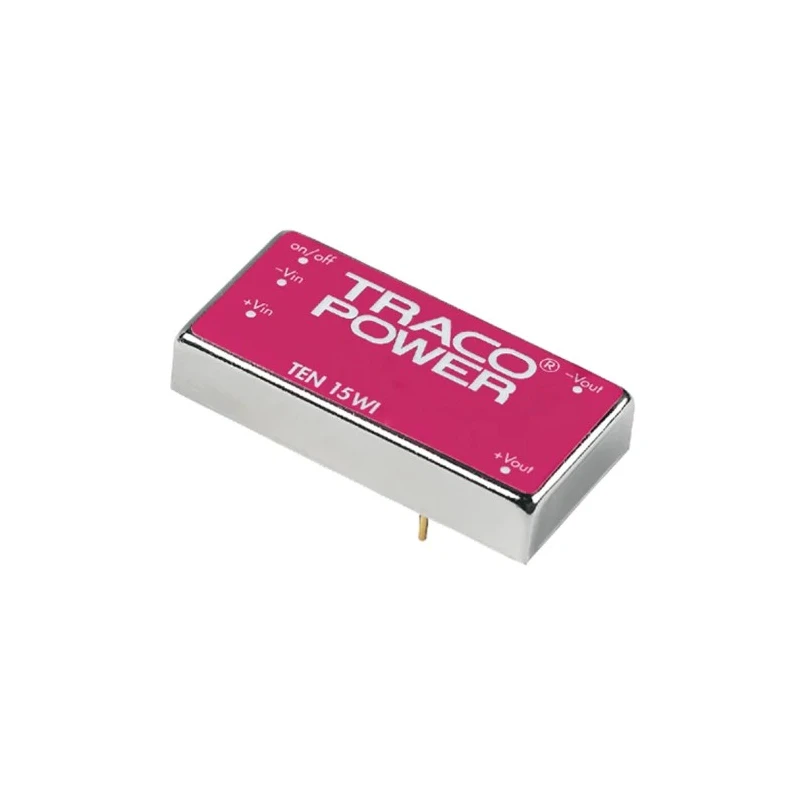

TRACOPOWER DC/DC Converter 15W, 5V DC Output, 3A, 18 - 36V DC Input, PCB Mount, Surface Mount, TEN 15-2411WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 15WI DC/DC Converter, 5V dc/ 3 A, 3 |
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 25.4mm |
| Model | TEN 15-2411WI |
| Depth | 10.2mm |
| Mount Type | PCB |
| Series | TEN 15WI |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 1 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Short Circuit Protection | Continuous |
| Minimum Input Voltage | 18V |
| Number of Pins | 5 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 3A |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Ultra-wide 4 | 1 input voltage range |
| Pin-out | Industry Standard |
Key Features
- DC/DC converter providing regulated 5V DC output at up to 3A.
- Wide input voltage range from 18V to 36V DC suitable for diverse applications.
- Maximum output power of 15W, enabling efficient operation for electronic systems.
- Surface mount metal package construction with ceramic chip capacitors for reliability.
- Operating temperature range from -40°C to 85°C for flexible deployment.
- Industry standard pin-out and continuous short circuit protection.
- Shielded metal case with insulated baseplate improves safety and EMI performance.
- Built-in filter compliant with EN 55022 Class A and FCC Level A without external components.
Product Description
The TRACOPOWER TEN 15-2411WI is a high-performance DC/DC converter designed for demanding industrial, communications, and battery-powered equipment applications. It supplies a regulated 5V DC output at up to 3A, with a wide input voltage range of 18V to 36V DC and maximum output power of 15W. The converter leverages a surface mount package, utilizing ceramic chip capacitors and a shielded metal case for superior reliability and robustness.
Its compact form factor (length 25.4mm, depth 10.2mm) enables direct PCB mounting, supporting automated production and efficient system integration. The converter's advanced design allows operation in extreme environments, with a temperature range from -40°C to 85°C. Industry standard pin-out and insulation features provide straightforward connectivity and safety compliance.
Continuous short circuit protection and remote On/Off control make the TEN 15-2411WI suitable for applications requiring high reliability and operational flexibility. It incorporates a built-in filter that meets EN 55022 Class A and FCC Level A, minimizing electromagnetic interference and eliminating the need for external filtering components in most installations.
Typical uses include communication systems, industrial controls, instrumentation, and battery-powered remote sensing equipment. With 1.5kV DC isolation voltage, the converter effectively protects sensitive electronics from electrical transients and cross-circuit shorts.
Efficiency up to 86% minimizes thermal buildup, further enhancing reliability during prolonged operation. The converter offers MTBF of 700000 hours, underscoring its suitability for mission-critical and high-availability deployments. Package contents include the surface mount module (TEN 15-2411WI) ready for PCB insertion and automated assembly.
Explore the full range of DC-DC Converters in the Electronics & Electricals category, including advanced TRACOPOWER solutions, on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC and can deliver a maximum output current of 3A.
The input voltage range for this converter is from 18V to 36V DC.
The maximum output power of the TEN 15-2411WI is 15W.
It operates within a temperature range of -40°C to 85°C, making it suitable for extreme environments.
This unit is designed for PCB mounting, utilizing a surface mount package.
Yes, it features continuous short circuit protection for enhanced safety during operation.
The isolation voltage for this converter is 1.5kV DC, which helps protect sensitive electronics.
The dimensions of this model are 25.4mm in length and 10.2mm in depth.
This model achieves an efficiency of up to 84%, which helps minimize thermal buildup.
It is suitable for demanding industrial, communications, and battery-powered equipment applications.
This unit has a single output.
It incorporates a built-in filter compliant with EN 55022 Class A and FCC Level A, reducing EMI without external components.
