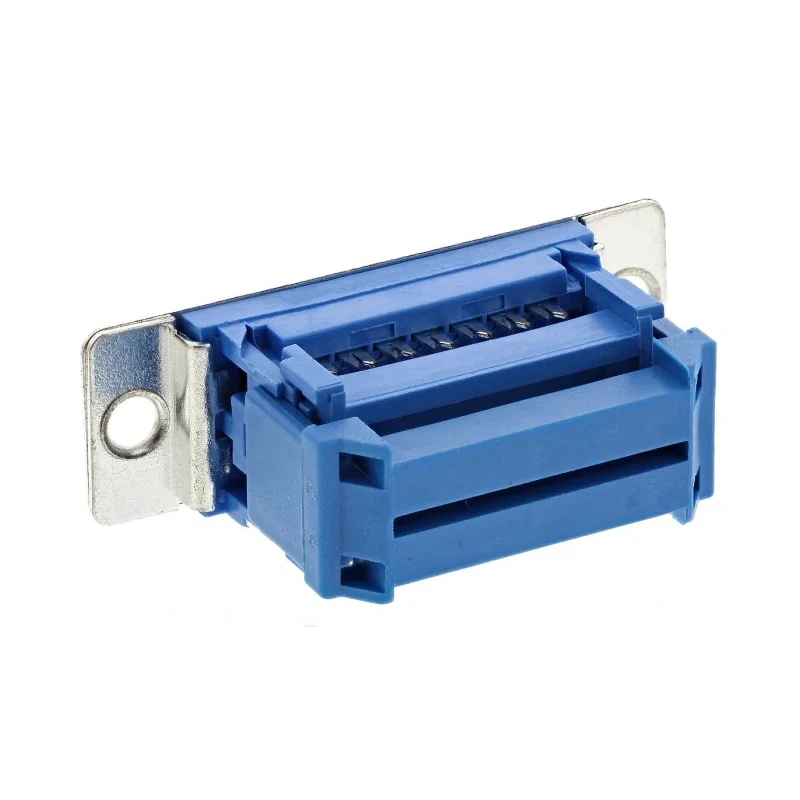

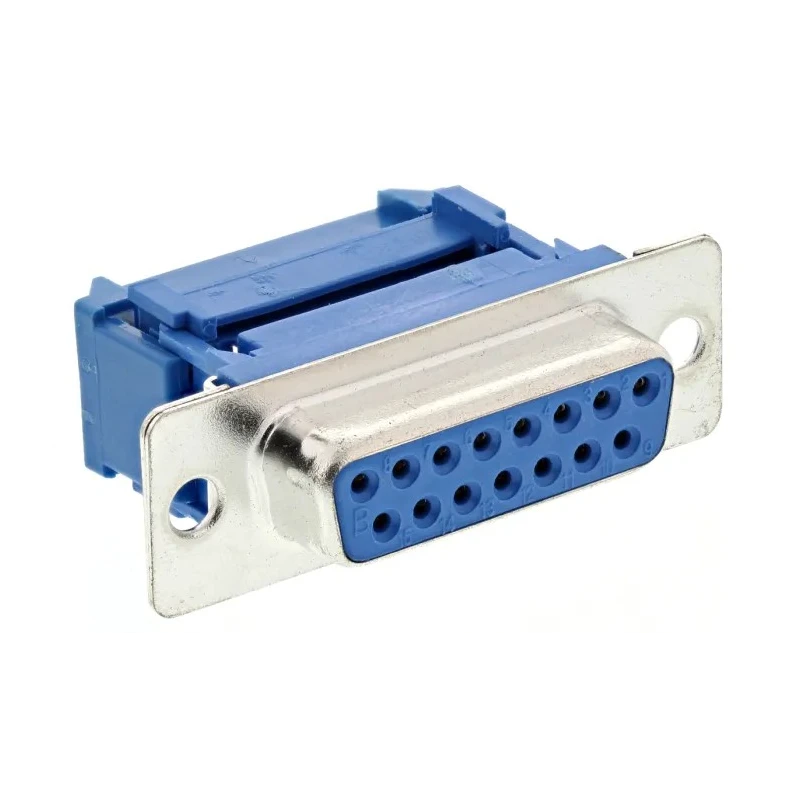

RS PRO 15 Way Straight Cable D-Sub Connector Female, 1.27 mm Pitch, 1A, Metal Shell, IDC, 250V 138-017
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 1A |
| Model | 138-017 |
| Mount Type | Cable |
| Housing Material | Metal |
| Contact Material | Copper Alloy |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 1.27mm |
| Contact Resistance | 15mΩ |
| Standards/Approvals | BS9523, MIL - C - 24308 |
| Contact Plating | Tin |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| RS PRO 15 Way Straight 1.27 mm Pitch Cable D-Sub Connector FemaleBrand | RS PRO |
| 15 Way IDC D-sub Connector, Socket, PET ShellBrand | NEUTRAL |
Key Features
- Features a straight female D-Sub connector for cable mounting applications.
- 15 contacts designed for high-speed mass termination using IDC technology.
- Metal housing offers excellent EMI/RFI shielding and durability.
- Supports up to 1A current per contact and 250V voltage rating.
- Pitch of 1.27 mm ideal for commercial ribbon cable assemblies.
- Copper alloy contacts with tin plating ensure reliable connectivity.
- Operating temperature range from -55°C to +105°C.
- Strain relief clamp integrated for secure cable retention.
Product Description
The RS PRO 138-017 is a precision-engineered 15 way straight D-Sub cable connector featuring a female interface and a standard 1.27 mm pitch. This connector is designed for commercial applications requiring robust connections between ribbon cables and electronic devices.
Its metal shell provides enhanced EMI and RFI shielding, ensuring signal integrity and long-lasting reliability in environments with significant electrical noise. The IDC (Insulation Displacement Connector) termination permits rapid, high-speed mass termination directly onto flat ribbon cable (26 - 28 AWG wire), making it optimal for large-scale assembly lines and electronic manufacturing.
Each of the 15 contacts is fabricated from copper alloy and finished with tin plating, delivering stable electrical performance with low contact resistance and corrosion resistance. The female connector supports up to 1A current per contact and withstands up to 250V, making it suitable for both data and power transmission within permitted ranges.
With an operating temperature range from -55°C to +105°C, the connector is suitable for demanding industrial, laboratory, computing, and telecom environments. The integrated strain relief clamp protects cables from mechanical stress, assuring consistent performance during installation and operation.
The RS PRO 138-017 complies with BS9523 and MIL - C - 24308 standards for connector size and structure, offering compatibility with a wide range of industrial equipment and instrumentation.
Applications include commercial electronics, industrial control systems, laboratory instrumentation, telecom networking, and computer interface wiring. Explore more industrial and electronic connectors in the RS PRO collection via EnvMart’s Electronics Components category.
Explore more products in our D-Sub Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of 250V.
It supports up to 1A current per contact.
The pitch of this D-Sub connector is 1.27 mm.
This model uses IDC (Insulation Displacement Connector) termination.
The contacts are made from copper alloy and finished with tin plating.
It operates within a temperature range of -55°C to +105°C.
It complies with BS9523 and MIL - C - 24308 standards.
This model features 15 contacts.
It has a metal housing which provides excellent EMI/RFI shielding.
It is suitable for commercial electronics, industrial control systems, laboratory instrumentation, telecom networking, and computer interface wiring.
Yes, it includes an integrated strain relief clamp for secure cable retention.
The connector features a straight orientation.
