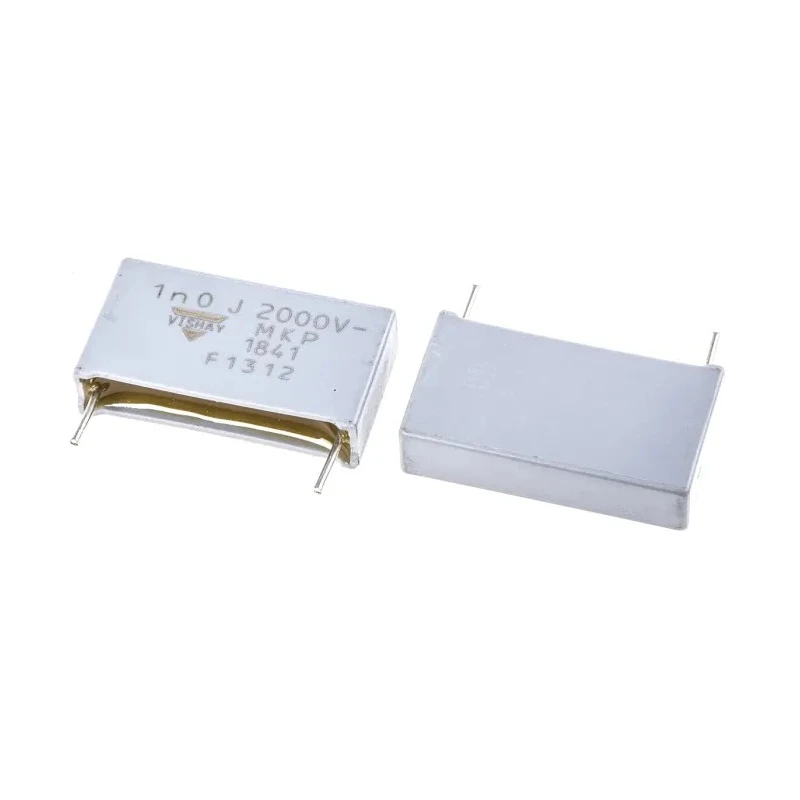

Vishay MKP1841 Film Capacitor 1nF 2kV DC 700V AC ±5% Through Hole

Vishay MKP1841210204 Film Capacitor combines advanced polypropylene film construction with robust safety features, offering a 1nF capacitance and supporting high voltages of up to 2kV DC and 700V AC. Designed for through-hole mounting, this capacitor is engineered to deliver stable performance in pulse circuits, snubber circuits, protection circuits, and applications demanding high voltage and current capacities.

The ±5% tolerance assures precise and reproducible results across various electronic designs, especially on demanding industrial, laboratory, and commercial platforms. The capacitor is fully encapsulated in a flame retardant plastic case rated UL 94V-0, featuring an epoxy resin seal that enhances durability and safe operation under extreme conditions.

Its 22.5mm lead pitch and 0.8mm lead diameter facilitate convenient integration into printed circuit boards (PCBs), optimizing electrical connectivity and mechanical robustness. With a temperature range from -55°C to 100°C, the MKP1841210204 is suitable for environments with wide thermal fluctuation, supporting reliability in industrial automation, control systems, and power electronics.

Typical applications include electronic ballasts, high current and high pulse operations, deflection circuits in television and display systems, and protection in high voltage setups. The component adheres to IEC 60384-16 standards, ensuring industry-required performance and safety.

Vishay's MKP1841 Series is recognized for quality, used in snubber, high voltage, and protection circuit applications, delivering robust and dependable electronic performance for engineers and designers seeking reliability and precision in critical systems.

Features a capacitance of 1nF for precision electronic circuit applications. Operates at high voltage levels up to 2kV DC and 700V AC for demanding environments. Through-hole design enables reliable and robust PCB installations.

±5% tolerance ensures consistent and accurate performance in pulse and snubber circuits. Encapsulated in flame retardant plastic case compliant to UL 94V-0, with epoxy resin seal for safety. Ideal for high current, high voltage, and protection circuit applications, including electronic ballasts and pulse operations.

Lead pitch of 22.5mm and terminal lead diameter of 0.8mm provide easy integration into various electronic assemblies. Operates reliably within a temperature range from -55°C to 100°C, suitable for industrial and demanding environments.
