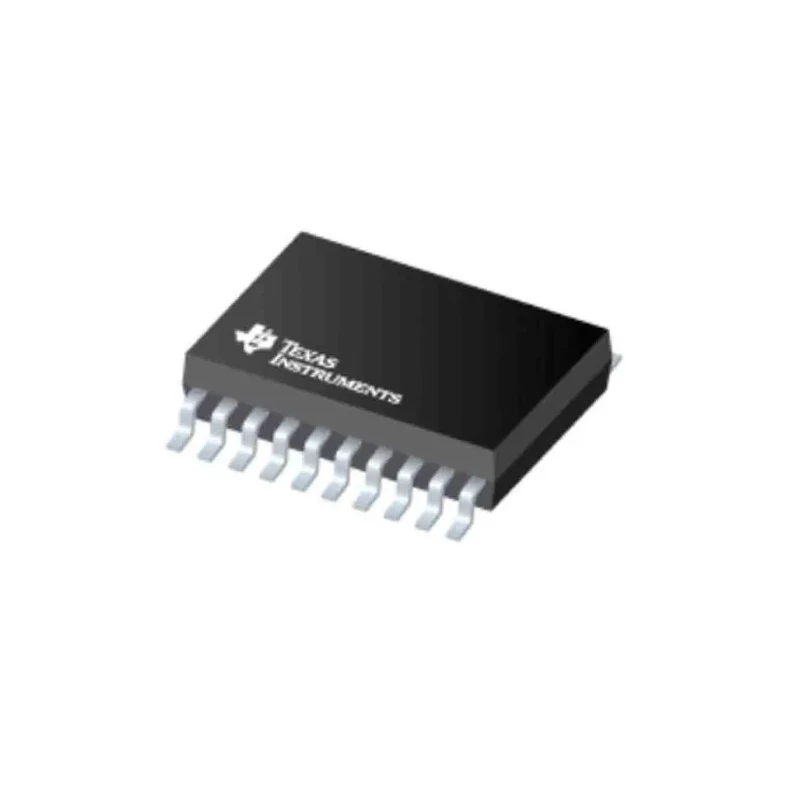

Texas Instruments ADS1247IPW 24-Bit Delta-Sigma ADC 2 ksps, 4 Channel, SPI Interface, 20-Pin TSSOP
Specifications
| Country of Origin | Malaysia |
|---|---|
| Resolution | 24 bit |
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 4.5mm |
| Model | ADS1247IPW |
| Mount Type | Surface |
| Sampling rate | 2ksps |
| Series | ADS1247 |
| Input Type | Differential |
| Maximum Operating Temperature | 105°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | Delta Sigma |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 2.7V |
| Number of ADCs | 4 |
Key Features
- Provides 24-bit resolution for highly accurate data conversion.
- Includes 4 ADC channels for multi-signal input capability.
- Delta-Sigma architecture ensures stable and low-noise measurements.
- Operates at a maximum sampling rate of 2 ksps, suitable for various applications.
- Features SPI interface for flexible integration into digital systems.
- Supports differential input type and surface mount installation.
- Wide operating voltage range from 2.7 V to 5.25 V.
- Works reliably within a -40°C to 105°C temperature range.
Product Description
The Texas Instruments ADS1247IPW is a high-performance, 24-bit delta-sigma analogue-to-digital converter (ADC) designed for demanding industrial and measurement applications. Built for precision and versatility, this ADC can process signals from multiple input channels with high accuracy and low noise. Its reliable delta-sigma architecture supports sophisticated measurement needs, such as laboratory instrumentation and industrial process monitoring.
The device provides four ADC channels, allowing for simultaneous acquisition of multiple analogue inputs. Its SPI interface simplifies system integration and communication with microcontrollers or processors, while the differential input type ensures robust data capture even in electrically noisy environments.
The ADS1247IPW operates in a wide voltage range from 2.7 V to 5.25 V, making it adaptable for different power supply arrangements in embedded systems. With a sampling rate up to 2 ksps, it is suitable for real-time monitoring tasks, offering excellent performance in dynamic and steady state data acquisition applications.
Encapsulated in a compact 20-pin TSSOP package, the converter is ideal for space-constrained circuit boards and supports surface mount technology. Its operating temperature range of -40°C to 105°C ensures reliable data conversion across harsh industrial and laboratory environments.
The ADS1247IPW is used in high-precision measurement systems, instrumentation, sensor interfaces, data logging, process control, and other commercial or scientific applications requiring accurate signal conversion. Its features and specifications make it an excellent choice for engineers developing high-reliability data conversion circuits.
Discover the full range of Texas Instruments ADCs in the Semiconductor category at EnvMart for advanced industrial, laboratory, and scientific solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ADS1247IPW provides a resolution of 24 bits for highly accurate data conversion.
This model features four ADC channels, allowing for the simultaneous acquisition of multiple analogue inputs.
It operates at a maximum sampling rate of 2 ksps, suitable for various real-time monitoring tasks.
The device supports a differential input type, ensuring robust data capture even in electrically noisy environments.
The ADS1247IPW operates within a voltage range of 2.7 V to 5.25 V, making it adaptable for different power supply arrangements.
It operates reliably within a temperature range of -40°C to 105°C, suitable for harsh industrial and laboratory environments.
This model is encapsulated in a compact 20-pin TSSOP package, ideal for space-constrained circuit boards.
It features an SPI interface, which simplifies integration with microcontrollers or processors.
The device employs a delta-sigma architecture, which ensures stable and low-noise measurements.
The height of this model is 1.2 mm.
It is used in high-precision measurement systems, instrumentation, sensor interfaces, data logging, and process control.
The country of origin for the ADS1247IPW is Malaysia.
