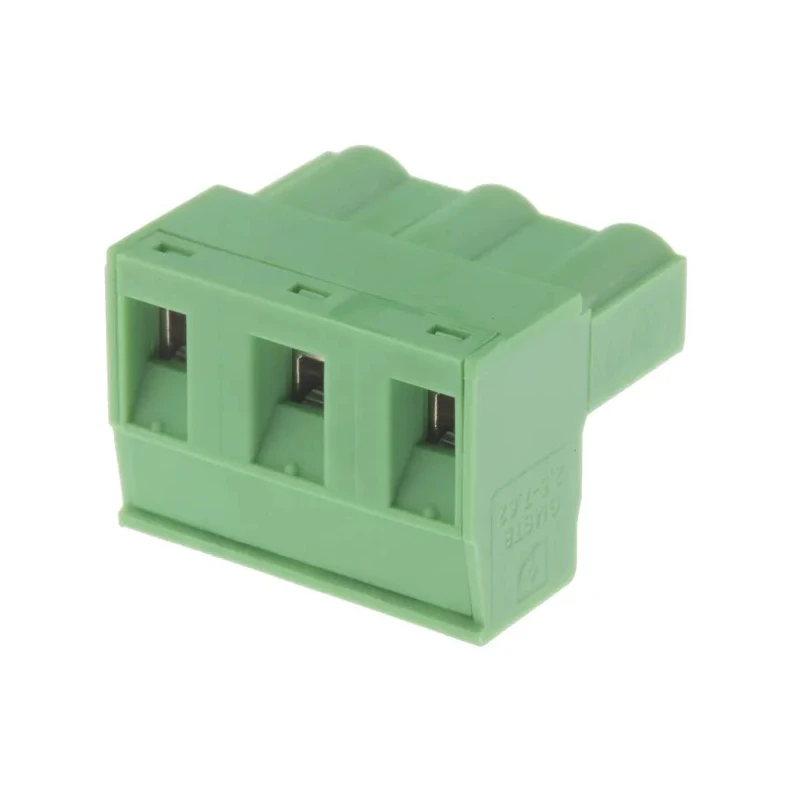

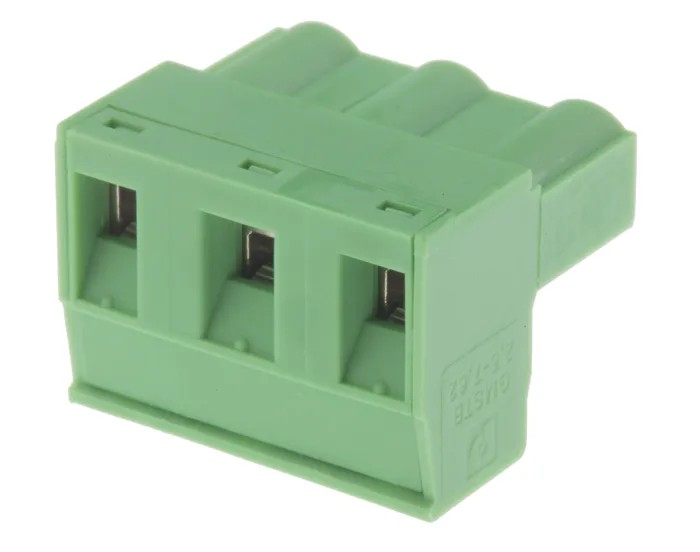

Phoenix Contact CLASSIC COMBICON GMSTB Series Pluggable Terminal Block, 7.62mm Pitch, 3-Contact, 1 Row, Green, Screw 1767012

Phoenix Contact’s 1767012 CLASSIC COMBICON GMSTB Series Pluggable Terminal Block is engineered for precise PCB cable-mount applications, offering robust electrical connectivity through its 7.62mm pitch and three-contact design. The terminal block is designed for fast, secure power and data transmission directly to printed circuit boards, catering to requirements in industrial controls, automation, and electronics manufacturing.

This terminal block employs a screw-type wire connection method that allows for easy installation and reliable retention of conductors. The wide acceptance range accommodates wire cross-sections from 0.2mm² up to 2.5mm² and supports AWG wiring standards from 24 to 12. This configuration permits a maximum current load of 12A and a voltage rating of up to 400V, making it suitable for demanding electronic circuits and industrial environments.

The body orientation is straight, enabling efficient PCB packing and vertical wiring approaches. With a green color finish, the block allows straightforward visual identification on PCB layouts. Manufactured from high-quality nylon, the terminal block provides robust mechanical stability, and compliance with RoHS and UL94 V-0 fire safety standards ensures its suitability for a wide range of applications. The tin-plated connectors guarantee excellent conductivity and corrosion resistance.

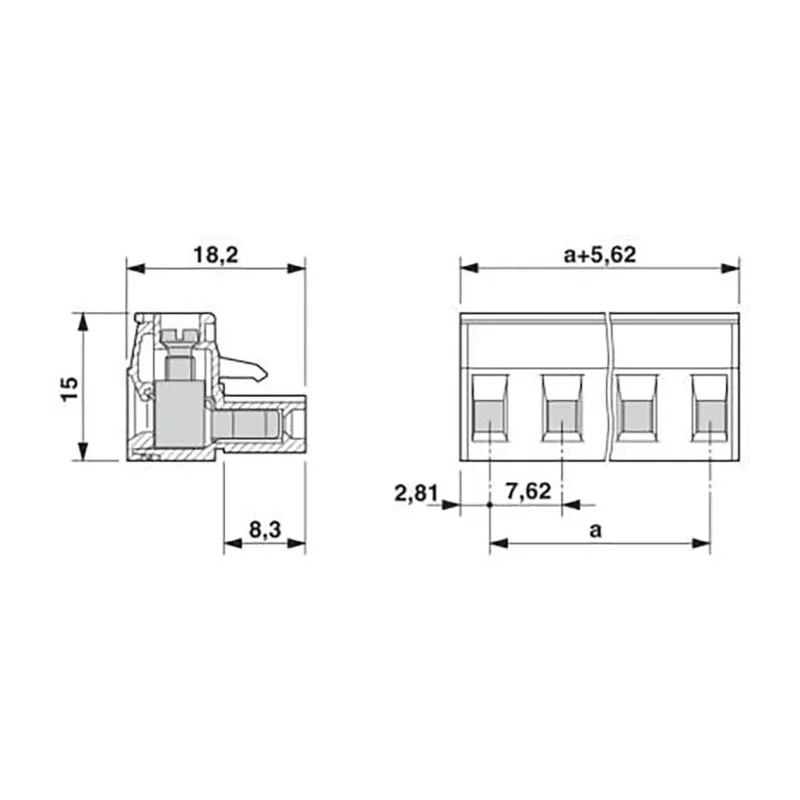

Additional design advantages include a spring-loaded screw terminal mechanism for secure wire placement and a screwable flange for improved mechanical retention. The large connection contact area minimizes temperature rise during operation, and the female connector gender suits standard PCB design conventions. The terminal block’s dimensions (20.86mm length, 18.2mm width, 15mm depth) allow for compact mounting while maintaining spacing requirements for high-voltage circuits.

These features make the Phoenix Contact 1767012 an ideal solution for applications such as board-to-board communication, data acquisition, programming, rapid prototyping, and industrial electronics assembly. The product’s reliable connection principle and international compliance facilitate use in diverse electronic equipment around the globe.

Explore more Phoenix Contact PCB terminal blocks and pluggable connector solutions in the PCB Terminal Block category to match your specific installation and assembly requirements.
