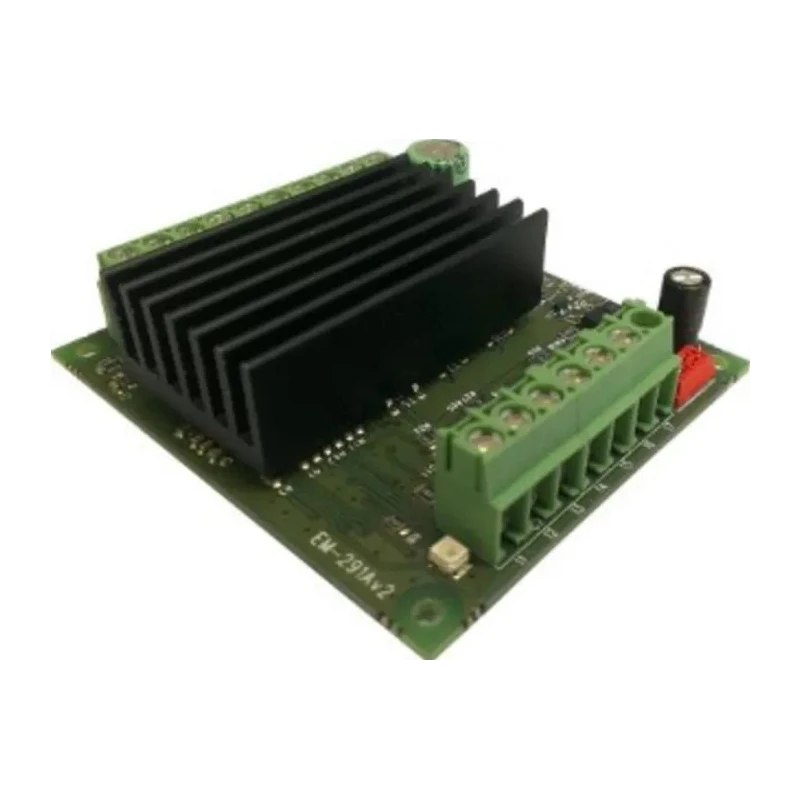

Electromen OY DC Motor Controller 11V - 35V DC, 3 Phase, 4A, PWM Function, Brushless Motor Driver, EM-291A
Specifications
| Country of Origin | Finland |
|---|---|
| Brand | Electromen OY |
| Model | EM-291A |
| Overall Length | 72mm |
| Current Rating | 4A |
| Overall Width | 65mm |
| Number of Phases | 3 |
| Output Voltage | 35V dc |
| Supply Voltage | 11, 35V dc |
| Standards/Approvals | EN - 55022B |
| Overall Depth | 20mm |
| Control Function | PWM |
Key Features
- Advanced brushless DC motor driver for hall sensor feedback motors.
- Supports input voltage range from 11V to 35V DC for versatile applications.
- Three phase output with MOSFET power stage for high efficiency.
- Includes both open loop and closed loop speed control modes.
- Control options feature analog speed input, digital direction, start/stop inputs, and filtered PWM control.
- Continuous current rating of 2A, with 3A peak, and up to 4A maximum.
- DIN-rail mountable compact enclosure for industrial panel integration.
- Fault and overcurrent indication output with LED status display.
Product Description
Electromen OY EM-291A is a robust brushless DC motor controller designed for industrial automation tasks requiring reliable and precise motor control. Operating at 11V to 35V DC, it offers a three phase output with MOSFET power stage for high efficiency, suited for motors equipped with hall sensor feedback.
The controller supports both direct (open loop) and closed loop speed regulation; open loop mode sets motor voltage proportional to the control voltage like classic DC motors, while closed loop mode leverages hall sensor feedback for tight speed regulation, making it ideal for precise applications. Start and stop ramps enhance smooth motor operation in both modes.
Basic digital command inputs include direction, start/stop, and analog speed input. The analog input is digitally filtered so that PLC-generated PWM signals can be used, allowing seamless integration with factory automation platforms.
The EM-291A features fault and overcurrent indication with one NPN output and on-board LED for easy diagnostics. Indication output functions can be parameterized, and all settings are stored in nonvolatile memory. Setting parameters is possible using an EM-236 interface, Emen-Tool lite PC software with EM-268 adapter, or iPhone with Ementool-APP and EM-326 adapter.
With its DIN-rail mountable compact enclosure (72mm length, 65mm width, 20mm depth), the controller fits easily in control cabinets, supporting continuous current operation at 2A and peak current at 3A, up to maximum 4A. Low EMC emissions and compliance with EN 55022B make it suitable for demanding industrial, robotics, and laboratory environments.
Use cases include industrial automation, robotic platforms, machine tools, conveyor systems, laboratory motion control, and any application requiring high-performance brushless DC motor control. Electromen OY’s advanced controller ensures safety, reliability, and flexible integration options for modern industry.
Browse more industrial motor controllers and brushless DC solutions in the EnvMart Motor Controllers category and discover Electromen OY’s full range for your automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Electromen OY EM-291A operates within a voltage range of 11V to 35V DC.
This motor controller has a continuous current rating of 2A, with a peak current of 3A and a maximum current of 4A.
The EM-291A features a DIN-rail mountable compact enclosure, making it suitable for integration into control cabinets.
It is designed for brushless DC motors equipped with hall sensor feedback, suitable for various industrial applications.
The controller supports PWM control, analog speed input, and digital inputs for direction and start/stop functions.
The overall dimensions of this model are 72mm in length, 65mm in width, and 20mm in depth.
The EM-291A complies with EN 55022B standards, ensuring low electromagnetic emissions.
Yes, it is suitable for industrial automation, robotic platforms, machine tools, and conveyor systems.
The closed loop mode utilizes hall sensor feedback for precise speed regulation of the motor.
It includes fault and overcurrent indication output with an LED status display for easy diagnostics.
Parameters can be set using an EM-236 interface, Emen-Tool lite PC software with an EM-268 adapter, or an iPhone with the Ementool-APP and EM-326 adapter.
The EM-291A can output up to 35V DC.
