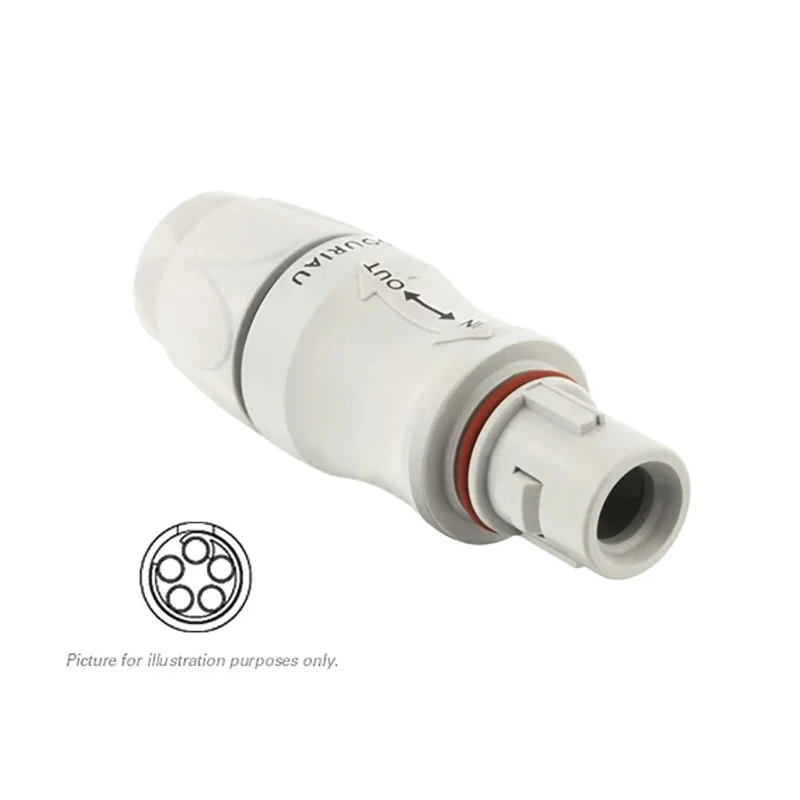

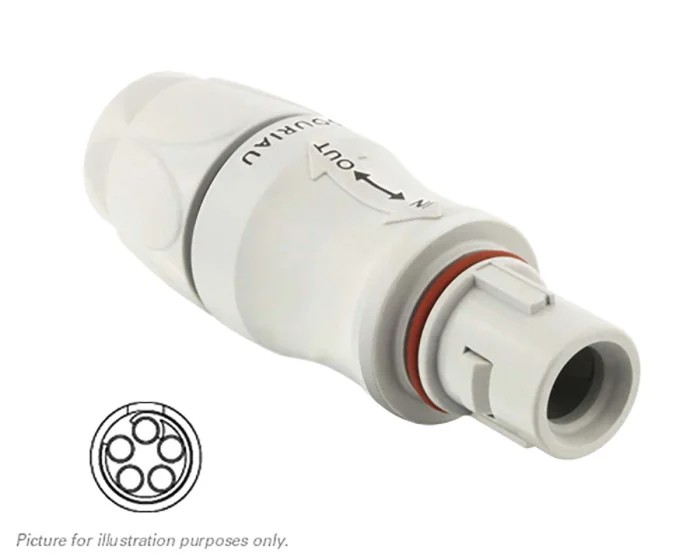

Souriau Sunbank by Eaton Circular Connector, 5 Contacts, Cable Mount, Plug, Male, IP68, 230V, 10A, Polymer, JMXFH1G05MCUDSU

Souriau Sunbank by Eaton JMXFH1G05MCUDSU is a high-performance industrial circular connector engineered for robust electrical interfacing of cables. This connector features 5 contacts, each gold-plated for superior signal reliability, and is designed for cable mounting with a plug configuration and male contact gender. It supports a current rating up to 10A and voltage up to 230V, making it ideal for a wide range of industrial, commercial, and medical applications where secure and reliable connections are essential.

The JMXFH1G05MCUDSU connector is equipped with an IP68 rating, ensuring it is fully waterproof and suitable for use in harsh environmental conditions, including outdoor and wet facilities. The polymer housing enhances durability and protects the internal contacts, while crimp termination offers a strong mechanical hold to the cable. The connector's straight orientation and push-pull mating type enable ergonomic and instinctive installation, reducing assembly time and effort.

A rubber gland between the cable and plug further guarantees the integrity of the sealing, supporting traceability and quality. The design incorporates keying and color identification (Coding G), helping users avoid accidental mating errors and ensuring correct cable-to-device connections. Operating temperature ranges from minus 40°C to plus 125°C, allowing versatility across a wide range of environments and scenarios.

The JMX series is renowned for reinforced traceability, with date codes on plugs and receptacles for lifecycle management. This connector is attractive in medical equipment and demanding industries due to its appealing ergonomic design, worldwide support network, and technical flexibility. The gold-plated brass contacts deliver consistent electrical performance, and the plug's robust construction withstands autoclave processes, making it ideal for safety-critical applications.

Typical use cases for the JMXFH1G05MCUDSU include industrial machinery, laboratory devices, medical equipment, automation systems, and water treatment installations. Its flexibility, ruggedness, and reliable sealing make it an excellent choice for engineers and integrators seeking quality and dependability.

Connector features 5 gold-plated contacts for reliable signal transmission. Plug type with male contact gender and cable mounting orientation for straightforward installation. Rated for up to 10A current and 230V voltage, suitable for demanding environments.

IP68 protection ensures waterproof operation with robust polymer housing. Crimp termination for secure cable connection and enhanced mechanical strength. Operates across wide temperatures from minus 40°C to plus 125°C for industrial versatility.

Push-pull mating type and straight orientation for ergonomic usability. JMX series offers reinforced traceability and flexibility for medical, industrial, and commercial use. Coding type G for keying and color identification reduces accidental mating errors.
