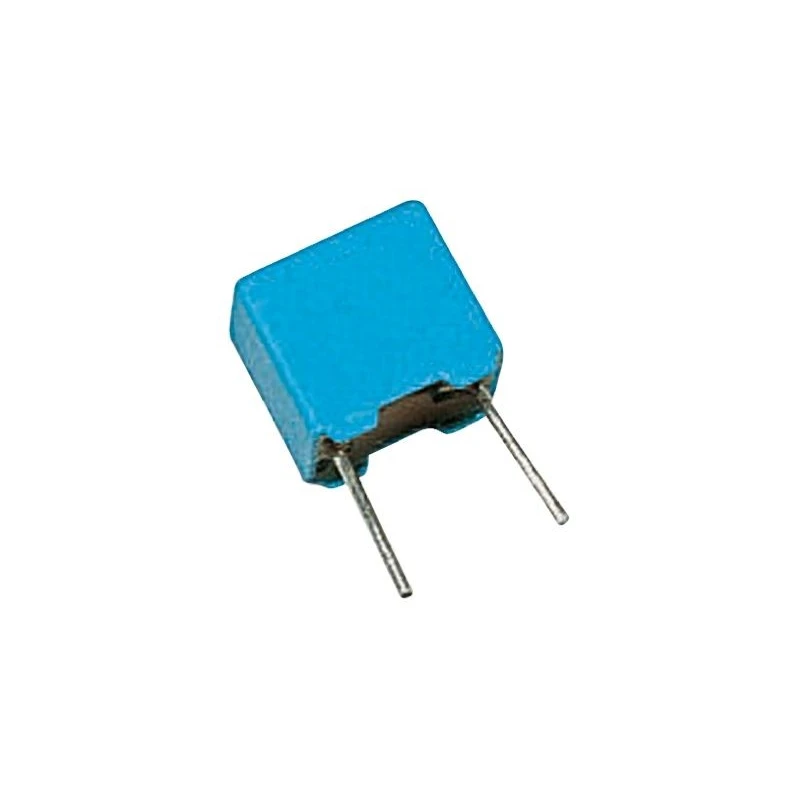

Vishay KP 1830 Film Capacitor 1 nF, 630 V DC, 250 V AC, Through Hole ±1% KP1830210631
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6mm |
| Length | 7.2mm |
| Model | KP1830210631 |
| Packaging | Bulk |
| Width | 4.5mm |
| Mount Type | Through Hole |
| Series | KP 1830 |
| Maximum Operating Temperature | 100°C |
| Tolerance | ±1 % |
| Capacitance | 1nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Lead Length | 6mm |
| Standards/Approvals | IEC 60384-13 |
| Package/Case | Plastic |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 117-814Brand: VishayManufacturers Part No.: KP1830210631 |
| Pin Count | 2 |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 5mm |
| Lead Diameter | 0.5mm |
| Applications include | oscillators for LC/RC circuits and filters, high frequency coupling and decoupling for analogue and digital circuits |
Key Features
- Offers a 1 nF nominal capacitance with ±1% tolerance for precise high frequency applications.
- Rated for operation up to 630 V DC and 250 V AC, suitable for circuits requiring wide voltage range.
- Through-hole mounting with a plastic case and epoxy resin seal ensures robust performance.
- Lead pitch of 5 mm and lead length of 6 mm enables easy PCB integration.
- Operating temperature ranges from -55°C to 100°C for reliable usage in various environments.
- Solder terminals and 2-pin configuration simplify installation.
- Complies with IEC 60384-13 and UL 94-V0 flame retardancy standards.
- Ideal for high frequency coupling, oscillator, timing, and filtering circuits.
Product Description
Vishay KP1830210631 is a high-quality film capacitor designed for demanding electronic applications. With a nominal capacitance of 1 nF and ±1% tolerance, it provides accurate and stable performance in high frequency coupling, oscillator, and timing circuits. Encapsulated in a self-extinguishing plastic case that conforms to UL 94-V0, this capacitor is well-suited for environments requiring enhanced safety and reliability.
The capacitor features a rated DC voltage of 630 V and an AC voltage capability of 250 V, making it versatile for analog and digital circuitry. Its through-hole mounting supports robust mechanical stability while solder terminals and a lead pitch of 5 mm aid in straightforward PCB integration. The device operates in a temperature range from -55°C to 100°C, ensuring consistent performance even in varying thermal conditions. With two pins and a lead length of 6 mm, installation is both simple and secure.
Construction includes a flame retardant plastic case with epoxy resin seal for lasting durability. The capacitor meets IEC 60384-13 approval standards and adheres to CECC 31 801 and DIN 41 380, part 4, for quality and reliability. Its compact form (7.2 mm length, 4.5 mm width, 6 mm height) makes it suitable for space-constrained designs.
Applications extend to oscillators for LC/RC circuits, filters, high-frequency coupling and decoupling for analog and digital circuits. This model is widely used in industrial, laboratory, and commercial electronics.
For further exploration of Vishay passive components and Capacitors, browse the Capacitators category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay KP 1830 Film Capacitor has a nominal capacitance of 1 nF with a tolerance of ±1%.
It is rated for operation up to 630 V DC and 250 V AC, making it suitable for a wide range of circuits.
This model operates within a temperature range of -55°C to 100°C, ensuring reliable performance in various environments.
The capacitor measures 7.2 mm in length, 4.5 mm in width, and 6 mm in height.
It features a through-hole mounting design, which provides robust mechanical stability for PCB integration.
It has solder terminals, which simplify the installation process.
It is ideal for high frequency coupling, oscillators, timing, and filtering circuits in both analog and digital applications.
The lead pitch is 5 mm and the lead length is 6 mm, facilitating easy integration into circuits.
It complies with IEC 60384-13 and has a UL 94-V0 flame retardancy rating for enhanced safety.
The capacitor is encapsulated in a plastic case with an epoxy resin seal, providing durability and safety.
This model features a 2-pin configuration, making it straightforward to connect in circuits.
The country of origin for this capacitor is India.
