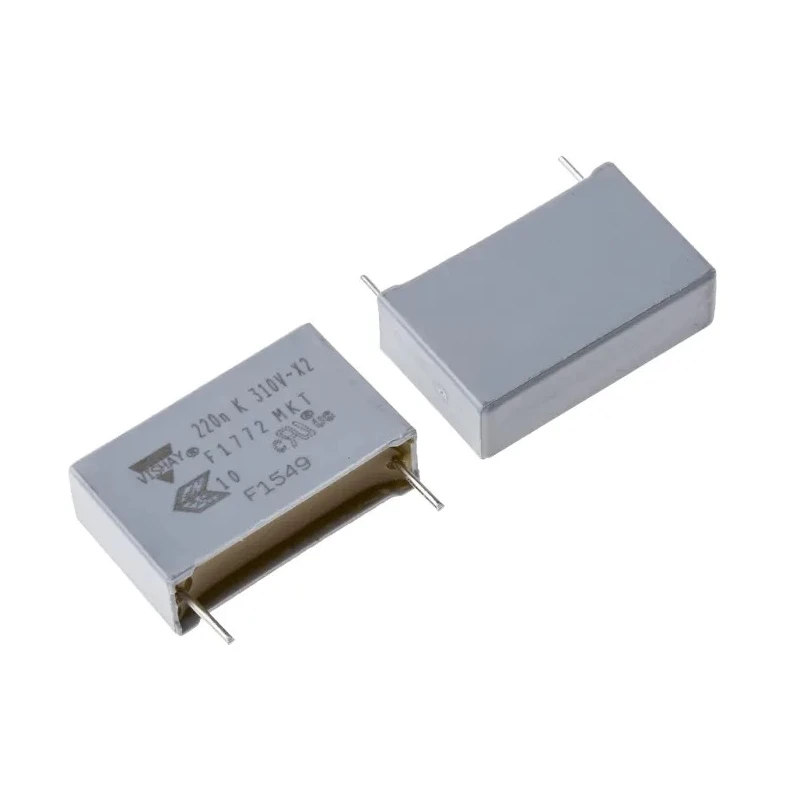

Vishay Film Capacitor 220nF 310V AC/DC Through Hole F17724222000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 16.3mm |
| Length | 26.3mm |
| Model | F17724222000 |
| Width | 8.3mm |
| Mount Type | Through Hole |
| Series | F1772 |
| Maximum Operating Temperature | 110°C |
| Capacitance | 220nF |
| Rated AC Voltage | 310V ac |
| Rated DC Voltage | 310V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
| KEMET PHE840 Film Capacitor, ±20 %, 220 nF 760 V dc 280V ac, Through HoleBrand | KEMET |
Key Features
- 220nF capacitance ensures precise filtering performance.
- Rated for up to 310V AC/DC operation, suitable for industrial and commercial circuits.
- Through hole mounting provides robust mechanical stability in PCB designs.
- Metallised film construction delivers high reliability and electrical performance.
- Lead pitch of 22.5mm facilitates secure connections and compatibility with standard layouts.
- X2 suppression class, ideal for interference suppression between phases or phase and neutral.
- Epoxy resin sealed flame retardant case enhances safety and longevity.
- Maximum operating temperature up to 110°C, supporting demanding environments.
Product Description
Vishay F17724222000 is a high-quality film capacitor featuring a 220nF capacitance and rated for 310V AC and 310V DC operation. Designed for through hole mounting, it is ideally suited for industrial, commercial, and electronic circuit applications requiring reliable interference suppression and electrical filtering.
Constructed with metallised film technology, the capacitor ensures efficient filtering and suppression of electromagnetic interference (EMI). Its X2 suppression class rating makes it perfect for installation between phases or between phase and neutral in AC power systems.
The device's robust epoxy resin-sealed, flame-retardant case enhances safety, preventing fire risk in demanding operational environments. With a lead pitch of 22.5mm, the capacitor integrates easily into standard PCB layouts, providing flexibility for circuit designers.
Operating at temperatures up to 110°C, the capacitor maintains consistent performance in high-temperature industrial and power applications. Approvals from UL, IEC, EN, and CSA guarantee compliance with international standards, reflecting its dependable quality and safety profile.

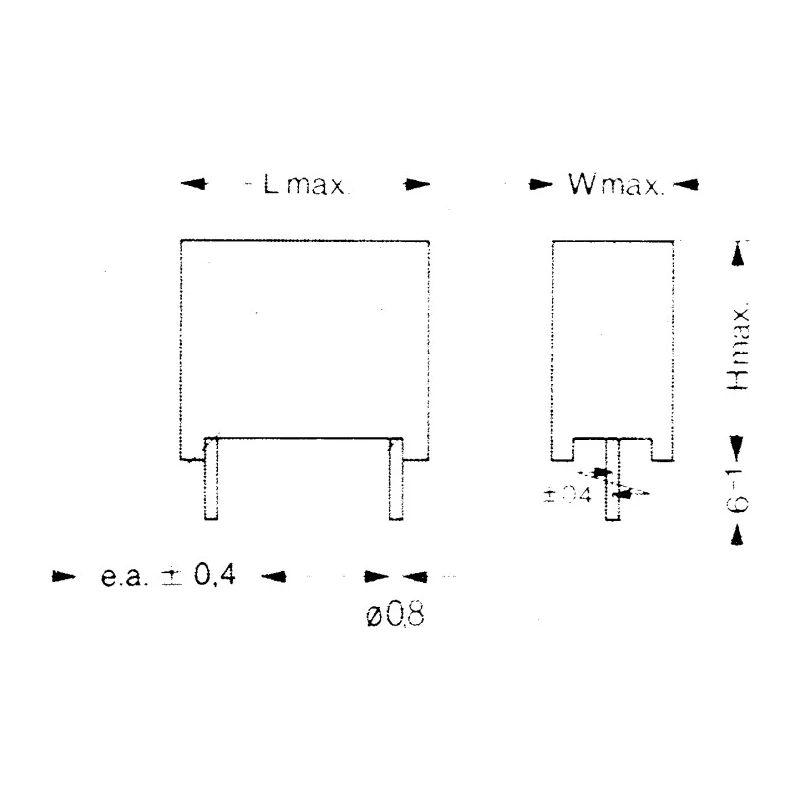

Featuring a compact footprint with dimensions of 26.3mm (length), 8.3mm (width), and 16.3mm (height), and a lead diameter of 0.8mm, the Vishay F17724222000 delivers an optimal balance between physical size and electrical capability.
Applications include power supplies, motor drives, lighting systems, and general-purpose electronic equipment where EMI suppression and durability are essential. This capacitor supports automotive standard AEC-Q200, making it suitable for automotive electronics and industrial controls.
For engineers and designers seeking reliable electrical performance, the Vishay F17724222000 is a top choice for both new builds and replacement needs in diverse technical environments. Browse more film Capacitors and Vishay products within the EnvMart industrial electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay F17724222000 has a capacitance of 220nF.
This model can operate at a maximum temperature of 110°C.
The dimensions are 26.3mm in length, 8.3mm in width, and 16.3mm in height.
It features through hole mounting, providing robust mechanical stability in PCB designs.
The capacitor is rated for 310V AC and 310V DC operation.
The lead pitch is 22.5mm, which facilitates secure connections and compatibility with standard layouts.
It has an X2 suppression class rating, making it suitable for interference suppression between phases or phase and neutral.
It has approvals from UL, IEC, EN, and CSA, ensuring compliance with international standards.
It is suitable for power supplies, motor drives, lighting systems, and general-purpose electronic equipment where EMI suppression is essential.
The lead diameter is 0.8mm, which is compatible with standard PCB layouts.
Yes, it supports the automotive standard AEC-Q200, making it suitable for automotive electronics and industrial controls.
It is constructed with metallised film technology, ensuring efficient filtering and suppression of electromagnetic interference (EMI).
