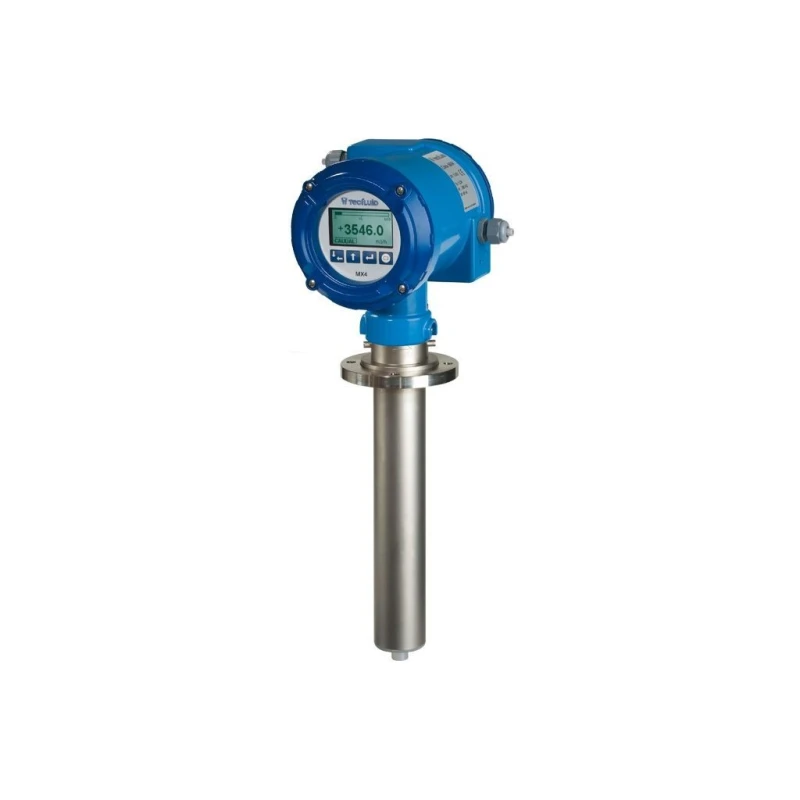

Brass Electromagnetic Flowmeter

Name: Brass Electromagnetic Flowmeter
Brand: Potence
SKU: AAKWQ
Price: 0.78 USD
Availability: InStock



SKU AAKWQ Category Flow Meter Brand Potence Condition New

Specifications

Accuracy	+ 3\|5%
Material	Brass
Type	Electromagnetic
Applications	Water
Pressure Rating	PN16
Application Media	Water
Liquid Conductivity	Greater Than 20 S / cm

Key Features

The Flomat electromagnetic insertion flowmeter consists of a sensor which generates a magnetic field in the liquid to be measured. The conductive liquids, as they flow through the magnetic field (5), generate a voltage E6 (6) between the electrodes (3) which is proportional to the liquid velocity (V7). The generated voltage is processed by the microprocessor electronic circuit to give outputs of mA or Hz proportional to the flow rate Q(8). Q8 = K . V7 . E6

Product Description

Flow meters is latest state-of-art microprocessor based electromagnetic type, having flanged connections with integral sensor, transmitter, processor & indicator suitable for measurement of water flow. Water contains silt and sand particles. Meters are lined with Polyurethane (PU) liners. GPRS router have communication capabilities of different protocol with RS 485 device and console serial part should support 11 bit serial device data for data acquisition from piezometer to control server. Mobile operator provide independent static IP address for M2M gateway at our own server Automatic re-establishment of communication in case of temporary failure of wireless link. In built security mechanism to prevent unauthorized enter to the system. The meter data transfer unit is battery operated manufactured as per ISO 4064: 2014 Standards and shall have IP 68 ingress protection. accuracy better than or equal to 2%. Test/calibration certificate of the meter, from NABL approved lab for every meter. The meter shall transmit the following parameter in secure cloudLarge Diameter pipes or open channels as an economical solution for liquidMeasuring range: 2 m3/h 113000 m3/h H2OAccuracy: =3,5%Connections: DN40 DN2000TF or DIN flange2 BSP ThreadedMaterials: Body: EN 1.4404 (SS 316L), PVDFSensor head: PVDFElectrodes: Hastelloy C, EN 1.4404, Zr, Ti y Tantalum

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The measuring range of the Brass Electromagnetic Flowmeter is from 2 m³/h to 113,000 m³/h of water.

The accuracy of this flowmeter is better than or equal to ±3.5%.

It supports DN40 to DN2000 TF or DIN flange connections, as well as 2 BSP threaded connections.

The body is made of EN 1.4404 (SS 316L) brass, while the sensor head is made of PVDF and the electrodes are available in Hastelloy C, EN 1.4404, Zr, Ti, and Tantalum.

The pressure rating of this model is PN16.

It is designed for measuring water, specifically conductive liquids with a conductivity greater than 20 S/cm.

This flowmeter has an ingress protection rating of IP 68.

Each meter comes with a test/calibration certificate from an NABL approved lab.

The flowmeter requires a liquid conductivity greater than 20 S/cm for accurate measurement.

It utilizes electromagnetic technology to measure flow by generating a magnetic field in the liquid.

This model is suitable for applications involving the measurement of water flow, particularly in large diameter pipes or open channels.
