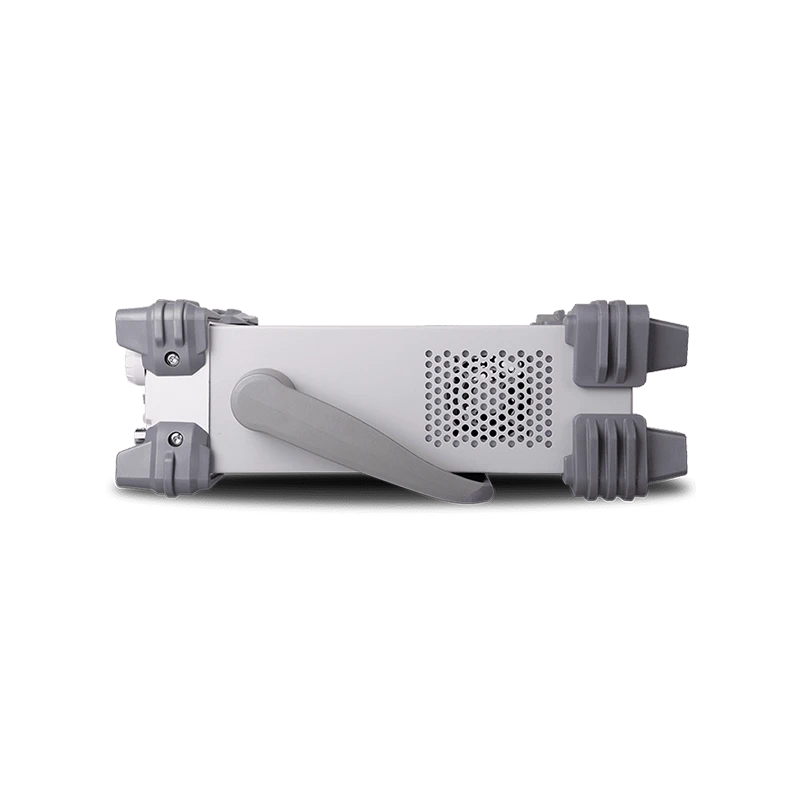

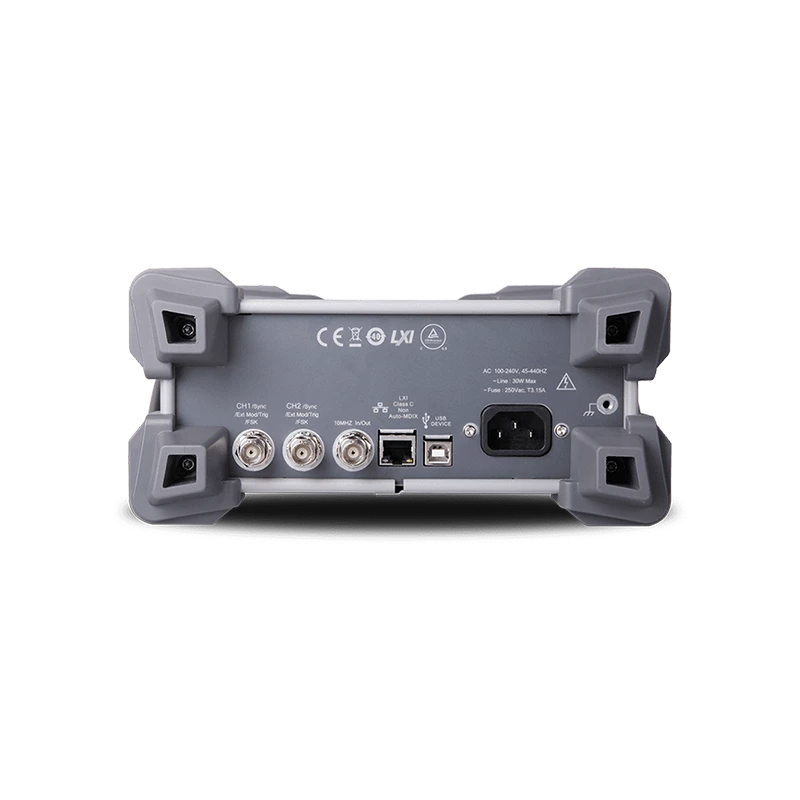

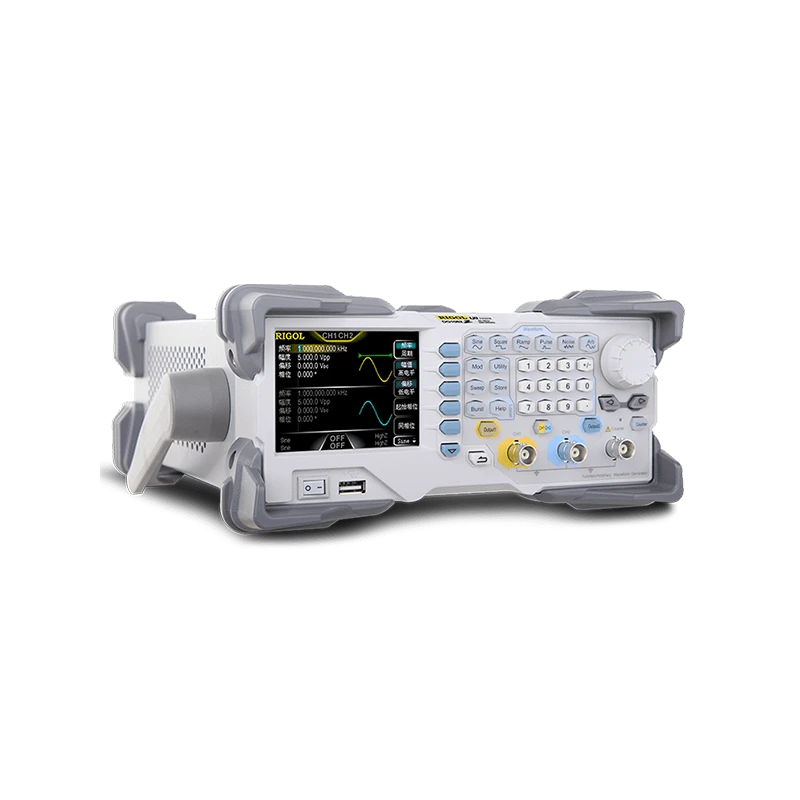

RIGOL Function/Arbitrary Waveform Generator DG1000Z Series
Model
Max Sample Rate
Max Output Frequency
Vertical Resolution
Number of Channels
Arbitrary Waveform Length
Specifications
| Country of Origin | India |
|---|---|
| Display | 3.5-inch TFT LCD (320×240) |
| Warranty | Recommended calibration interval: 1 year |
| Condition | New |
| Brand | Rigol |
| Power Supply | 100 V to 240 V, 45 Hz to 440 Hz |
| Interface | USB Host, USB Device, LAN |
| Dimensions | 261.5 × 112 × 318.4 mm |
| Model | DG1000Z |
| Weight | 3.2 kg |
| Sample Rate | 200 MSa/s |
| Harmonic distortion | Less than 0.075% (10 Hz to 20 kHz) |
| Channels | 2 |
| Frequency Stability | ±1 ppm |
| Vertical Resolution | 14 Bits |
| Frequency Counter | Built-in, up to 200 MHz |
| Amplitude Range | 1 mVpp to 10 Vpp (≤10 MHz), 1 mVpp to 2.5 Vpp (≤60 MHz) |
| MPN | DG1000Z |
| Phase Noise | -125 dBc/Hz at 10 MHz, 10 kHz offset |
| Modulation Types | AM, FM, PM, ASK, FSK, PSK, PWM |
| Waveform Memory | 2 Mpts or 8 Mpts standard, 16 Mpts optional (per channel) |
| Architecture | Dual Channel |
| SiFi Technology | Yes (Signal Fidelity, 100% waveform replication) |
| Output Frequency Range (Sine) | 1 μHz to 25/30/60 MHz (model dependent) |
Key Features
Rigol DG1000Z Series Dual Channel Function/Arbitrary Waveform Generator offers versatile signal generation for advanced laboratory and R&D applications.
- SiFi technology for 100% accurate waveform replication.
- Dual independent output channels with up to 60 MHz frequency (model dependent).
- 200 MSa/s sample rate and 14-bit vertical resolution enabling high signal fidelity.
- Supports standard and arbitrary waveforms, with 160 built-in types.
- Comprehensive analog and digital modulation capabilities including AM, FM, FSK, PM, ASK, PWM.
- Advanced sweep and burst functions for flexible signal testing.
- Integrated 200 MHz frequency counter for measurement convenience.
- Offers low phase noise (-125 dBc/Hz @10 MHz, 10 kHz offset) and total harmonic distortion below 0.075%.
- USB Host/Device and LAN interfaces for broad connectivity and integration.
- LXI-compliant design with a compact 3.5-inch TFT LCD display.
Product Description
Rigol DG1000Z Series Dual Channel Function/Arbitrary Waveform Generator is an advanced and versatile test instrument designed for laboratories, R&D, industrial, manufacturing, and educational environments. Leveraging innovative SiFi (Signal Fidelity) technology, it delivers 100% waveform replication with precision, supporting multiple functions including function generation, arbitrary waveform generation, noise, pulse, harmonic, analog/digital modulation, sweep, burst, and frequency counting up to 200 MHz. The generator provides dual, independent output channels capable of a maximum frequency of 60 MHz (model dependent), 200 MSa/s sampling, 14-bit vertical resolution, and a large waveform memory (up to 16 Mpts optional).
- SiFi technology for high-accuracy arbitrary waveform generation to simulate real-world signals.
- Dual channel output, with easy phase alignment and adjustment for complex signal requirements.
- Broad waveform selection, including sine, square, ramp, pulse, noise, and 160 built-in arbitrary waveforms.
- Comprehensive analog and digital modulations: AM, FM, PM, ASK, FSK, PSK, PWM.
- Sweep (linear, log, step) and burst (count or infinite) modes for advanced test scenarios.
- High amplitude accuracy, flatness, automatic short-circuit protection, and low jitter for reliable measurements.
- 3.5-inch TFT LCD (320 × 240) for user-friendly operation and visual clarity.
- USB Host/Device and LAN interfaces for seamless instrument automation or remote control.
- Compliant with LXI standards for integration into system test environments.
- Physical dimension: 261.5 × 112 × 318.4 mm; weight (approx.): 3.2 kg.
Ideal for use in electrical/electronics labs, industrial signal simulation, R&D testing, educational demonstrations, and automated industrial and production setups. The set includes the generator unit and interface cables as per the model selection.
Browse more Rigol or Function Generators in the Measuring & Testing Instruments category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DG1000Z can output frequencies up to 60 MHz, depending on the model.
The sample rate of the Rigol DG1000Z is 200 MSa/s, allowing for high signal fidelity.
Yes, it supports both standard and arbitrary waveforms, with 160 built-in types.
The Rigol DG1000Z supports various modulation types including AM, FM, PM, ASK, FSK, PSK, and PWM.
The dimensions are 261.5 × 112 × 318.4 mm, and it weighs approximately 3.2 kg.
The recommended calibration interval is 1 year, which can serve as a guideline for warranty considerations.
It features USB Host, USB Device, and LAN interfaces for broad connectivity and integration.
The phase noise is -125 dBc/Hz at 10 MHz with a 10 kHz offset, ensuring low noise performance.
The vertical resolution is 14 bits, which contributes to high signal fidelity.
You can browse more Rigol products or directly contact us through our website for inquiries or to make a purchase.
