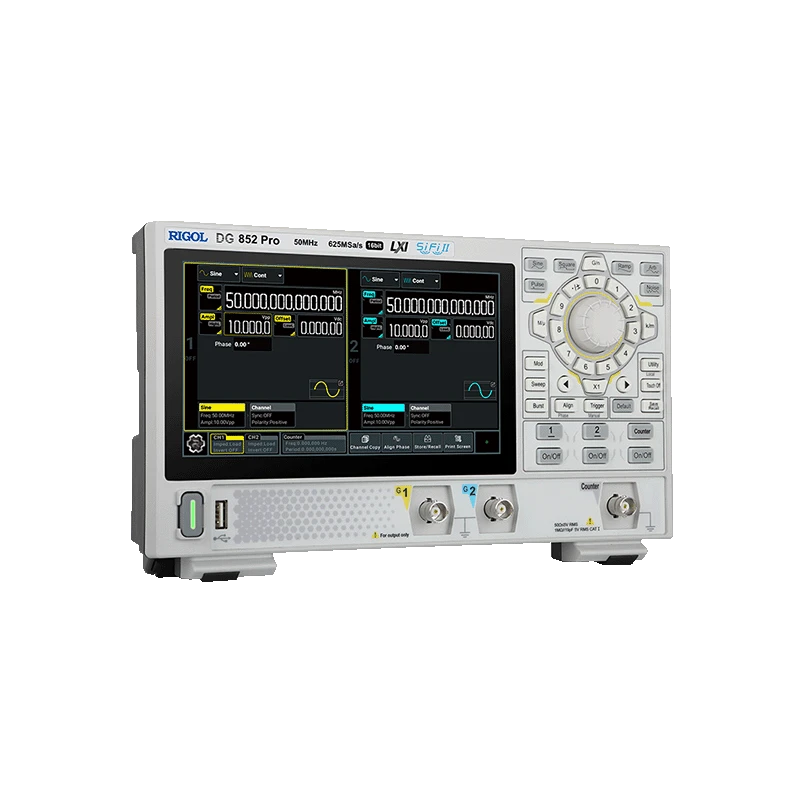

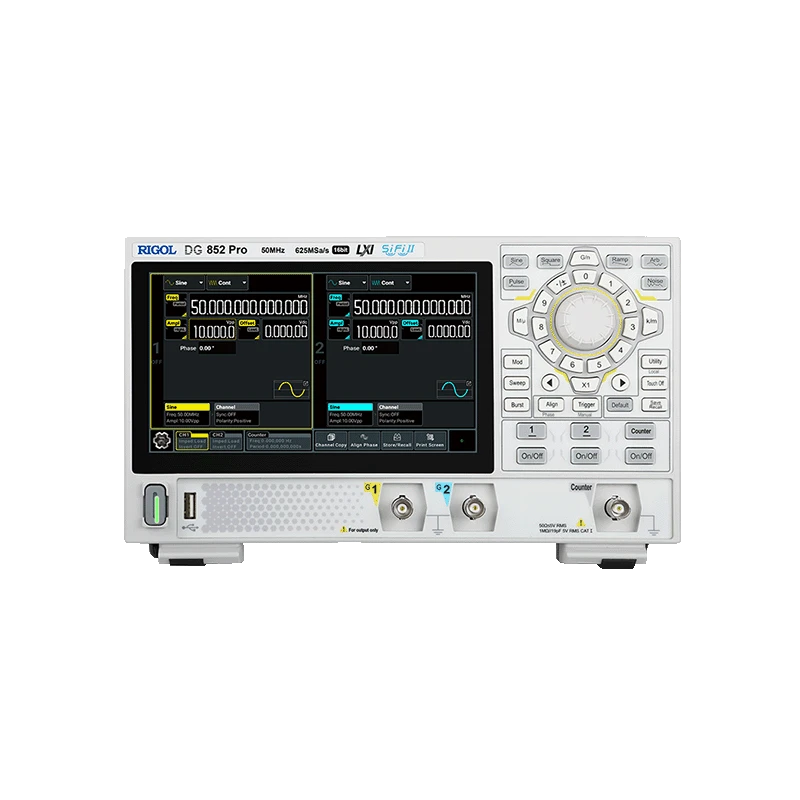

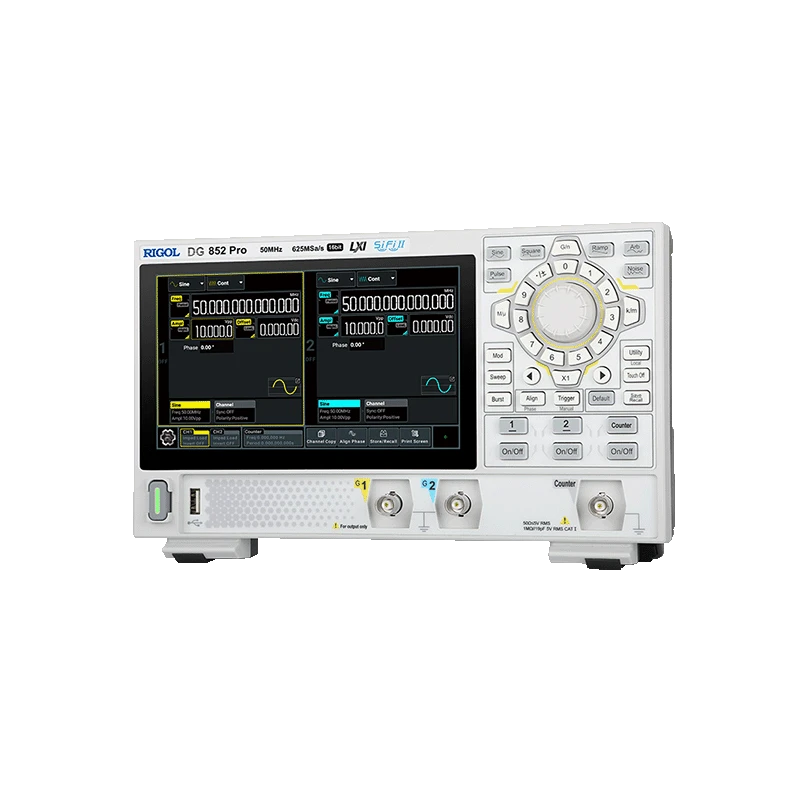

RIGOL Function/Arbitrary Waveform Generator DG800 Pro Series
Model
Max Sample Rate
Max Output Frequency
Vertical Resolution
Number of Channels
Arbitrary Waveform Length
Specifications
| Display | 7 inch Touch, 1024 x 600 |
|---|---|
| Brand | Rigol |
| Power Supply | USB Type-C, 15 V, 3 A |
| Dimensions | 266 x 165 x 80 mm |
| Internal Memory | 32 GB |
| Model | DG800 Pro Series |
| Output Impedance | 50 Ω ±1% |
| Interfaces | LAN, USB Host/Device, 10 MHz Ref IN/OUT |
| Vertical Resolution | 16 bit |
| Max. Sample Rate | 625 MSa/s |
| Frequency Counter | Independent, up to 500 MHz |
| Sweep Modes | Linear, Log, Step |
| Waveform Memory Depth | 2 Mpts/CH (8 Mpts optional) |
| Modulation Types | AM, FM, PM, ASK, FSK, PSK, PWM, SUM |
| Max. Output Frequency | 50 MHz |
| Available Channels | 1 or 2 channel(s) |
| Amplitude Range (50 Ω) | 1 mVpp to 10 Vpp |
| Amplitude Range (HighZ) | 2 mVpp to 20 Vpp |
| Offset Range (50 Ω) | ±5 Vpk (AC + DC) |
| Offset Range (HighZ) | ±10 Vpk (AC + DC) |
| Burst Modes | N-Cycle, Gated |
| Maximum Consumption | 45 W |
Key Features
Rigol DG800 Pro Series Function/Arbitrary Waveform Generator offers up to 50 MHz frequency with 16-bit vertical resolution and advanced signal generation capabilities for laboratory, R&D, and field testing environments.
- Delivers up to 50 MHz output frequency for versatile test and measurement applications.
- Features 625 MSa/s maximum sample rate with 16-bit vertical resolution to ensure high-precision signals.
- Integrates standard and arbitrary waveform, noise, pulse, harmonic, and advanced modulation modes.
- Offers 1 or 2 channel configurations, with up to 2 Mpts/CH (expandable to 8 Mpts) waveform memory.
- Includes a 7-inch touch screen display (1024 × 600) for intuitive operation and signal visualization.
- USB Type-C power support (15 V, 3 A) and LAN, USB Host/Device for remote control and data access.
- Supports LXI-C compliant Web Control for remote configuration and monitoring.
- Built-in independent 500 MHz frequency counter enhances utility in mixed-signal environments.
- Includes flexible sweep and burst modes (linear, log, step, N-Cycle, gated) and advanced sequence features.
- Amplitude output adjustable from 1 mVpp to 10 Vpp (50 Ω) and 2 mVpp to 20 Vpp (HighZ), offset up to ±10 Vpk.
- Internal 32 GB non-volatile memory for large waveform storage and sequence management.
- Compact design (<1.78 kg, 266 × 165 × 80 mm) suitable for desktop and portable use.
Product Description
Rigol DG800 Pro Series Function/Arbitrary Waveform Generator is a high-resolution lab-grade signal generator offering up to 50 MHz output frequency, 625 MSa/s sample rate, and outstanding 16-bit vertical resolution. Engineered to serve applications across education, R&D, system integration, industrial automation, and field testing, the DG800 Pro Series combines multiple signal source functionalities in one compact platform.
Its advanced features include function and arbitrary waveform generation, built-in noise, pulse, sweep, burst, harmonic, analog/digital modulation (AM, FM, PM, ASK, FSK, PSK, PWM, SUM), and high-performance 500 MHz frequency counter. Standard configuration supports up to 2 channels, 2 Mpts/channel memory (expandable to 8 Mpts), and a vibrant 7-inch touch screen for real-time monitoring and control.
- Delivers up to 50 MHz signal generation, suitable for rigorous test and measurement scenarios.
- High 625 MSa/s maximum sample rate and 16-bit vertical resolution for accurate waveform output.
- Multiple output modes: continuous, modulation, sweep (linear, log, step), burst (N-Cycle, gated), and advanced (arbitrary, sequence).
- Independent frequency counter supports broad application in laboratories and field.
- Amplitude range from 1 mVpp to 10 Vpp (50 Ω) or 2 mVpp to 20 Vpp (HighZ); offset range up to ±10 Vpk.

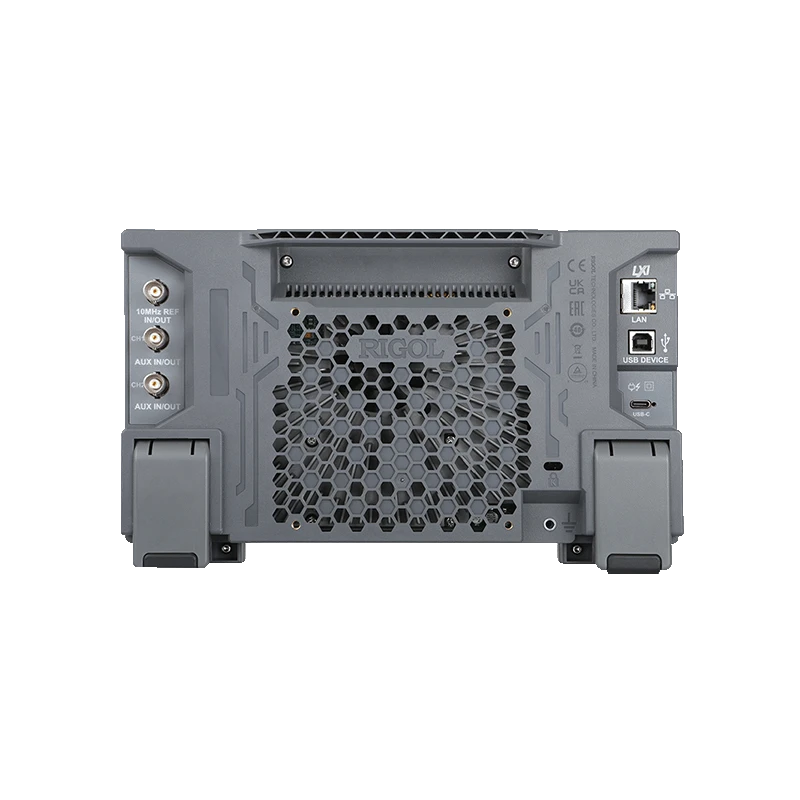

- Interfaces: LAN (LXI-C compliant), USB Host (front), USB Device (rear), external trigger, and 10 MHz reference in/out.
- USB Type-C power interface (15 V, 3 A), power consumption max 45 W.
- 32 GB internal memory for waveform storage and management.
- Rugged design (<1.78 kg; 266 × 165 × 80 mm) with operating temperature 0°C to +40°C and altitude up to 3000 m.
The DG800 Pro Series excels in environments demanding precision, flexibility, and modern connectivity, including calibration and electronic test labs, manufacturing floors, industrial R&D, system integration, and automated test systems. Applications span analog/digital circuit development, embedded system validation, equipment calibration, communications, and educational experiments.
Supplied with power adapter and cables as per model ordered.
