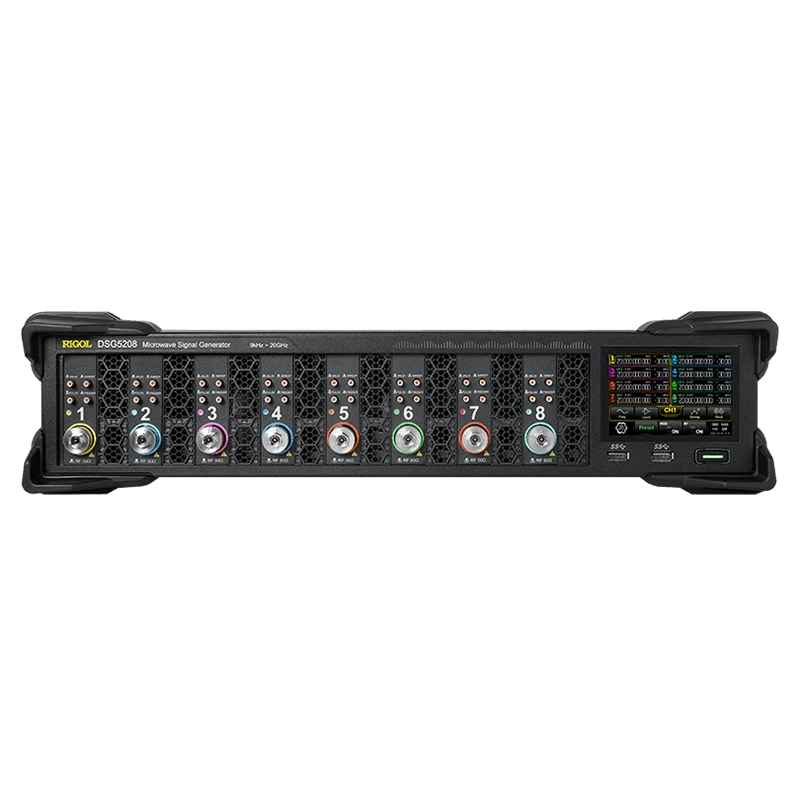

RIGOL DSG5000 Series RF Signal Generator | DSG5122 | DSG5124 | DSG5126 | DSG5128 | DSG5202 | DSG5204 | DSG5206 | DSG5208
Model
Frequency Range
Amplitude Specification Range
SSB Phase Noise
Modulation Type
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | Less than 650 W (all options) |
| Display | 3.5-inch TFT LCD (480 × 320 px) |
| Frequency range | 9 kHz to 12 GHz (DSG51xx), 9 kHz to 20 GHz (DSG52xx) |
| Brand | Rigol |
| Operating Temperature | 0°C to 50°C, model dependent |
| Storage Temperature | -20°C to 70°C |
| Calibration Interval | 18 months |
| Model | DSG5000 Series |
| Weight | Less than 14 kg |
| Temperature Stability | ±0.5 ppm |
| AC Input | 100 V–240 V, 45 Hz–440 Hz |
| Interfaces | LAN, 4 × USB 3.0 Host, USB 3.0 Device, HDMI, SMB, SMA, BNC |
| Number Of Channels | 2, 4, 6, or 8 |
| Dimensions (W × H × D) | 435 mm × 88 mm × 486.3 mm (without pads) |
| Operating Altitude | Less than 3000 m |
| Internal Storage | 10 GB (nominal) |
| Frequency Resolution | 0.01 Hz |
| Product Condition | New |
| MPN | DSG5000 Series |
| Initial Calibration Accuracy | ±0.1 ppm |
| Aging Rate | ±1 ppm/year |
| Channel-to-Channel Phase Stability | ±1° @ 10 GHz |
| Switching Speed | Less than 3 ms, typical |
| Output Power Range | -30 dBm to +25 dBm |
| Output Power Setting Resolution | 0.01 dB |
| Absolute Level Uncertainty | ±0.7 dB ≤ 1.5 GHz; ±1.3 dB up to 20 GHz |
| Phase Noise (SSB, CW, Greater than -10 dBm) at 10 kHz Offset | -133 dBc/Hz @ 1 GHz, -123 dBc/Hz @ 2 GHz, -117 dBc/Hz @ 4 GHz, -111 dBc/Hz @ 10 GHz, -105 dBc/Hz @ 20 GHz |
| Harmonics (CW Mode) | Less than -30 dBc (up to 4 GHz and 10–20 GHz), Less than -50 dBc (4–10 GHz) |
| Non-Harmonic Spurious | Down to -75 dBc, band dependent |
| Internal Reference Frequency | 10 MHz |
| External Reference Input | 10 MHz |
| Output VSWR | ≤1.8 (≤3 GHz), ≤2.2 (≤20 GHz) |
| Channel-to-Channel Isolation | 85 dB (≤4 GHz); 75 dB (up to 20 GHz) |
| Sweep Functions | Step Sweep, List Sweep; 2–1001 points; Dwell Time 5 ms–100 s |
| Supported Modulation | AM, FM, PM (optional), Pulse Modulation, Pulse Train |
| Modulation Depth (AM) | 0% to 100%, 0.1% resolution |
| FM Max Deviation | 2 MHz (≤1.5 GHz) |
| PM Max Deviation | 5 rad |
| Pulse Generator | Pulse period 40 ns–170 s; width 10 ns–170 s; patterns 1–2047 |
| Rise/Fall Time (Pulse Modulation) | Less than 50 ns (20 ns typical) |
Key Features
Rigol DSG5000 Series Multi-Channel RF Signal Generator for advanced RF/microwave testing in research, MIMO validation, and radar simulation.
- Covers wide frequency range from 9 kHz to 12 GHz or 20 GHz, model dependent.
- Supports up to 8 independent RF channels for complex multi-signal generation.
- Achieves channel-to-channel phase stability of ±1° at 10 GHz.
- Offers fast frequency switching speed of less than 3 ms typical.
- Delivers output power up to +25 dBm with fine 0.01 dB resolution.
- Very low phase noise, down to -133 dBc/Hz at 1 GHz, 10 kHz offset.
- Supports AM, FM, PM, and pulse modulation for diverse signal requirements.
- Frequency and level sweep modes, including step sweep and list sweep.
- Comprehensive interface options: LAN, USB 3.0, HDMI, and SCPI remote control.
- Internal 10 MHz/External reference, rack-mountable, and robust for industrial use.
Product Description
The RIGOL DSG5000 Series RF Signal Generator, available in DSG5122, DSG5124, DSG5126, DSG5128, DSG5202, DSG5204, DSG5206, and DSG5208 models, is a multi-channel microwave signal generator designed for advanced RF testing, radar development, wireless communication, quantum research, electronic manufacturing, and automated test-system integration.
The RIGOL DSG5000 Series offers a frequency range from 9 kHz to 12 GHz on DSG51xx models and from 9 kHz to 20 GHz on DSG52xx models. Depending on the selected configuration, it provides 2, 4, 6, or 8 independently controllable RF output channels, allowing multiple synchronised signals to be generated from a single instrument. This high channel density helps simplify complex test setups while reducing equipment and rack-space requirements.
Stable phase-coherent output and channel-to-channel phase stability below 1° at 10 GHz make the series suitable for applications requiring accurate multi-channel signal control. Its phase adjustment resolution of 0.01° enables precise configuration for MIMO testing, phased-array systems, radar simulation, beamforming research, and superconducting quantum-computing experiments.
- Frequency range from 9 kHz to 12 GHz on DSG51xx models
- Frequency range from 9 kHz to 20 GHz on DSG52xx models
- Configurations with 2, 4, 6, or 8 RF output channels
- Independently controllable output frequency, level, and phase
- Channel-to-channel phase stability below 1° at 10 GHz
- Fine phase adjustment resolution of 0.01°
- Typical phase noise below −133 dBc/Hz at 1 GHz and 10 kHz offset
- Fine frequency resolution of 0.01 Hz
- Typical frequency and level switching time below 3 ms
- Maximum output power up to +25 dBm
- Output-level adjustment resolution of 0.01 dB
- Frequency, level, step, and list sweep functions
- List sweep supporting up to 1,001 points
- Optional AM, FM, and PM analogue modulation
- Optional pulse modulation and pulse-train generation
- 10 MHz internal reference with external reference support
- 3.5-inch TFT touchscreen with 480 × 320 resolution
- USB 3.0 Host and USB 3.0 Device interfaces
- LAN and LXI connectivity for automated testing
- HDMI output for external displays and projectors
- SCPI command support and web-based remote control
- Approximately 10 GB of internal storage
- Rack-mountable 2U full-width chassis
- Front-to-rear ventilation for multi-instrument integration
The low phase noise and excellent suppression of harmonics and unwanted signals help generate clean RF and microwave outputs for sensitive receiver and component testing. Fast switching performance also supports frequency-agile experiments, automated production testing, and applications requiring quick changes in signal frequency or amplitude.
The multiple independently controlled channels allow engineers to replace several individual RF generators with one integrated platform. This makes the DSG5000 Series particularly valuable for multi-antenna communication development, phased-array evaluation, multi-port device testing, coherent radar simulation, and complex scientific experiments.

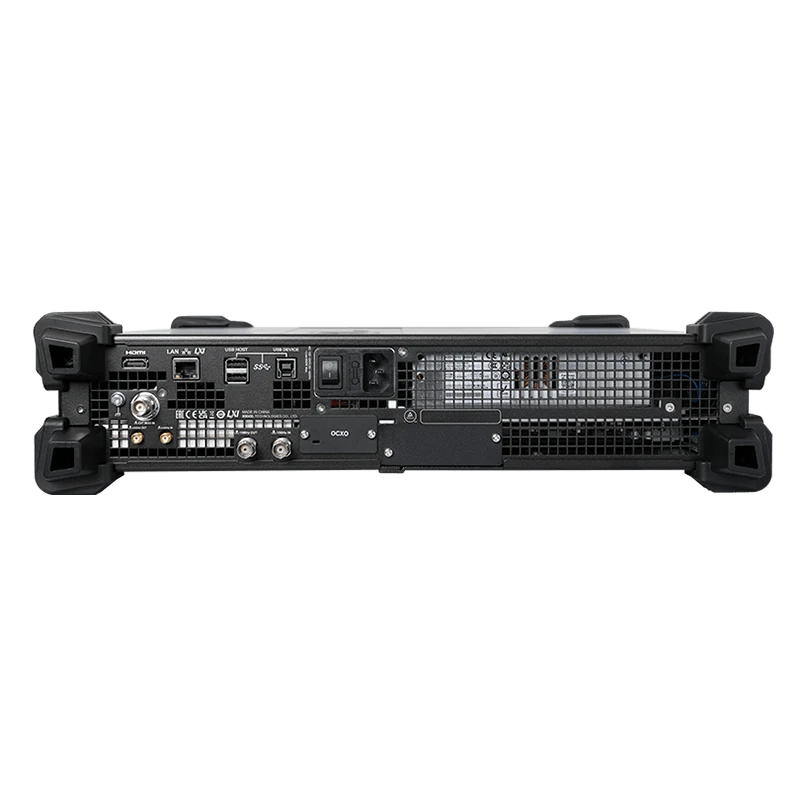

USB, LAN, HDMI, SCPI, and web-control capabilities enable convenient local or remote operation. The standard rack-size construction and front-to-rear cooling design make the system suitable for laboratory benches, automated test racks, manufacturing facilities, and installations containing multiple signal generators.
Typical applications include MIMO communication testing, radar and phased-array development, RF component characterisation, receiver validation, aerospace and defence research, quantum-computing experiments, semiconductor testing, electronic manufacturing, academic research, and automated RF system integration.
Available Models: DSG5122 | DSG5124 | DSG5126 | DSG5128 | DSG5202 | DSG5204 | DSG5206 | DSG5208
Explore more RIGOL RF signal generators, microwave signal generators, spectrum analysers, and professional electronic test instruments in the Measuring & Testing Instruments category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DSG5000 Series covers a frequency range from 9 kHz to 12 GHz for DSG51xx models and up to 20 GHz for DSG52xx models.
The DSG5000 Series supports up to 8 independent RF channels, allowing for complex multi-signal generation.
The output power ranges from -30 dBm to +25 dBm, depending on the frequency, with a resolution of 0.01 dB.
The DSG5000 Series achieves low phase noise down to -133 dBc/Hz at 1 GHz with a 10 kHz offset.
The signal generator supports AM, FM, PM, and pulse modulation, providing versatility for various signal requirements.
The DSG5000 Series has a fast frequency switching speed of less than 3 ms, making it suitable for agile testing scenarios.
Connectivity options include LAN, USB 3.0, HDMI, and SCPI remote control, offering flexibility for integration.
The operating temperature range is from 0°C to 50°C, depending on the model.
Yes, the DSG5000 Series is designed to be rack-mountable, making it suitable for industrial use.
The weight of the DSG5000 Series is less than 14 kg, making it manageable for various setups.
