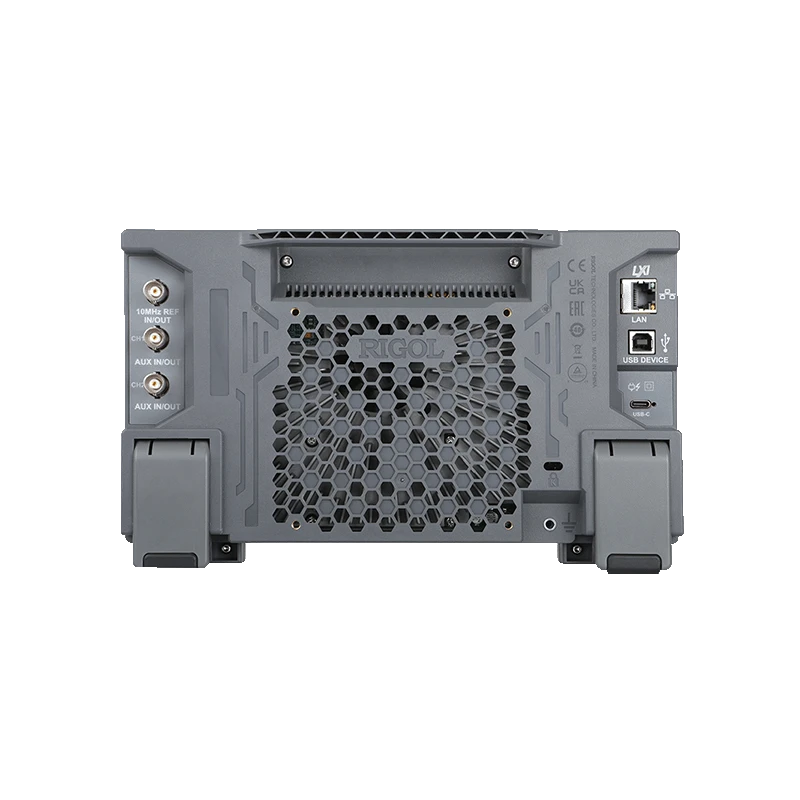

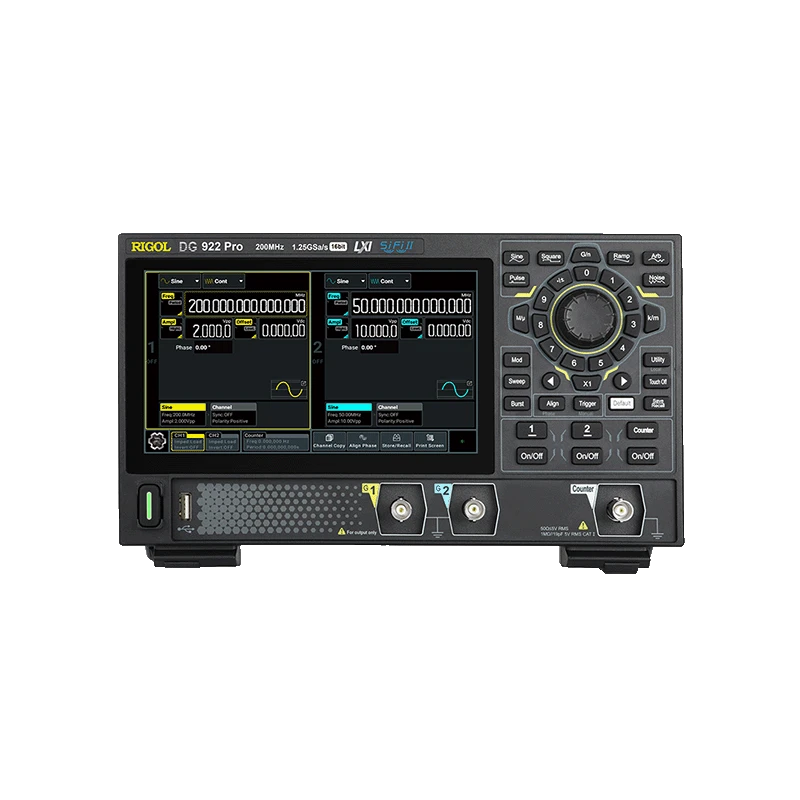

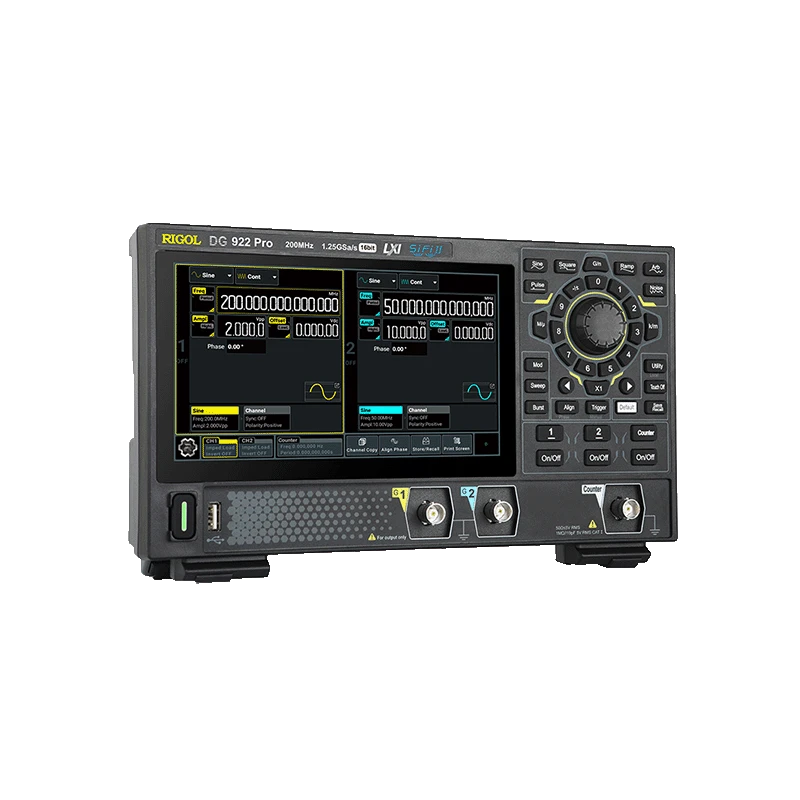

RIGOL Function/Arbitrary Waveform Generator DG900 Pro Series
Model
Max Sample Rate
Max Output Frequency
Vertical Resolution
Number of Channels
Arbitrary Waveform Length
Specifications
| Country of Origin | China |
|---|---|
| Display | 7-inch touch screen, 1024×600 |
| Brand | Rigol |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 266 × 165 × 80 mm |
| Storage Temperature | -20°C to +60°C |
| Model | DG900 Pro Series |
| Maximum power consumption | 45 W |
| Input power | USB Type-C (15 V, 3 A) |
| Sample Rate | 1.25 GSa/s |
| Interfaces | LAN, USB Host, USB Device |
| Number Of Channels | 2 |
| Vertical Resolution | 16 bit |
| Operating Altitude | Below 3000 m |
| Frequency Counter | 1 GHz (built-in) |
| Internal Storage | 32 GB |
| Product Condition | New |
| MPN | DG900 Pro Series |
| Recommended Calibration Interval | 12 months |
| Weight (without package) | 1.78 kg |
| Maximum Output Frequency | 200 MHz |
| Waveform Memory Depth | 16 Mpts/CH (32 Mpts optional) |
| Modulation Types | AM, FM, PM, ASK, FSK, PSK, PWM, SUM |
| Harmonic Generator | Up to 20th order |
| Output Amplitude Range (≤100 MHz) | 1 mVpp to 5 Vpp |
| Output Amplitude Range (≤50 MHz) | 1 mVpp to 10 Vpp |
| Output Amplitude Range (≤200 MHz) | 1 mVpp to 2 Vpp |
Key Features
Rigol DG900 Pro Series Dual-Channel Function/Arbitrary Waveform Generator delivers up to 200 MHz output frequency, 1.25 GSa/s sample rate, and 16-bit vertical resolution for precise signal generation in advanced electronic testing applications.
- High-resolution dual channel output enables independent or synchronized waveforms.
- Maximum output frequency up to 200 MHz for a wide range of signal requirements.
- 1.25 GSa/s sample rate with 16-bit vertical resolution for superior clarity.
- 7-inch touch screen (1024 × 600) simplifies operation and monitoring.
- Waveform memory depth up to 16 Mpts/channel (32 Mpts optional) for complex sequences.
- Built-in 1 GHz frequency counter supports accurate measurements and diagnostics.
- Multiple modulation modes (AM, FM, PM, ASK, FSK, PSK, PWM, SUM) cover a wide range of applications.
- LAN and USB Type-C interfaces for modern connectivity and web-based remote control.
- Robust performance with low harmonic distortion and phase noise, ensuring purity of generated signals.
Product Description
Rigol DG900 Pro Series Dual-Channel Function/Arbitrary Waveform Generator is designed for R&D, education, electronic design validation, and advanced testing environments. This compact generator provides up to 200 MHz output frequency, 1.25 GSa/s sample rate, and 16-bit vertical resolution, making it an ideal choice for engineers and laboratory professionals seeking high-fidelity signal generation.
- Dual-channel (2 output channels) operation for generating independent or synchronized signals.
- Maximum output frequency up to 200 MHz meets the needs of demanding waveform testing.
- High sample rate (1.25 GSa/s) with 16-bit resolution conveys accurate, detailed waveforms.
- Generous waveform memory depth of 16 Mpts/channel (expandable to 32 Mpts) supports elaborate arbitrary and sequence modes.
- Integrated 1 GHz frequency counter with support for measuring frequency, period, pulse width, and duty cycle.
- Advanced modulation capabilities include AM, FM, PM, ASK, FSK, PSK, PWM, and summation functions up to 1 MHz.
- Multiple waveform output modes: continuous, modulation, sweep (linear, log, step), burst, and advanced (Arb/Sequence).
- Output amplitude ranges from 1 mVpp to 10 Vpp (≤50 MHz), 1 mVpp to 5 Vpp (≤100 MHz), and 1 mVpp to 2 Vpp (≤200 MHz).
- 7-inch capacitive touch screen with 1024 × 600 pixel resolution for intuitive control and real-time visualization.
- Power supplied via USB Type-C (15 V, 3 A), supporting portable and flexible lab setups.
- LAN (10/100 BASE-T, LXI-C compliant) and web control functions streamline remote management and integration.
- Internal 32 GB storage offers secure local waveform and sequence saving.
- Reliable operation in laboratories, industrial production facilities, and education, or portable field testing scenarios.
This generator is suitable for various domains such as electronics laboratories, education/training, R&D, manufacturing QA, and field service. Its high-quality signal generation and flexible connectivity ensure optimal performance in measurement and testing setups.
Explore more premium signal generators and testing instruments by Rigol and other leading manufacturers in the EnvMart Measuring & Testing Instruments category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output frequency of the Rigol DG900 Pro Series is 200 MHz, suitable for a wide range of signal requirements.
The Rigol DG900 Pro Series has a sample rate of 1.25 GSa/s and a vertical resolution of 16 bits, ensuring high clarity in signal generation.
Yes, the DG900 Pro Series features dual-channel output, allowing you to generate independent or synchronized waveforms.
This function generator supports various modulation types including AM, FM, PM, ASK, FSK, PSK, PWM, and SUM.
The waveform memory depth is 16 Mpts per channel, with an option to expand to 32 Mpts for complex sequences.
The 7-inch capacitive touch screen with 1024 × 600 resolution simplifies operation and allows for real-time visualization of waveforms.
The generator features LAN and USB Type-C interfaces for modern connectivity and web-based remote control.
The operating temperature range for the Rigol DG900 Pro Series is 0°C to 40°C.
The input power requirement is USB Type-C (15 V, 3 A), making it suitable for portable lab setups.
You can inquire or purchase the Rigol DG900 Pro Series through our website or contact our sales team for assistance.
