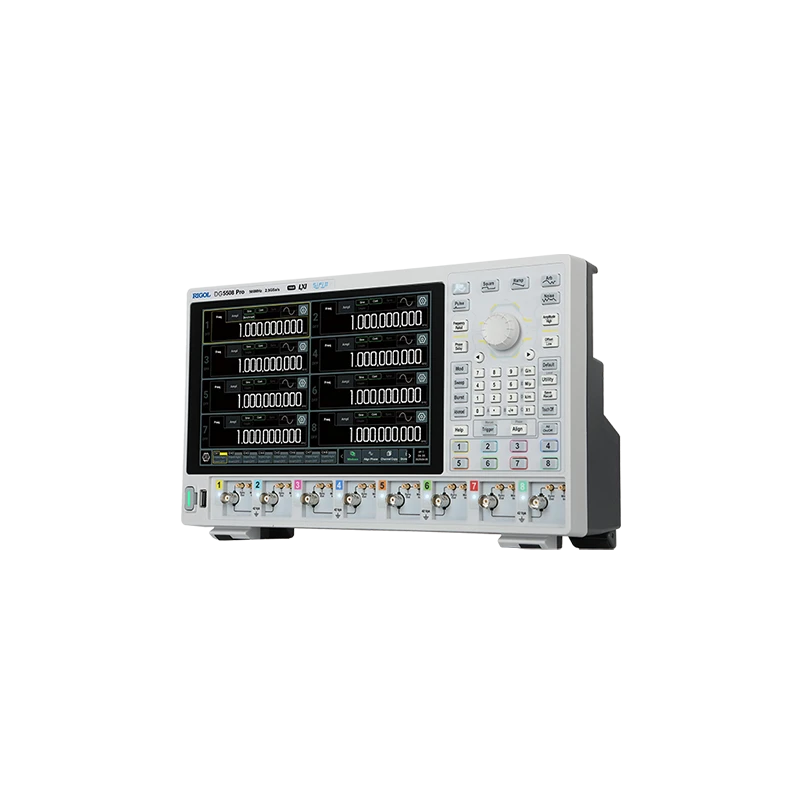

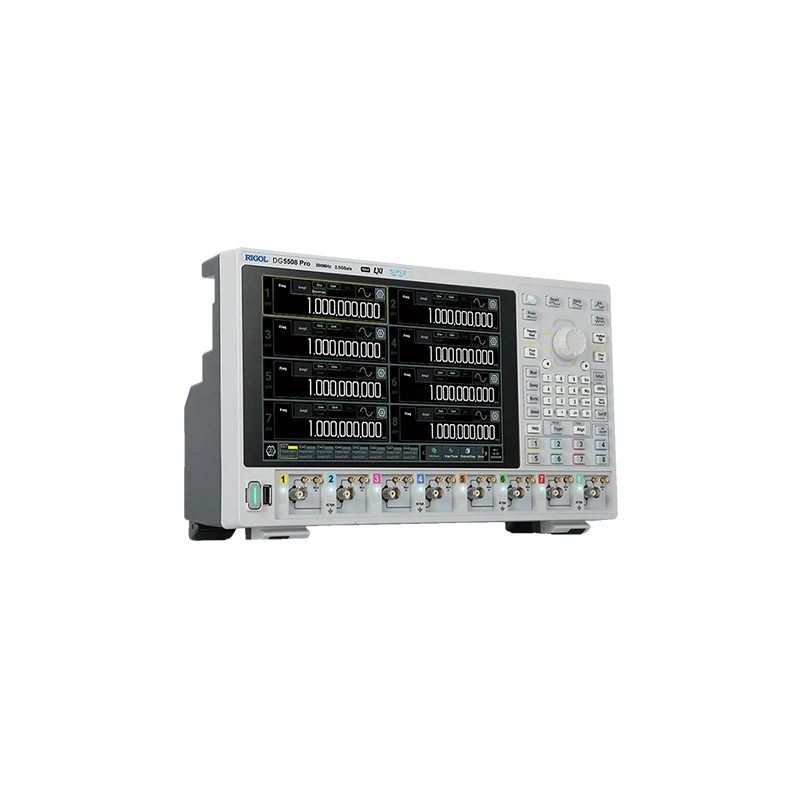

RIGOL Function/Arbitrary Waveform Generator DG5000 Pro Series
Model
Max Sample Rate
Max Output Frequency
Vertical Resolution
Number of Channels
Arbitrary Waveform Length
Specifications
| Resolution | 0.1 mVpp, 1 μHz |
|---|---|
| Operating Humidity | ≤80% RH |
| Power Consumption | 210 W |
| Brand | Rigol |
| Operating Temperature | 0–40 °C |
| Dimensions | 358 x 215 x 122 mm |
| Display Size | 10.1 inch HD touch |
| Model | DG5000 Pro Series |
| Weight | 4.2–5.3 kg |
| Power Input | 100–240 V AC, 50/60Hz |
| Frequency Accuracy | ±1 × 10⁻⁶ |
| Sample Rate | 2.5 GSa/s |
| Interfaces | LAN, USB 3.0 Host & Device, HDMI, LXI-C Web Control |
| Vertical Resolution | 16 bits |
| Internal Storage | 128 GB |
| Product Condition | New |
| Output Channels | 2 / 4 / 8 (Isolated) |
| Maximum Output Frequency | 500 MHz |
| Waveform Memory Depth | 64 Mpts/CH (128 Mpts/CH optional) |
| Maximum Square Wave Frequency | 170 MHz |
| Maximum Pulse Wave Frequency | 120 MHz |
| Modulation Types | AM, FM, PM, ASK, FSK, PSK, PWM, SUM, IQ (optional) |
| Harmonic Generator | Up to 20th order |
| Maximum Output Amplitude | ±5 Vpk |
| Amplitude Accuracy | ±(1% + 1 mVpp) |
Key Features
Rigol DG5000 Pro Series DG5000 Pro Series Function/Arbitrary Waveform Generator for advanced RF and electronics testing.
- Offers up to 500 MHz maximum output frequency for high-speed applications.
- Features 2, 4, or 8 channel isolated outputs for flexible signal generation.
- Delivers 2.5 GSa/s sample rate and 16-bit vertical resolution for precise waveform reproduction.
- Includes deep memory of 64 Mpts/CH (128 Mpts/CH optional).
- Supports function, arbitrary, pulse, harmonic, and noise waveform generation in one unit.
- Advanced modulation capabilities: AM, FM, PM, ASK, FSK, PSK, PWM, SUM, and optional IQ modulation.
- Equipped with 10.1-inch HD capacitive touch screen and 128 GB internal storage.
- Square wave to 170 MHz, pulse wave up to 120 MHz; minimum pulse width 4.2 ns.
- Accurate amplitude and frequency with ±1% amplitude and ±1 × 10⁻⁶ frequency accuracy.
- Multiple industrial interfaces: LAN, USB 3.0, HDMI, LXI-C Web Control.
Product Description
The RIGOL DG5000 Pro Series Function/Arbitrary Waveform Generatorathy, available in DG5252 Pro, DG5254 Pro, DG5258 Pro, DG5352 Pro, DG5354 Pro, DG5358 Pro, DG5502 Pro, DG5504 Pro, and DG5508 Pro models, delivers advanced signal generation for research laboratories, semiconductor validation, power-electronics testing, communication-system development, and industrial electronics applications.
The RIGOL DG5000 Pro Series offers output frequencies up to 500 MHz, a sampling rate up to 2.5 GSa/s, and 16-bit vertical resolution for generating precise and stable test signals. Model configurations with two, four, or eight fully isolated output channels provide the flexibility required to test complex circuits, multi-channel devices, and high-speed electronic systems.
The series supports function, arbitrary, sine, square, pulse, noise, harmonic, and other waveform types for analog and digital circuit development. With waveform memory of 64 Mpts per channel, expandable to 128 Mpts, engineers can create and reproduce long, detailed signal sequences. Advanced sequence functions further support complex waveform simulations, device validation, and automated testing procedures.
- Output-frequency options up to 500 MHz
- Sampling rate up to 2.5 GSa/s
- High 16-bit vertical resolution
- Two, four, or eight fully isolated output channels
- Function and arbitrary waveform generation
- Sine, square, pulse, noise, and harmonic signal support
- Waveform memory up to 64 Mpts per channel
- Expandable waveform memory up to 128 Mpts
- Advanced waveform sequencing and signal simulation
- Multi-channel output for complex electronic-system testing
- 10.1-inch HD capacitive touchscreen
- USB and LAN connectivity for data transfer and remote operation
- HDMI output for external display connection
- Reference-clock input and output for system synchronisation
- Suitable for automated test and measurement systems
The multiple isolated channels enable engineers to generate independent signals while reducing unwanted ground-loop interference between connected devices. This makes the DG5000 Pro Series suitable for power-device testing, semiconductor-characterisation setups, multi-phase signal simulation, and applications where channel isolation is important.

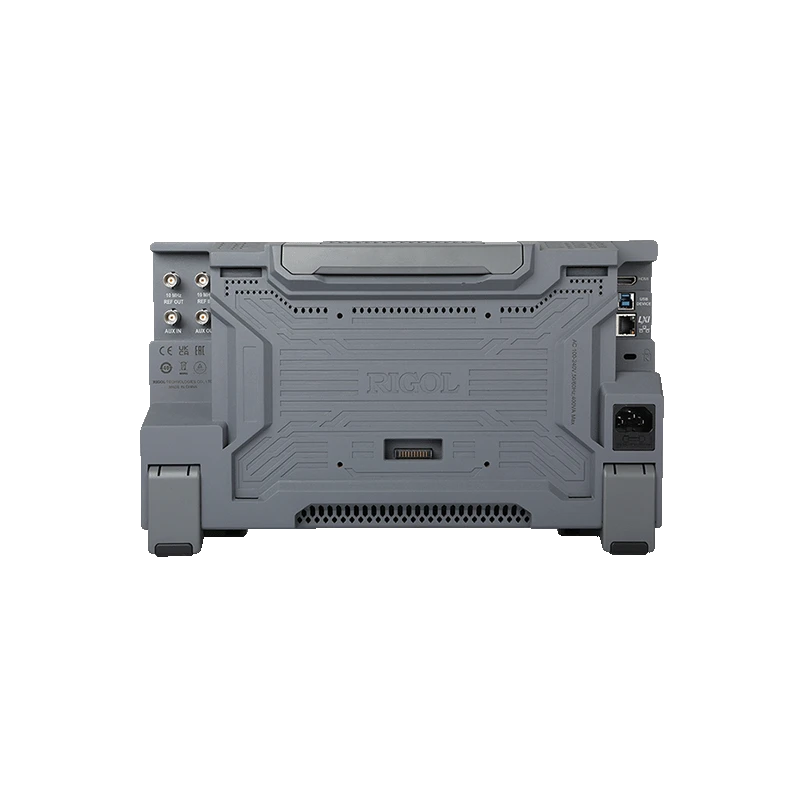

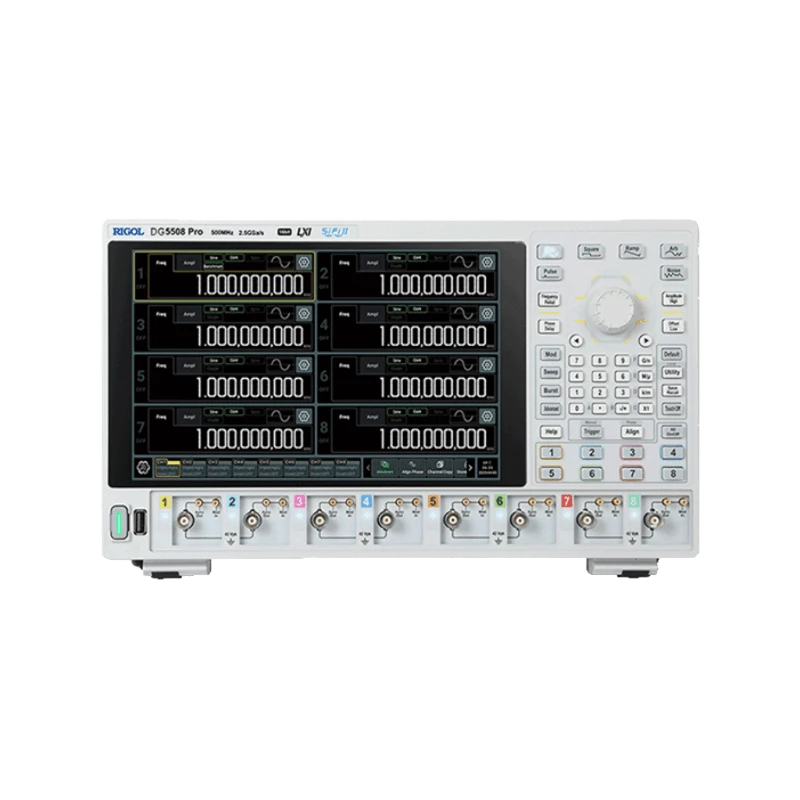

Its 10.1-inch HD capacitive touchscreen provides clear waveform visualisation and convenient access to signal parameters, modulation settings, sequence functions, and channel controls. USB, LAN, HDMI, and reference-clock interfaces allow the waveform generator to integrate easily with laboratory networks, automated test equipment, and industrial validation systems.
Typical applications include semiconductor testing, power-electronics validation, communication-system development, electronic circuit design, sensor simulation, component testing, education, manufacturing quality control, and advanced laboratory research.
Available Models: DG5252 Pro | DG5254 Pro | DG5258 Pro | DG5352 Pro | DG5354 Pro | DG5358 Pro | DG5502 Pro | DG5504 Pro | DG5508 Pro
Explore more RIGOL function generators, arbitrary waveform generators, signal generators, and electronic test and measurement instruments on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RIGOL DG5000 Pro Series Function/Arbitrary Waveform Generator offers a maximum output frequency of 500 MHz, making it suitable for high-speed applications.
The RIGOL DG5000 Pro Series has a sample rate of up to 2.5 GSa/s, allowing for precise waveform reproduction.
The RIGOL DG5000 Pro Series is available with 2, 4, or 8 fully isolated output channels, providing flexibility for complex signal generation.
The RIGOL DG5000 Pro Series supports a variety of waveform types including function, arbitrary, sine, square, pulse, noise, and harmonic waveforms.
The RIGOL DG5000 Pro Series features a vertical resolution of 16 bits, ensuring high precision in waveform generation.
The RIGOL DG5000 Pro Series has a waveform memory depth of 64 Mpts per channel, which can be expanded to 128 Mpts per channel for detailed signal sequences.
The RIGOL DG5000 Pro Series supports various modulation types including AM, FM, PM, ASK, FSK, PSK, PWM, SUM, and optional IQ modulation.
The dimensions of the RIGOL DG5000 Pro Series are 358 x 215 x 122 mm, making it compact for laboratory use.
