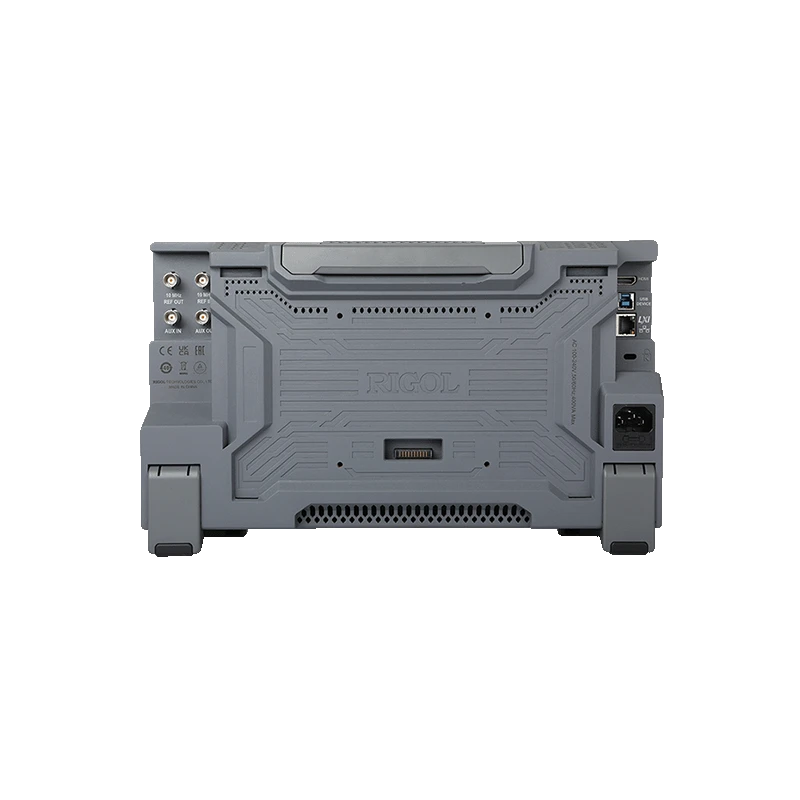

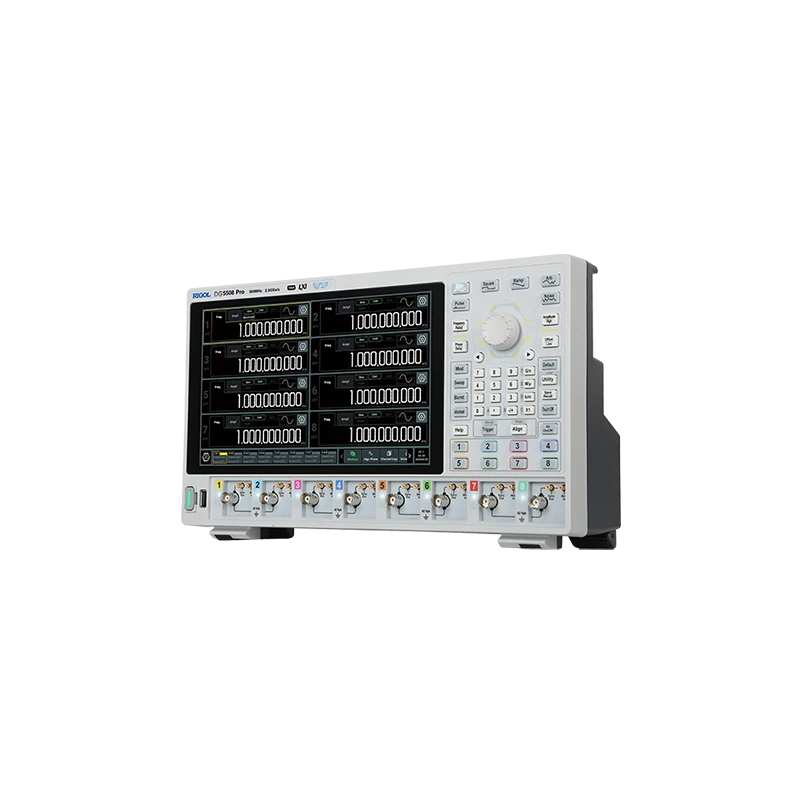

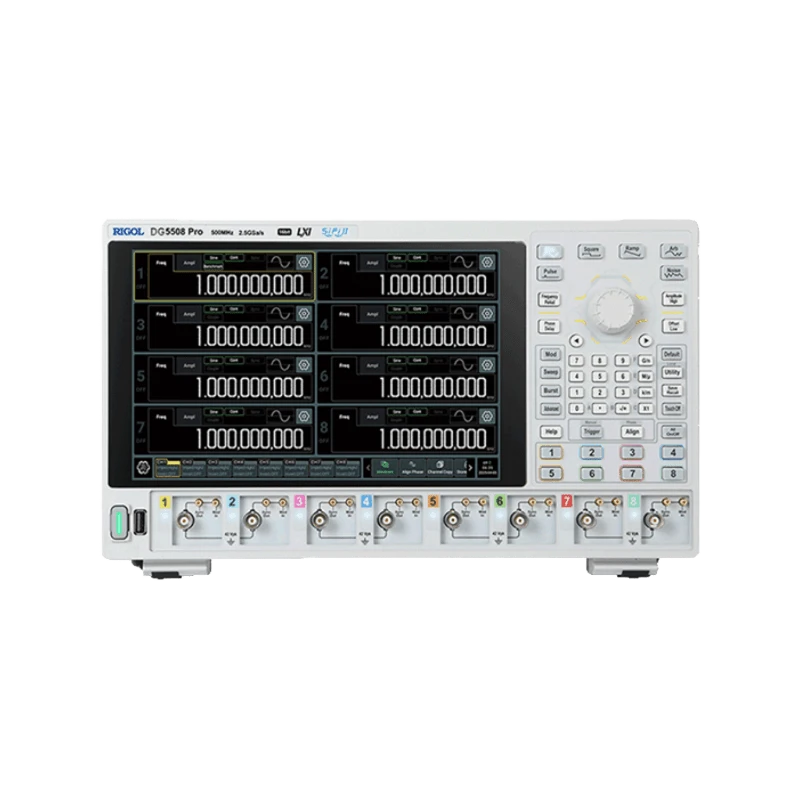

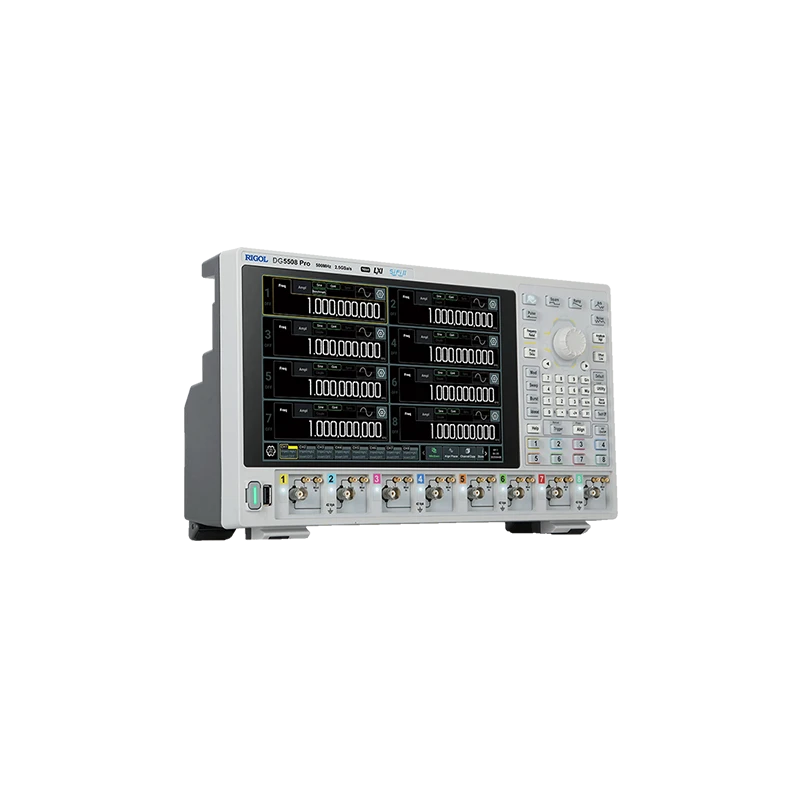

RIGOL Function/Arbitrary Waveform Generator DG5000 Pro Series
Model
Max Sample Rate
Max Output Frequency
Vertical Resolution
Number of Channels
Arbitrary Waveform Length
Specifications
| Resolution | 0.1 mVpp, 1 μHz |
|---|---|
| Operating Humidity | ≤80% RH |
| Power Consumption | 210 W |
| Brand | Rigol |
| Operating Temperature | 0–40 °C |
| Dimensions | 358 x 215 x 122 mm |
| Display Size | 10.1 inch HD touch |
| Model | DG5000 Pro Series |
| Weight | 4.2–5.3 kg |
| Power Input | 100–240 V AC, 50/60Hz |
| Frequency Accuracy | ±1 × 10⁻⁶ |
| Sample Rate | 2.5 GSa/s |
| Interfaces | LAN, USB 3.0 Host & Device, HDMI, LXI-C Web Control |
| Vertical Resolution | 16 bits |
| Internal Storage | 128 GB |
| Product Condition | New |
| Output Channels | 2 / 4 / 8 (Isolated) |
| Maximum Output Frequency | 500 MHz |
| Waveform Memory Depth | 64 Mpts/CH (128 Mpts/CH optional) |
| Maximum Square Wave Frequency | 170 MHz |
| Maximum Pulse Wave Frequency | 120 MHz |
| Modulation Types | AM, FM, PM, ASK, FSK, PSK, PWM, SUM, IQ (optional) |
| Harmonic Generator | Up to 20th order |
| Maximum Output Amplitude | ±5 Vpk |
| Amplitude Accuracy | ±(1% + 1 mVpp) |
Key Features
Rigol DG5000 Pro Series DG5000 Pro Series Function/Arbitrary Waveform Generator for advanced RF and electronics testing.
- Offers up to 500 MHz maximum output frequency for high-speed applications.
- Features 2, 4, or 8 channel isolated outputs for flexible signal generation.
- Delivers 2.5 GSa/s sample rate and 16-bit vertical resolution for precise waveform reproduction.
- Includes deep memory of 64 Mpts/CH (128 Mpts/CH optional).
- Supports function, arbitrary, pulse, harmonic, and noise waveform generation in one unit.
- Advanced modulation capabilities: AM, FM, PM, ASK, FSK, PSK, PWM, SUM, and optional IQ modulation.
- Equipped with 10.1-inch HD capacitive touch screen and 128 GB internal storage.
- Square wave to 170 MHz, pulse wave up to 120 MHz; minimum pulse width 4.2 ns.
- Accurate amplitude and frequency with ±1% amplitude and ±1 × 10⁻⁶ frequency accuracy.
- Multiple industrial interfaces: LAN, USB 3.0, HDMI, LXI-C Web Control.
Product Description
Rigol DG5000 Pro Series DG5000 Pro Series Function/Arbitrary Waveform Generator delivers advanced performance for scientific, research, semiconductor validation, power electronics, and RF/communication system applications. With output frequencies up to 500 MHz, a maximum 2.5 GSa/s sample rate, and 16-bit vertical resolution, this multi-channel generator is engineered for demanding test scenarios.
- Provides 2, 4, or 8 configurable, fully isolated output channels, supporting optimal flexibility in test setups.
- Generates function, arbitrary, square, pulse, noise, and harmonic waveforms across all outputs—ideal for high-speed digital and analog circuit development.
- 64 Mpts/CH arbitrary waveform memory (128 Mpts/CH optional), advanced sequence functions (up to 512 steps, optional), and harmonic synthesis support up to 20th order.
- Modulation capabilities include AM, FM, PM, ASK, FSK, PSK, PWM, SUM, and optional IQ (256 QAM) for communication standards testing.
- Comes with a large 10.1-inch HD capacitive touch display (1280 × 800) for easy navigation, plus 128 GB internal storage for waveform and test data.
- Features ground isolation on all channels, output impedance 50 Ω ±1%, ±5 Vpk offset, and ±42 Vpk max isolated DC.
- High-accuracy amplitude (±1% + 1 mVpp) and frequency resolution (1 μHz); low phase noise and jitter (typ. 200 ps).
- Versatile connectivity: LAN (10/100/1000 Base-T, LXI-C and Web Control), USB 3.0 Host/Device, HDMI, trigger I/O, and dedicated reference clock I/O.
- Robust for industrial and laboratory environments with 210 W power consumption, AC 100-240V, 50/60Hz, and operational from 0°C to 40°C, ≤80% RH, altitude below 3000m.
- Package includes the main generator, power cable, USB cable, quick guide, and accessories (refer to manufacturer listing as per configuration).
Widely used in industrial, laboratory, power electronics, communication, R&D, and semiconductor testing environments. View more Function Generators and advanced test instruments from Rigol or browse other test and measurement equipment on EnvMart to find the right solution for your laboratory or industrial needs.
