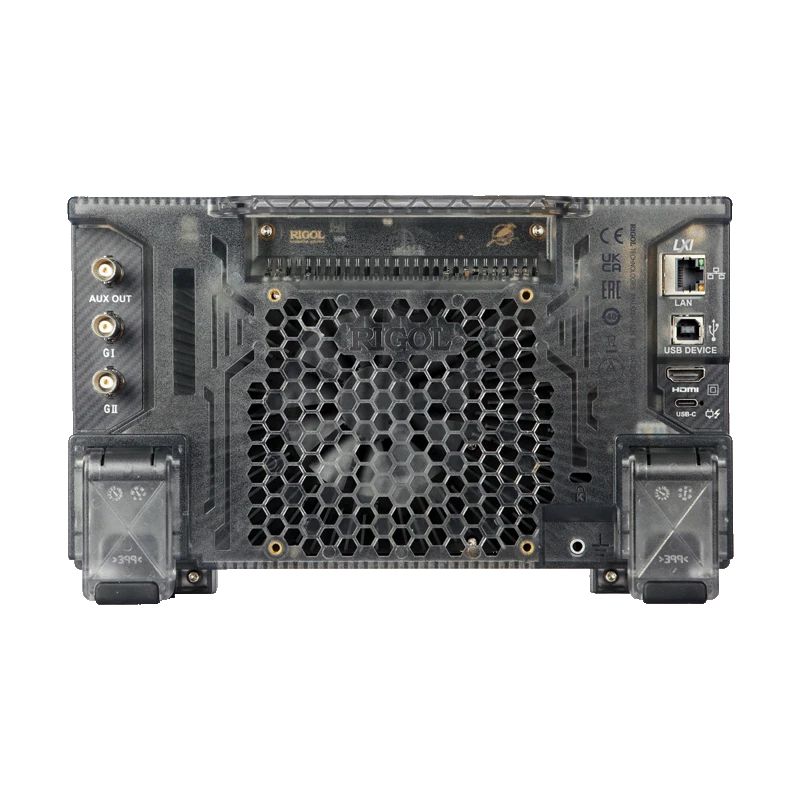

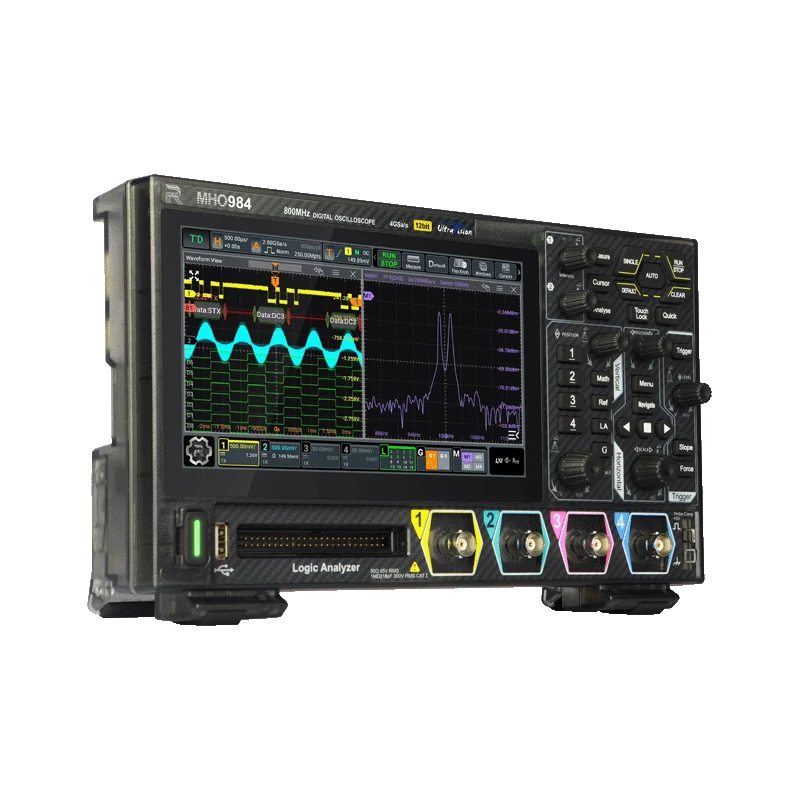

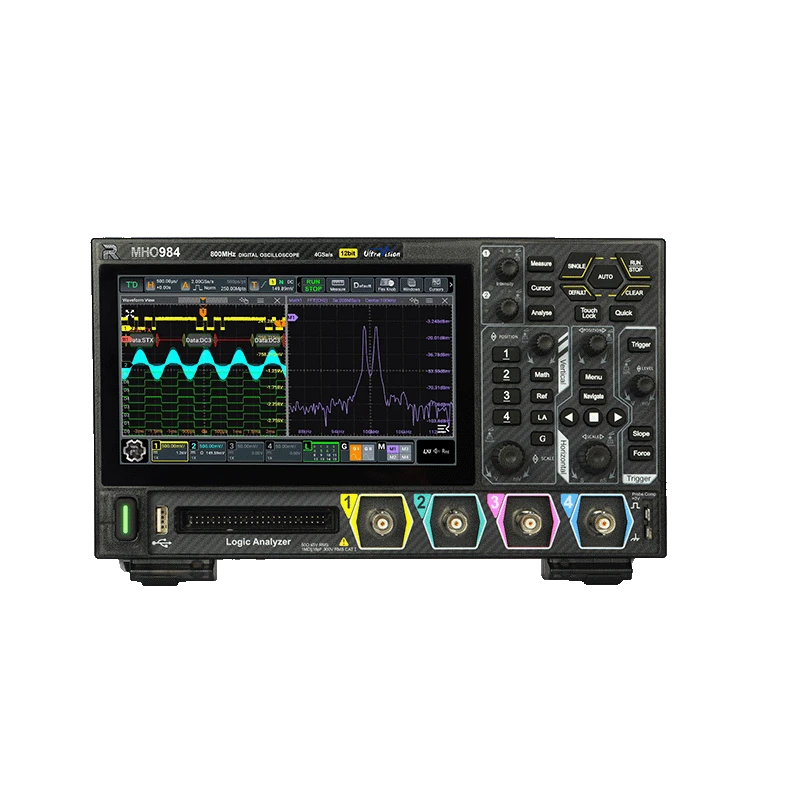

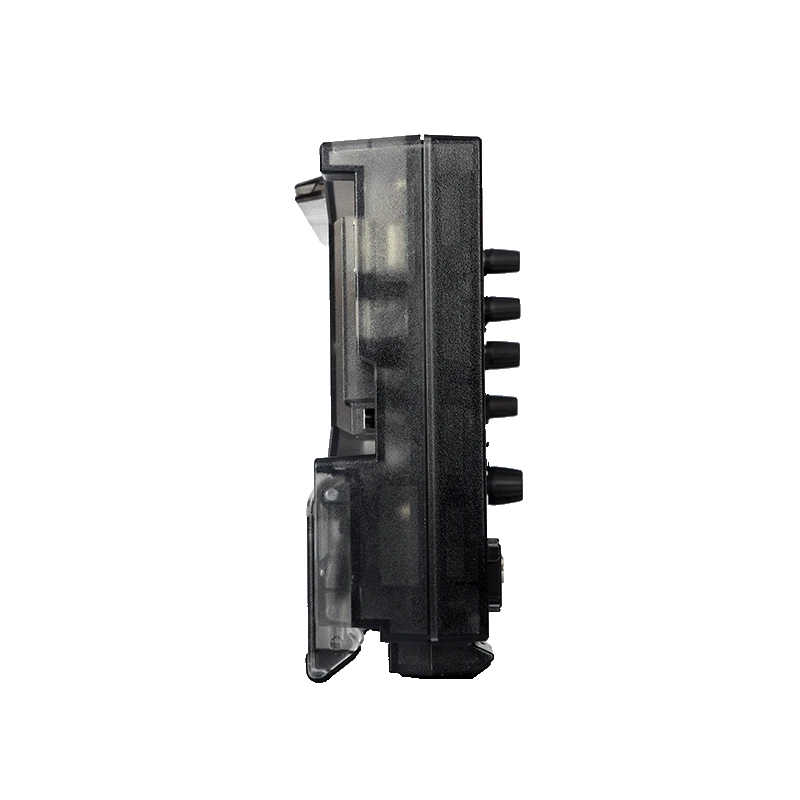

RIGOL MHO900 Series Digital Oscilloscope | MHO934 | MHO954 | MHO984
Model
Analog Bandwidth
Max Sample Rate
Analog Channels
Max Memory Depth
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | 70 W |
| Display | 7-inch capacitive multi-touch HD display, 1024 × 600 |
| Brand | Rigol |
| Power Supply | DC 20 V, 5 A (Type-C) |
| Dimensions | 265.35 x 161.75 x 77.38 mm |
| Calibration Interval | 18 months |
| Connectivity | USB Host/Device, LAN, HDMI |
| Model | MHO984 |
| Weight | 1.6 kg |
| Input Impedance | 50 Ω ±1% / 1 MΩ ±1% |
| Waveform Capture Rate | 1,000,000 wfms/s (Fast Record mode) |
| Vertical Resolution | 12 bits (up to 16 in High Resolution mode) |
| Memory Depth | 100 Mpts (standard), up to 500 Mpts (optional) |
| Internal Storage | 32 GB |
| Product Condition | New |
| MPN | MHO984 |
| RAM | 4 GB |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Input Capacitance | 18 ±3 pF |
| Analog Bandwidth (50 Ω, single-channel) | 800 MHz |
| Max Real-time Sampling Rate | 4 GSa/s |
| Max Input Voltage (1 MΩ) | CAT I 300 Vrms, 400 Vpk |
| Max Input Voltage (50 Ω) | 5 Vrms |
| ESD Protection | ±8 kV |
| Processor & OS | Cortex-A72 6-core, Android OS |
| Function Generator (Optional) | 2 channels, 100 MHz |
Key Features
Rigol MHO984 Digital Oscilloscope offers 12-bit resolution, 800 MHz bandwidth, and advanced debugging for industrial and laboratory applications.
- 800 MHz analog bandwidth with 4 analog and 16 digital channels for versatile waveform analysis.
- High 12-bit vertical resolution for precise signal capture and measurement accuracy.
- Ultra-fast 4 GSa/s real-time sampling rate and up to 500 Mpts memory depth.
- 7-inch HD capacitive multi-touch display with digital phosphor and 256-level intensity grading.
- Advanced triggers and serial decoding support for RS232, I2C, SPI, CAN, and LIN buses.
- Integrated Android OS with 6-core Cortex-A72 processor and 32 GB internal storage.
- Optional 2-channel 100 MHz function/arbitrary waveform generator and Bode Plot capability.
- LAN, USB, and HDMI connectivity for data transfer, control, and output.
- Robust ESD protection and user-friendly multi-mode operation for research, education, and R&D.
Product Description
The RIGOL MHO900 Series Digital Oscilloscope, available in MHO934, MHO954, and MHO984 models, is a high-performance instrument designed for embedded-system debugging, power analysis, automotive testing, electronics R&D, and other laboratory and industrial applications. The series offers 12-bit vertical resolution, expandable to 16-bit in High-Resolution mode, for precise, low-noise waveform measurements.
- Bandwidth options up to 800 MHz, depending on the selected model and configuration
- Four analog channels and 16 optional digital channels for mixed-signal analysis
- Real-time sampling rate up to 4 GSa/s
- Optional memory depth up to 500 Mpts
- Waveform capture rate up to 1,000,000 waveforms per second
- Seven-inch HD capacitive touchscreen with 1024 × 600 resolution
- Serial protocol decoding for RS232, I2C, SPI, CAN and LIN
- Peak Detect, Average, High Resolution and Fast Record acquisition modes
- Android operating system with a six-core Cortex-A72 processor
- Optional two-channel, 100 MHz function generator with Bode Plot support
- 50 Ω and 1 MΩ input-impedance options
- LAN, USB Host, USB Device and HDMI connectivity
- CAT I safety rating and ±8 kV ESD protection
The MHO900 Series provides advanced triggering, acquisition and analysis functions for detecting rare events and examining complex signals. It is suitable for industrial inspection, laboratory research, electronic manufacturing, automotive testing and academic applications.
Available Models: MHO934 | MHO954 | MHO984
Explore more laboratory equipment and RIGOL test instruments on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol MHO984 features an 800 MHz analog bandwidth, allowing for detailed waveform analysis.
This oscilloscope supports 4 analog channels and 16 digital channels for versatile mixed-signal analysis.
The Rigol MHO984 has a maximum real-time sampling rate of 4 GSa/s, enabling it to capture high-frequency signals accurately.
The oscilloscope features a 7-inch capacitive multi-touch HD display with a resolution of 1024 × 600 for clear data visualization.
The MHO984 offers multiple connectivity options including USB Host/Device, LAN, and HDMI for data transfer and control.
Yes, there is an optional 2-channel 100 MHz function/arbitrary waveform generator available for the Rigol MHO984.
The Rigol MHO984 weighs 1.6 kg and has dimensions of 265.35 x 161.75 x 77.38 mm, making it portable for various applications.
The oscilloscope includes robust ESD protection rated at ±8 kV and complies with CAT I safety ratings for safe operation.
The Rigol MHO984 comes with 32 GB of internal storage for ample waveform data storage and analysis.
The calibration interval for the Rigol MHO984 is 18 months, ensuring reliable performance over time.
