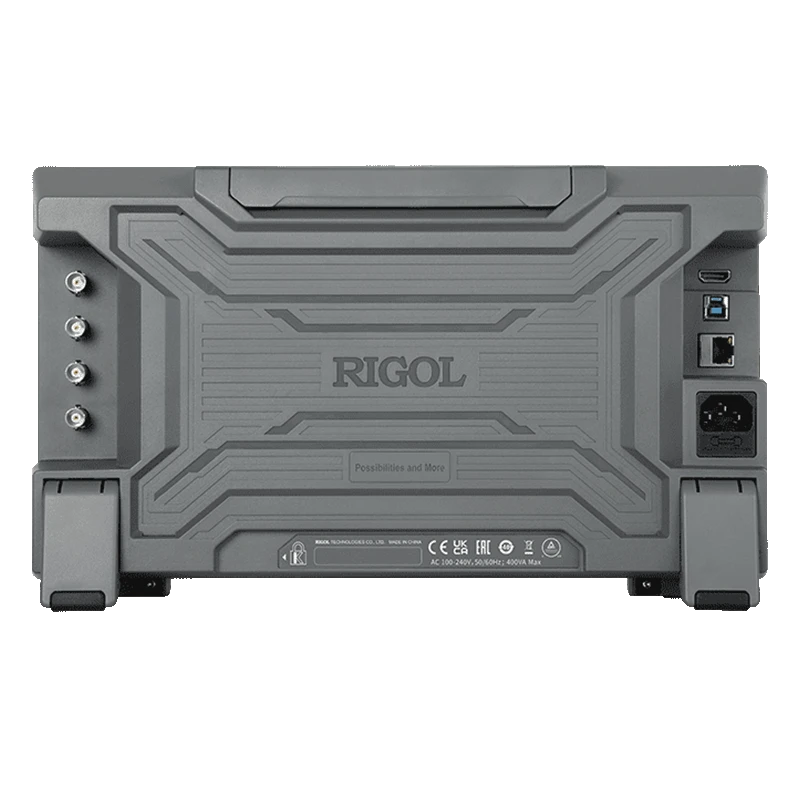

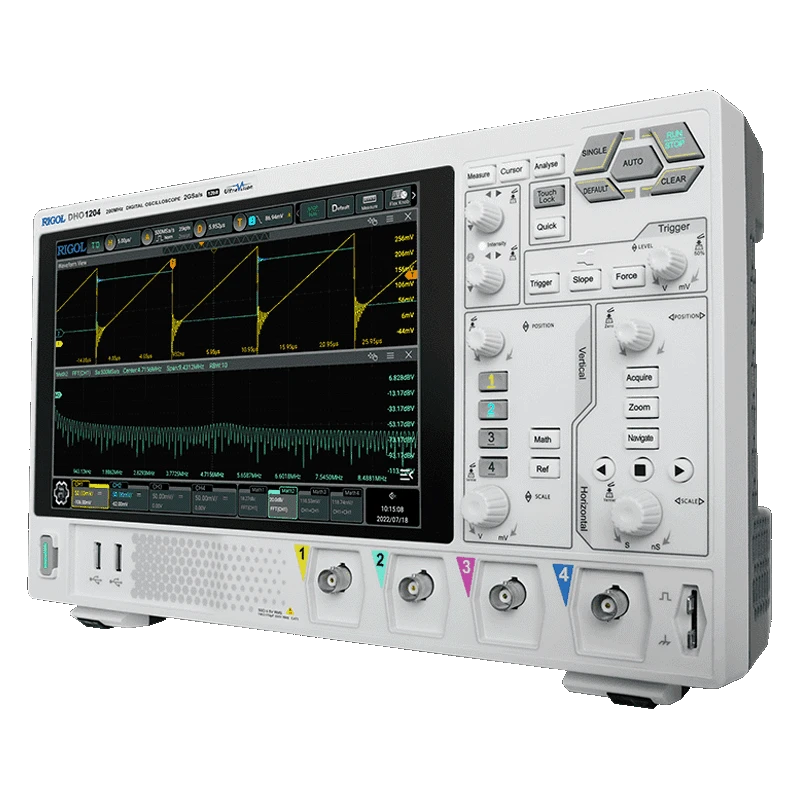

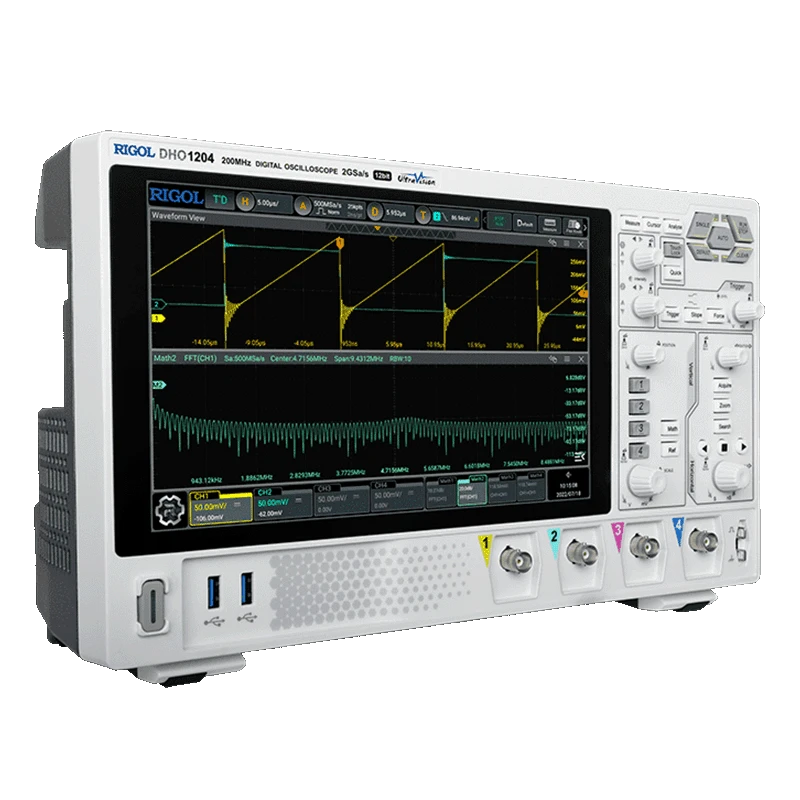

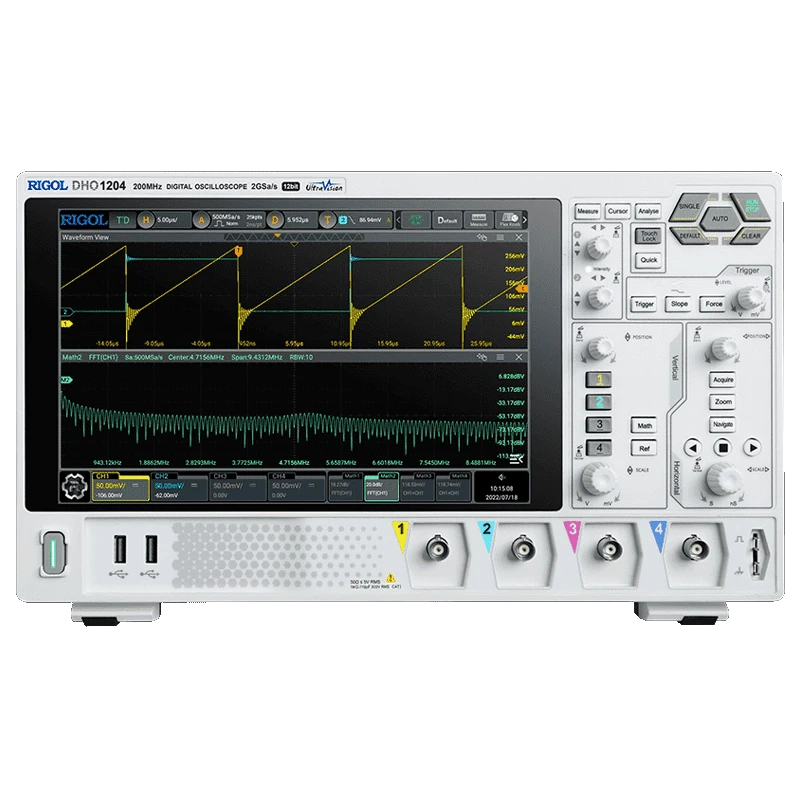

RIGOL High-Resolution Digital Oscilloscope DHO1000 Series

Rigol DHO1000 Series High-Resolution Digital Oscilloscope, 12-Bit, up to 200 MHz Bandwidth, 2 GSa/s Real-Time Sampling, 10.1-inch Touchscreen. Designed for mainstream design, debugging, and advanced laboratory measurements, the DHO1000 Series delivers true 12-bit resolution and ultra-low noise performance on up to 4 channels. This platform supports deep memory up to 100 Mpts, 1500000 wfms/s capture rate, and hardware real-time waveform recording up to 500,000 frames, delivering unprecedented clarity and detail for embedded system analysis, power electronics, automotive, and industrial electronics.

• True 12-bit vertical resolution for high-precision waveform capture.
• Supports bandwidths up to 200 MHz and a maximum real-time sampling rate of 2 GSa/s.
• Offers up to 4 analog channels and external trigger input for versatile signal analysis.
• Ultra-low noise front end enhances accurate small-signal measurements.
• Equipped with a 10.1-inch HD capacitive touch display and intuitive UI.
• Standard serial trigger and decode for embedded and power electronics.
• Memory depth up to 100 Mpts with fast UltraAcquire mode (1,500,000 wfms/s).
• Vertical sensitivity down to 500 µV/div for detailed signal visualization.
• Integrated spectrum analyzer (FFT), digital voltmeter, and comprehensive math functions.
• Standard USB, LAN, and HDMI interfaces for connectivity and remote control.

Additional core technical features include advanced trigger/search/navigation, mask-based pass/fail hardware testing, and support for events list and segment navigation. Package includes main unit, probes, power cable, USB cable, and user manual. Typical applications: embedded system design, power electronics, automotive/industrial electronics, education, and R&D labs.
