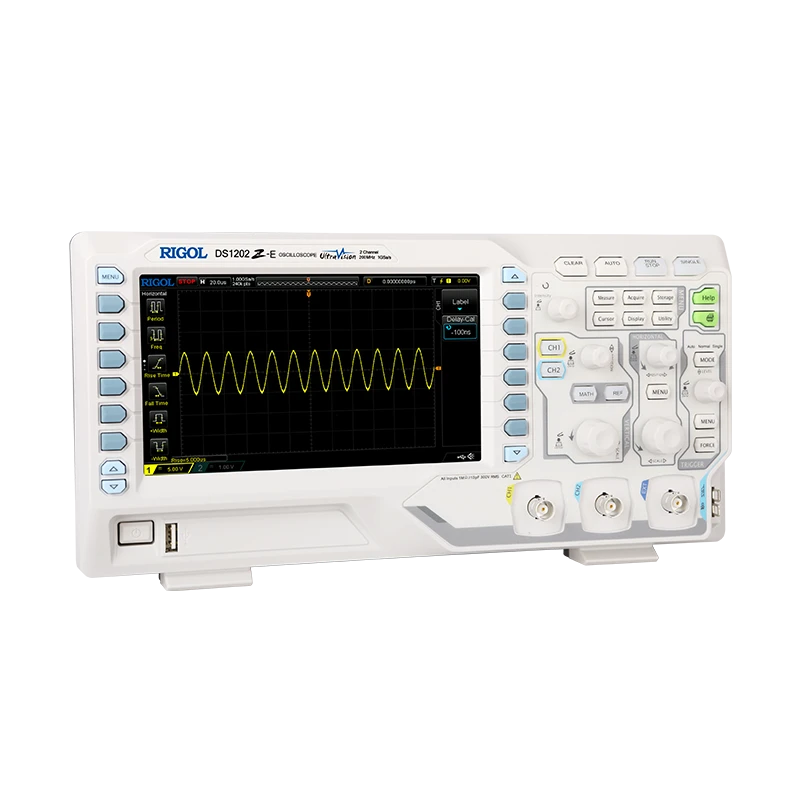

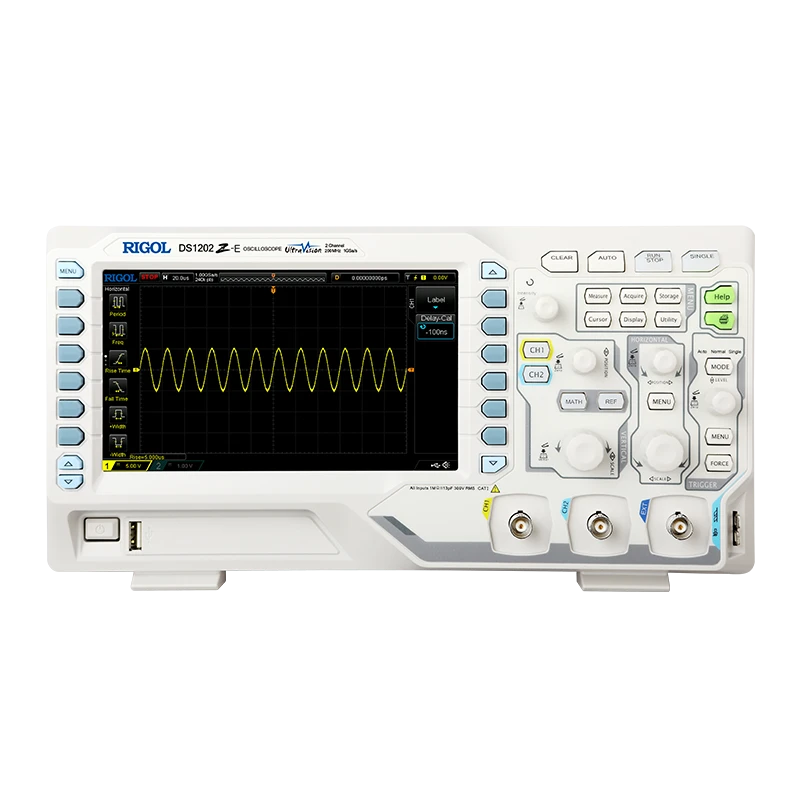

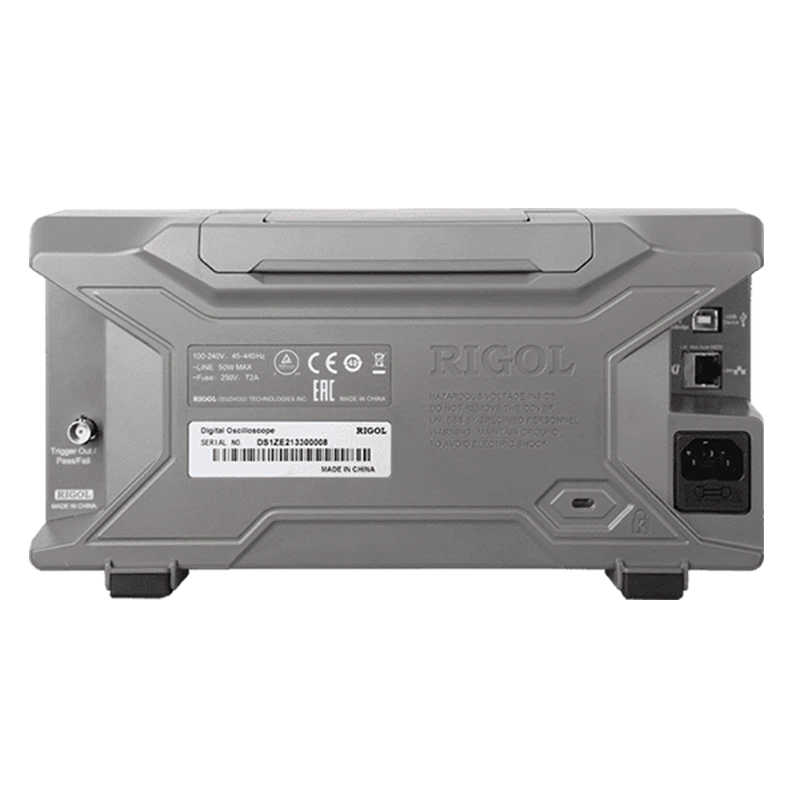

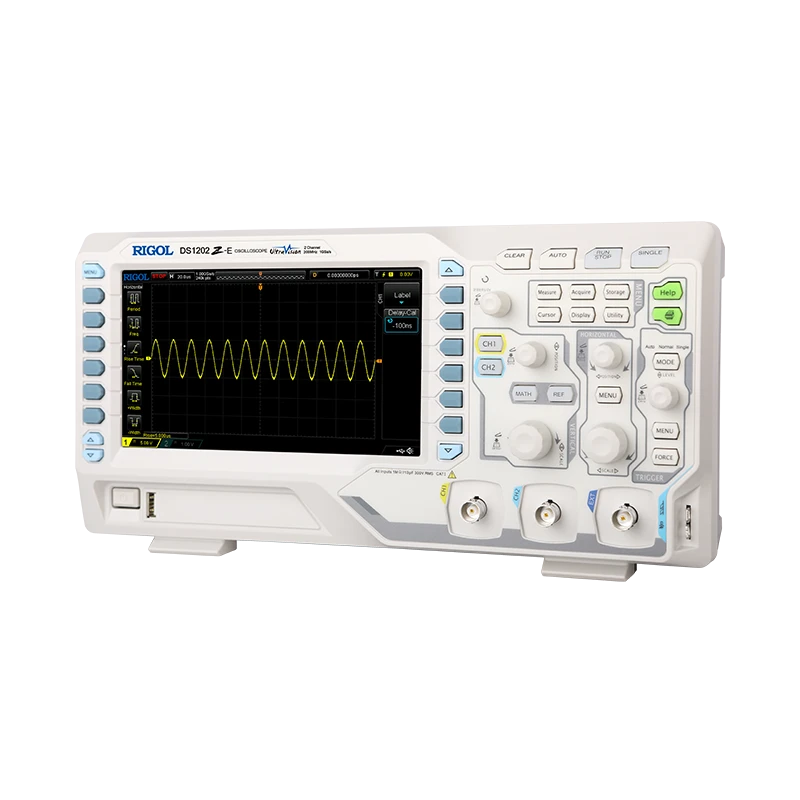

RIGOL DS1000Z-E Series Digital Oscilloscope | DS1102Z-E | DS1202Z-E
Model
Analog Bandwidth
Analog Channels
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | Max. 50 W |
| Display | 7-inch TFT LCD |
| Brand | Rigol |
| Power Supply | 100–240 V AC, 45–440 Hz |
| Operating Temperature | 0 °C to +50 °C |
| Calibration Interval | 18 months |
| Connectivity | USB Host, USB Device, LAN (LXI), AUX Output |
| Model | DS1000Z-E |
| Weight | 2.9 Kg |
| Bandwidth | Up to 200 MHz |
| Series | DS1000Z-E |
| Display Resolution | 800 × 480 pixels |
| Input Impedance | 1 MΩ ±1% || 15 pF ±3 pF |
| Waveform Capture Rate | Up to 30000 wfms/s |
| Vertical Resolution | 8 bits |
| Maximum Input Voltage | CAT I 300 Vrms, CAT II 100 Vrms |
| Memory Depth | Up to 24 Mpts |
| Real-Time Sampling Rate | 1 GSa/s (single-channel) |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Product Condition | New |
| MPN | DS1000Z-E |
| Analog Channels | 2 |
| Sample Rate (Dual Channel) | 500 MSa/s |
| Waveform Recording & Playback | Up to 60000 frames |
| Dimensions (W×H×D) | 313.1 × 160.8 × 122.4 mm |
Key Features
Rigol DS1000Z-E Series digital oscilloscope provides high-performance measurements for electronics, education, and validation tasks.
- Offers up to 200 MHz bandwidth and two analog input channels for versatile testing applications.
- Supports real-time sampling rates up to 1 GSa/s for precise signal capture.
- Features standard memory depth up to 24 Mpts for detailed waveform analysis.
- Delivers a fast waveform capture rate up to 30000 wfms/s for rapid event tracking.
- Provides full hardware-based waveform recording and playback up to 60000 frames.
- Includes a 7-inch TFT LCD with 800 × 480 resolution for clear data display.
- Equipped with serial bus trigger/decoding for RS232/UART, I2C, and SPI protocols.
- Features a compact, robust design suitable for laboratory and industrial benchtops.
- Connectivity options include USB Host, USB Device, and LAN (LXI) interfaces.
Product Description
The RIGOL DS1000Z-E Series Digital Oscilloscope, available in DS1102Z-E and DS1202Z-E models, is a cost-effective, high-performance benchtop oscilloscope designed for electronics development, circuit debugging, product validation, and educational laboratory applications. Built on RIGOL’s UltraVision technology, the series combines fast waveform acquisition, deep memory, advanced triggering, and comprehensive measurement tools for accurate signal analysis.
The DS1000Z-E Series provides two analog input channels, one dedicated external trigger input, and model-specific bandwidth options up to 200 MHz. Its real-time sampling rate reaches up to 1 GSa/s in single-channel operation, enabling accurate capture of fast signal transitions, transient events, and complex waveform behaviour.
With memory depth up to 24 Mpts and a waveform capture rate up to 30,000 waveforms per second, the oscilloscope supports long-duration signal recording without losing important waveform details. Hardware-based waveform recording and playback of up to 60,000 frames helps users detect intermittent faults, glitches, timing errors, and other infrequent signal events.
- Bandwidth options up to 200 MHz
- Two analog input channels
- One dedicated external trigger input
- Real-time sampling rate up to 1 GSa/s
- Memory depth up to 24 Mpts
- Waveform capture rate up to 30,000 waveforms per second
- Hardware waveform recording and playback up to 60,000 frames
- Edge, pulse, runt, window, slope, and other triggering modes
- Up to 41 automatic waveform measurements
- Automatic and cursor-based measurement functions
- FFT, mathematical, histogram, and statistical analysis
- Serial-bus decoding for Parallel, RS232/UART, I²C, and SPI signals
- Seven-inch WVGA TFT LCD for clear waveform visualisation
- USB Host, USB Device, LAN, LXI, and AUX connectivity
- Three-year warranty excluding probes and accessories
- Recommended calibration interval of 18 months
Advanced triggering and serial protocol decoding help engineers isolate complex events and troubleshoot communication errors in embedded and digital systems. FFT and mathematical analysis functions support time-domain and frequency-domain measurements, while automatic measurements and statistical tools simplify repetitive testing and waveform comparison.
The RIGOL DS1000Z-E Series Digital Oscilloscope is suitable for electronics R&D, embedded-system development, power-supply testing, circuit-board troubleshooting, product validation, equipment maintenance, engineering education, manufacturing support, and general-purpose laboratory signal analysis.
Available Models: DS1102Z-E | DS1202Z-E
Explore more RIGOL digital oscilloscopes and electronic test and measurement instruments in the Measuring & Testing Instruments category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DS1000Z-E oscilloscope offers up to 200 MHz bandwidth, allowing it to capture fast transient events effectively.
The DS1000Z-E features 2 analog input channels, providing versatility for various testing applications.
The oscilloscope supports a real-time sampling rate of up to 1 GSa/s for single-channel use.
The DS1000Z-E has a standard memory depth of up to 24 Mpts per channel for detailed waveform analysis.
Yes, it features hardware-based waveform recording and playback capabilities, supporting up to 60000 frames.
The oscilloscope is equipped with a 7-inch TFT LCD display with a resolution of 800 × 480 pixels for clear data visualization.
The DS1000Z-E offers multiple connectivity options including USB Host, USB Device, and LAN (LXI) interfaces.
The operating temperature range for the DS1000Z-E is from 0 °C to +50 °C.
The oscilloscope weighs approximately 2.9 kg, making it compact and suitable for laboratory and industrial use.
The Rigol DS1000Z-E comes with a 3-year warranty, which excludes probes and accessories.
