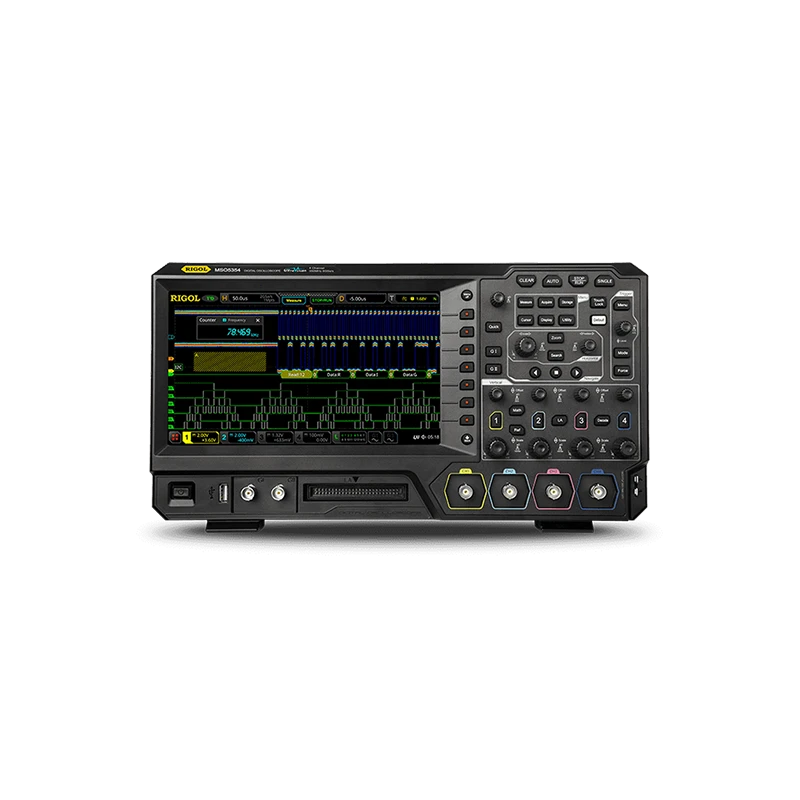

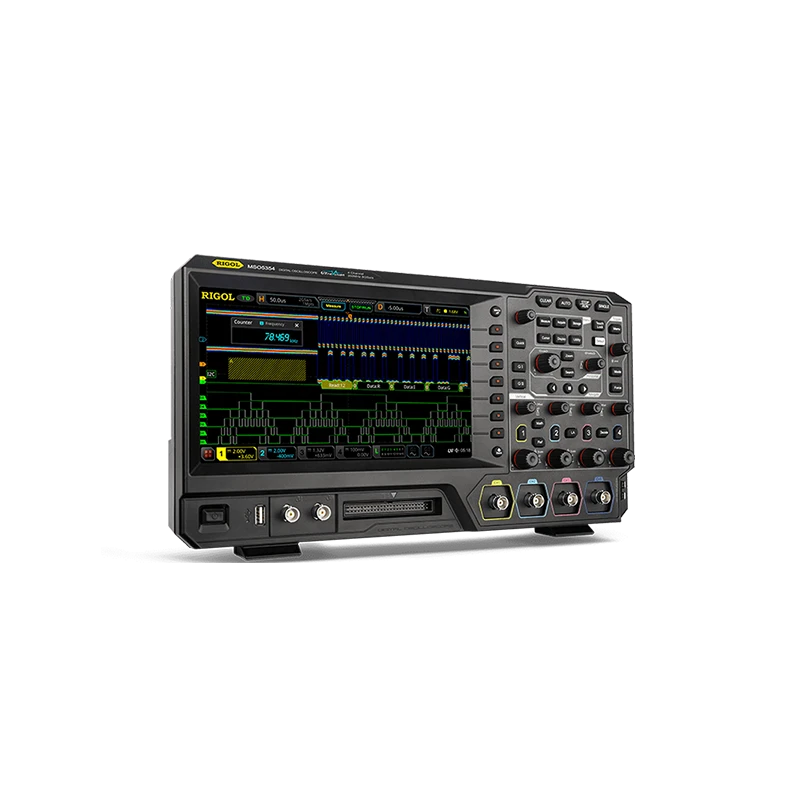

RIGOL MSO5000 Series Digital Oscilloscope | MSO5072 | MSO5074 | MSO5102 | MSO5104 | MSO5204 | MSO5354

The RIGOL MSO5000 Series Digital Oscilloscope, available in MSO5072, MSO5074, MSO5102, MSO5104, MSO5204, and MSO5354 models, is a high-performance mixed-signal oscilloscope designed for advanced electronics testing, embedded-system debugging, and power-electronics analysis. Suitable for professional and academic laboratories, manufacturing facilities, and R&D environments, the series offers bandwidth options from 70 MHz to 350 MHz with two- and four-channel configurations.

The RIGOL MSO5000 Series combines analog and digital signal analysis within a single testing platform. It provides up to four analog input channels and 16 digital channels, enabling engineers to examine timing relationships between analog waveforms and digital signals. Real-time sampling rates up to 8 GSa/s support accurate capture of high-speed signal transitions and complex waveform behaviour.

With memory depth up to 200 Mpts, the oscilloscope can record long waveform sequences without losing important signal details. Advanced triggering, waveform search, navigation, and hardware measurement functions help users isolate rare events, timing errors, glitches, communication faults, and other difficult-to-detect problems.

• Bandwidth options from 70 MHz to 350 MHz
• Two- and four-channel analog configurations
• 16 digital channels for mixed-signal analysis
• Real-time sampling rate up to 8 GSa/s
• Memory depth up to 200 Mpts
• More than 41 automatic waveform measurements
• Full-memory hardware-based measurement processing
• Advanced triggering, waveform search, and navigation tools
• Hardware pass/fail testing for production and quality control
• Real-time waveform recording up to 450,000 frames
• Nine-inch capacitive touchscreen with 1024 × 600 resolution
• Colour persistence and advanced waveform display functions
• USB Host, USB Device, LAN, and HDMI connectivity
• Web Control, SCPI, USBTMC, and LXI-C support
• Optional rack-mount kit for professional test environments
• Three-year mainframe warranty
• Recommended calibration interval of 18 months

The MSO5000 Series combines up to seven instruments in one platform, including a digital oscilloscope, logic analyser, FFT spectrum analyser, optional waveform generator, digital voltmeter, protocol analyser, and frequency counter. This integrated design helps reduce the number of separate instruments required for circuit development, troubleshooting, and validation.

Its nine-inch capacitive touchscreen provides clear waveform visualisation and convenient access to measurement, triggering, decoding, and analysis functions. Remote-control capabilities allow the instrument to be integrated into automated testing systems, laboratory networks, manufacturing lines, and remotely managed measurement setups.

Typical applications include embedded microcontroller development, mixed-signal circuit analysis, power electronics and SMPS validation, automotive-system testing, industrial automation, communication-interface debugging, electronics manufacturing, quality assurance, education, and laboratory research.

Available Models: MSO5072 | MSO5074 | MSO5102 | MSO5104 | MSO5204 | MSO5354
