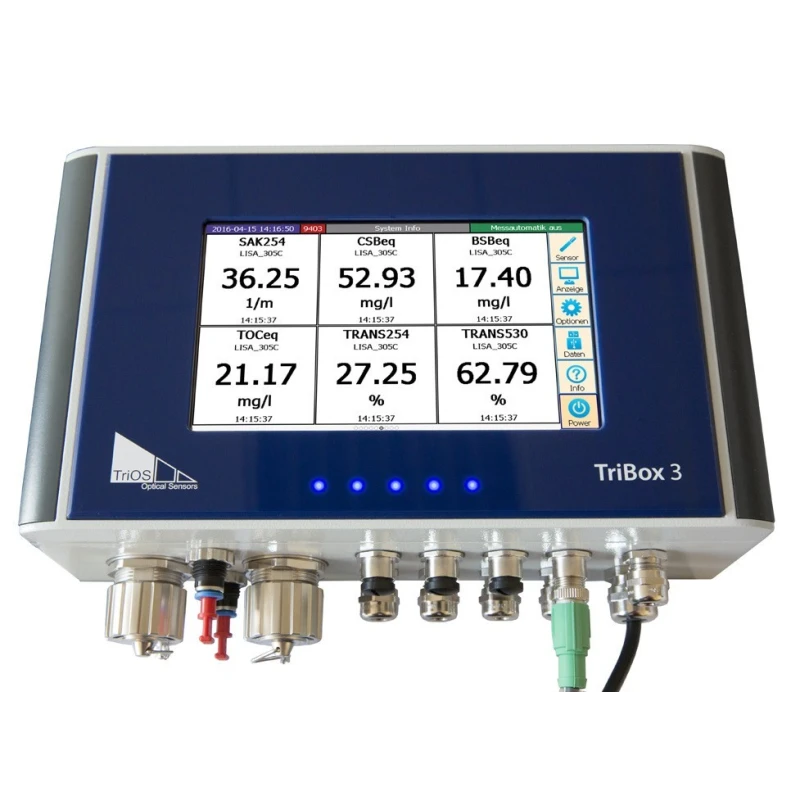

Oil in Water Controller 4 Channel
Specifications
| Power Consumption | Type 6 W| max 50 W |
|---|---|
| Connection | 4 x M12 industrial connectors for TriOS sensors |
| Standard | RS-232| RS-485 |
| Voltage supply | 85-265 VAC| 50-60 Hz| 10-26 VDC |
| Protocol Modbus- | RTU| TriOS |
Key Features
- Integrated data logger with Service logbook WiFi for communication via web browser USB interface TCP/IP interface Modbus RTU server
- Low-cost alternative to analog measuring points •
Product Description
TriBox3 is a measurement and control system for all Trios sensors.The device provides 4 sensor channels with selectable RS-232or RS-485 function. In addition to Modbus-RTU, various otherprotocols are available. A built-in valve allows compressed aircleaning of the sensors. In addition, the TriBox3 offers networkTCP/IP and WIFI, USB port, and 6 analog outputs (4...20 mA).An integrated relay can be used to trigger alarms or to controlexternal devices. Low power consumption, a robust Aluminum housing and multiple interfaces makes it suitable for all applications in the areas of environmental monitoring, drinkingwater and waste water treatment plants, and many other areas.TriBox3 is a new, innovative measuring and control system forall Trios sensors.4 ChannelIntegrated Data Logger100-240 VAC, 50 / 60 Hz, 10-15 VDCGraphic Color TFT Touch ScreenRS232/RS485 Modbus CommunicationIn-built SOV for Air Cleaning
- Open Modbus RTU communication
- For all digital TriOS sensors
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power consumption is rated at 6 W, with a maximum of 50 W.
It operates on a voltage supply range of 85-265 VAC at 50-60 Hz, or 10-26 VDC.
It features 4 sensor channels that can be configured for different communication functions.
Yes, it includes an integrated data logger along with a service logbook.
The unit is housed in a robust aluminum casing.
Yes, it has an integrated relay that can be used to trigger alarms or control external devices.
It provides 6 analog outputs with a range of 4-20 mA.
Specific dimensions and weight details are not provided in the available data.
It is suitable for environmental monitoring, drinking water, and wastewater treatment plants.
The operating frequency is not explicitly mentioned in the provided data.
