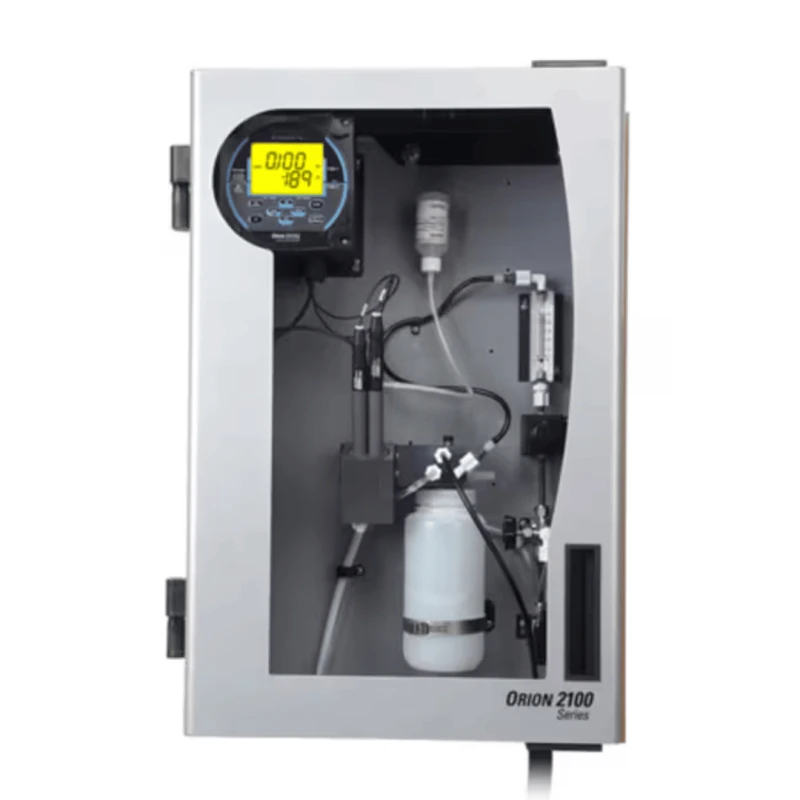

Orion 2117LL Low-Level Chloride Analyzer, Potentiometric, 2117LL230
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Chloride analyzer with protective enclosure, chloride electrode (100025), reference electrode (100057), ATC probe (2100TP), recirculating sample cooler for 230 VAC, CD user guide and options kit |
| Accuracy | 10% of reading or ±5 ppb, whichever is greater, within ±5°C of calibration temperature |
| Temperature Accuracy | ±0.5 °C |
| Measurement Method | Potentiometric |
| Display | Custom backlit LCD |
| Flow Rate | 40 mL/min |
| Temperature Resolution | 0.1 °C |
| Temperature Measurement Range | -10 to 120 °C |
| Response time | 90% of final reading within 2 minutes |
| Storage Temperature | -20 to 60 °C |
| Model | 2117LL230 |
| Power Input | 85-132 or 170-264 VAC |
| Case Material | Valox 364 |
| Analog Output | Galvanically isolated, 0-20 mA or 4-20 mA |
| Ingress Protection | IP66 & NEMA 4X |
| Units Displayed | ppb, ppm (auto ranging) |
| Reagent | Formic acid |
| mV Measurement Range | ±1999.9 mV |
| Product Condition | New |
| MPN | 2117LL230 |
| Resolution (mV) | 0.1 mV |
| Environmental Operating Temperature | 5 to 45 °C |
| Measurement Range (Chloride) | 5 ppb to 10 ppm |
| Resolution (Concentration) | 2, 3, or 4 digits |
| Relative Accuracy (mV) | ± (0.5 mV + 0.1%) |
| Continuous Temperature Readings | Yes |
| Dimensions (Electronics) | 144 × 144 × 187 mm |
| Dimensions (Entire System) | 65 × 45 × 27 cm |
| Number of Analog Outputs | 2 (one for chloride, one for temperature) |
| Alarm Outputs | 3 relays |
| Maximum Relay Load | 250 VAC, 5 A, 30 VDC |
| Humidity (Operating & Storage) | 5% to 95%, non-condensing |
| Sample Inlet | 1/4" NPTF tube fitting |
| Sample Drain | 3/4" NPT male |
| Grab Sampler Supported | No |
Key Features
Orion 2117LL230 Low-Level Chloride Analyzer is a high-precision potentiometric instrument designed for continuous chloride ion monitoring in water and industrial applications, offering reliable low-level measurements with industrial-strength construction.
- Low-level chloride ion measurement from 5 ppb to 10 ppm for high sensitivity applications.
- High accuracy: 10% of reading or ±5 ppb, whichever is greater, within ±5°C of calibration temperature.
- Fast response time of 90% of final reading within 2 minutes, function of flow.
- Potentiometric measurement method and robust Valox 364 case material with IP66 & NEMA 4X rating.
- Custom backlit LCD with temperature, concentration, mV display, error codes and menu-driven prompts.
- Equipped with ATC probe, chloride and reference electrodes, recirculating sample cooler, and programmable alarms.
- Supports continuous temperature readings from -10°C to 120°C with 0.1°C resolution and ±0.5°C accuracy.
- Packed with analog outputs (0-20 mA, 4-20 mA), alarm relays, battery backup, and expansion bus.
Product Description
The Orion 2117LL230 Low-Level Chloride Analyzer is a high-performance laboratory and industrial instrument, engineered for precise and reliable measurement of chloride concentration in water across an ultra-low range of 5 ppb to 10 ppm. This potentiometric analyzer features a rugged Valox 364 protective enclosure with IP66 & NEMA 4X ratings, ensuring durability even in demanding environments.
With a sensitive chloride-specific ion measurement, it delivers fast and accurate results—10% of reading or ±5 ppb, within ±5°C of calibration temperature. The analyzer supports a 90% response time within 2 minutes and utilizes auto-ranging display with units in ppb or ppm. Its package includes the main analyzer, chloride electrode (100025), reference electrode (100057), ATC temperature probe (2100TP), recirculating sample cooler for 230 VAC operation, a user guide, and options kit.
- Low-level chloride detection from 5 ppb to 10 ppm, designed for critical quality monitoring in water treatment, energy, and industrial process applications.
- Potentiometric technology for stable and dependable measurements.
- Ambient operating temperature range from 5°C to 45°C, with storage up to 60°C and relative humidity up to 95% non-condensing.
- High visibility custom LCD contributes temperature, concentration, mV, and error diagnostics for user-friendly operation.
- Programmable analog outputs, programmable alarms, battery backup, non-volatile memory, and expansion options enable long-term use and integration.
- Supports both 85-132 and 170-264 VAC power input with galvanically isolated outputs for system flexibility and safety.
- Complete component kit with protective enclosure ensures ease of installation and long operational life.
This chloride analyzer finds vital use in power plants, municipal water treatment, industrial water monitoring, boiler and steam cycle quality control, and various process industries where continuous, trace-level chloride determination is essential. Experience leading analytic performance and robust reliability with the Orion 2117LL Series on EnvMart.
Explore more laboratory water analyzers and potentiometric instruments in the full EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Orion 2117LL230 Low-Level Chloride Analyzer measures chloride concentrations from 5 ppb to 10 ppm, making it suitable for high sensitivity applications.
The analyzer has an accuracy of 10% of reading or ±5 ppb, whichever is greater, within ±5°C of calibration temperature.
The Orion 2117LL230 provides a fast response time, achieving 90% of the final reading within 2 minutes, depending on flow conditions.
The analyzer is equipped with a custom backlit LCD that displays temperature, concentration, mV readings, error codes, and menu-driven prompts for user convenience.
Yes, it features an IP66 and NEMA 4X rated enclosure, providing robust protection against dust and water, making it suitable for demanding environments.
The Orion 2117LL230 supports a power input range of 85-132 VAC or 170-264 VAC, offering flexibility for different electrical systems.
The package includes the chloride analyzer with protective enclosure, chloride electrode, reference electrode, ATC temperature probe, recirculating sample cooler, user guide, and options kit.
The Orion 2117LL230 operates within an ambient temperature range of 5°C to 45°C, with a storage temperature capability of up to 60°C.
Yes, the Orion 2117LL230 supports continuous temperature readings from -10°C to 120°C with a resolution of 0.1°C and an accuracy of ±0.5°C.
To inquire or purchase the Orion 2117LL230, please visit our website or contact our sales team for assistance with your order.
