Lutron RGB-1002 Color Analyzer
Specifications
| Operating Humidity | Less than 80% RH |
|---|---|
| Brand | LUTRON |
| Power Supply | DC 9V battery or 9V adapter (optional) |
| Type | Color Analyzer |
| Applications | Color checking of textiles / paper / leather / painting Materials / quality control / supplier conformity checks / color sample comparison / statistical evaluation / CRT/LCD monitor/light lamp reference checks |
| Operating Temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Spectral range | 400 nm To 700 nm |
| Light Source | Two White LED lamps |
| Calibration | Self-calibration with included White calibration card |
| Model | RGB-1002 |
| Weight | 478 g (main instrument and sensor probe) |
| Optional Accessories | AC to DC 9V adapter / RS232 cable (UPCB-02) / USB cable (USB-01) / data acquisition software (SW-U801-WIN) |
| Measuring Principle | Non-lighting samples - reflected light analysis | Lighting samples - direct light analysis |
| Buttons | OP / CAL / REL / RGB/HSL / Light ON/ofF |
| Power off | Auto (3 minutes) or manual |
| Computer Interface | RS232 PC serial interface |
| Power Current | Standby - Approx. DC 6.3 mA / Measurement - Approx. DC 32 mA (2 sec.) |
| Accessories Included | Instruction manual / sensor probe (RGB-1002P) / White color calibration card / carrying case (CA-06) |
| Dimensions (Main Instrument) | 203 x 76 x 38 mm |
| Dimensions (Sensor Probe) | 160 x 92 x 45 mm |
| Measurement Geometry | 45°/0° - circular illumination at 45° / measurement at 0° |
| Color Sensors | Red / Green / Blue photo transistors |
| Measurement Values | RGB - R (Red) 0-1023 / G (Green) 0-1023 / B (Blue) 0-1023 | HSL - Hue 0-1.000 / Saturation 0-1.000 / Luminance 0-1.000 |
| Accuracy/Repeatability | RGB - Less than 3 | HSL - Less than 0.01 (repeatability specified under same sample / 10 tests within 2 minutes / accuracy specified after calibration) |
| Measurement Sample Types | Non-lighting (textiles / paper / leather / etc.) / Lighting (CRT / LCD / LED / etc.) |
| Low Battery Indicator | Yes |
Key Features
- RGB and HSL color measurement
- 45°/0° measuring geometry
- Measures non-lighting and reference lighting samples
- RS232 computer interface
- Self-calibration function
Product Description

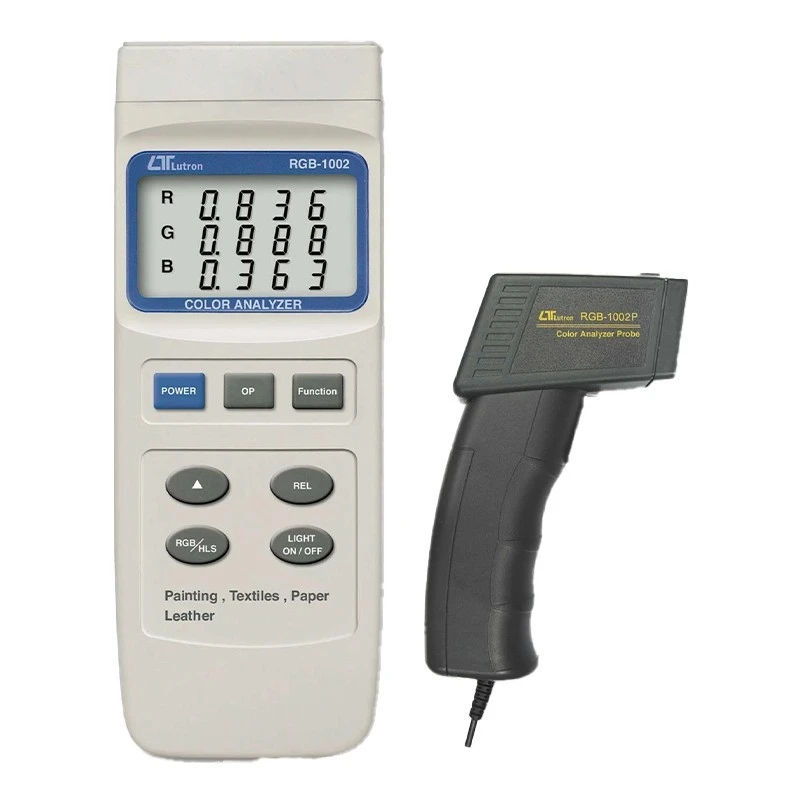

The Lutron RGB-1002 is a portable color analyzer that measures RGB and HSL values of both non-lighting and reference lighting samples. It features an external sensor probe with a 45°/0° measuring geometry and RS232 computer interface.
Available on EnvMart, these Water Analyzers are equipped with advanced multi-parameter technology to deliver accurate analysis of water quality, including pH, TDS, conductivity, and more. Lutron Water Analyzers are trusted for their precision, reliability, and ease of use, making them ideal for laboratories, wastewater treatment plants, and environmental monitoring.
