Oil in Water Analyzer For Hydrocarbons

Name: Oil in Water Analyzer For Hydrocarbons
Brand: Potence
SKU: AAKMD
Price: 1.05 USD
Availability: InStock



SKU AAKMD Category Water Analyzer Brand Potence Condition New

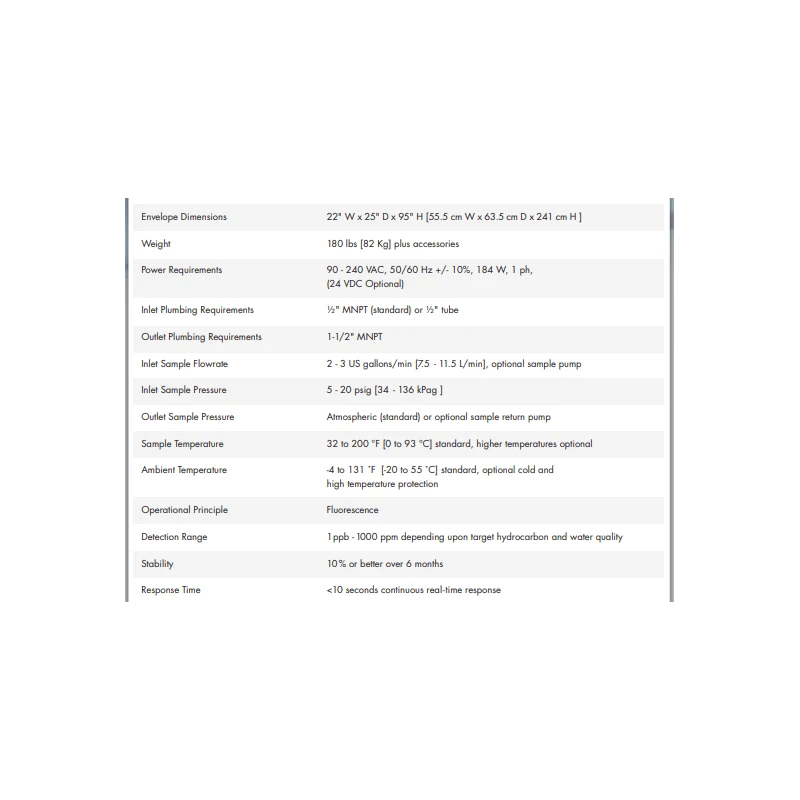

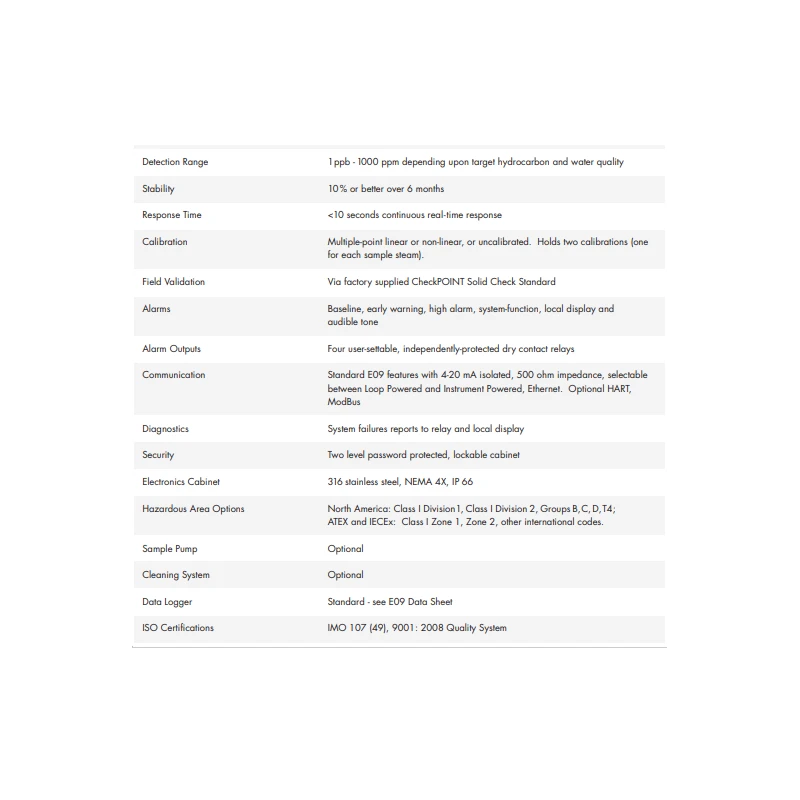

Specifications

Weight	180 lbs [82 Kg] plus accessories
Outlet Plumbing Requirements	1-1/2 MNPT
Operational Principle	Fluorescence
ISO Certifications	MO 107 (49)\| 9001 2008 Quality System

Key Features

Continuous on-line monitoring with the TD-4100 XD provides the most responsive feedback loop for measuring hydrocarbons in water. Continuous monitoring is reliable, effective, and recognized for its ability to improve process management for treating, discharging and detecting hydrocarbons in water. Compared to laboratory grab sample analysis, on-line monitoring provides cost effective, continuous, remote, operator unattended measurement of hydrocarbons in water.

Product Description

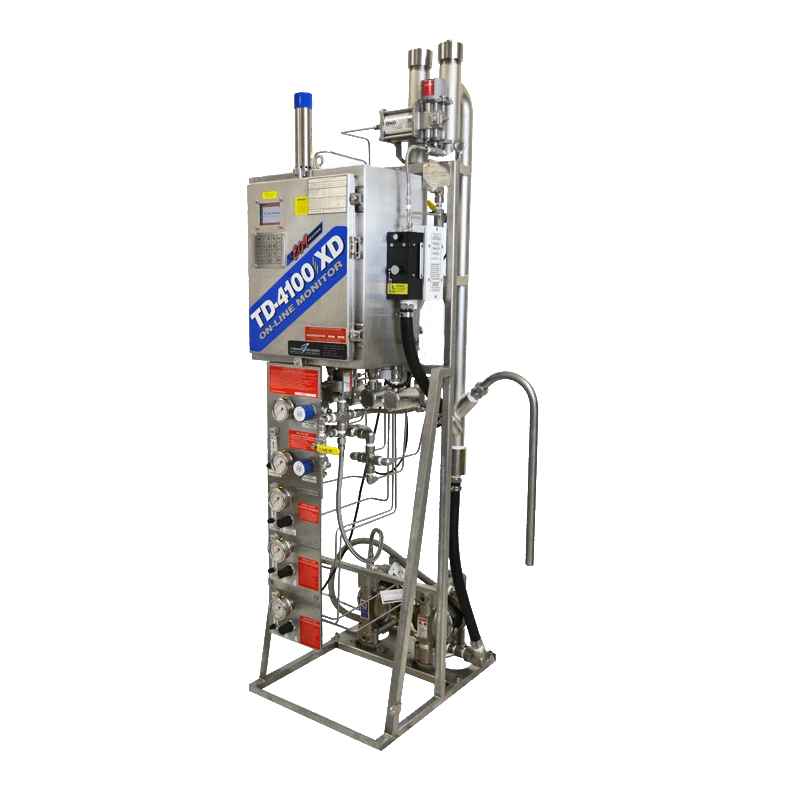

The TD-4100 XD is a ruggedized, continuous on-line fluorescencebased oil in water monitor. The XD is designed specifically foroffshore/onshore oil production, refining, petro-chemical, mining,and other industries that require robust on-line hardware for severeduty and hazardous area locations. The monitor is skid mountedand constructed of 316 stainless steel, including an external keypad,for operation in corrosive environments.The TD-4100 XD detects and measures crude oil, refined fuels, fueloils, lubricating or hydraulic fluids, and aromatic solvents in water.Detection limits range from low ppb (g/L) to high ppm (mg/L).Fluorescence1 ppb 1000 ppm dependent on Hydrocarbon and Water Quality32-200F [0-93C]Four user-settable, independently-protected dry contact relaysStandard E09 features with 4-200mA, selectable between Loop-Powered & Instrument Powered, Ethernet. Optional HART, Mod Bus

Oil in Produced Water ¦ Gas Condensate in Produced Wate
Cooling Water recycle, reuse, or discharge ¦ Steam Condensate Return to reuse or discharge ¦ Bilge Water ¦ Deck Drains ¦ Slops Tanks ¦ Mud Coolers ¦ Intake protection ¦ Membrane and advanced separation system intake protection ¦ Carbon bed breakthrough ¦ Applications Requiring IMO 107(49) Certification

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The operational principle of this model is fluorescence, which allows for the detection and measurement of hydrocarbons in water.

The detection limits for hydrocarbons in water range from low parts per billion (ppb) to high parts per million (ppm), specifically from 1 ppb to 1000 ppm, depending on the type of hydrocarbon and water quality.

The outlet plumbing requirements for the analyzer are 1-1/2 MNPT.

The weight of this unit is 180 lbs (82 kg) plus accessories.

Typical applications include monitoring oil in produced water, gas condensate, cooling water recycle, bilge water, and other processes requiring IMO 107(49) certification.

The analyzer is constructed from 316 stainless steel, which is suitable for operation in corrosive environments.

This model has ISO certifications for MO 107 (49) and 9001:2008 Quality System.

The analyzer can be powered in two ways: loop-powered or instrument powered, selectable between 4-20 mA outputs.

The operating temperature range for this model is 32°F to 200°F (0°C to 93°C).

Yes, it includes four user-settable, independently-protected dry contact relays for customizable operation.

The analyzer can detect and measure crude oil, refined fuels, fuel oils, lubricating or hydraulic fluids, and aromatic solvents in water.

Yes, it is designed specifically for offshore and onshore oil production, refining, petro-chemical, and mining industries, making it suitable for severe duty and hazardous area locations.
