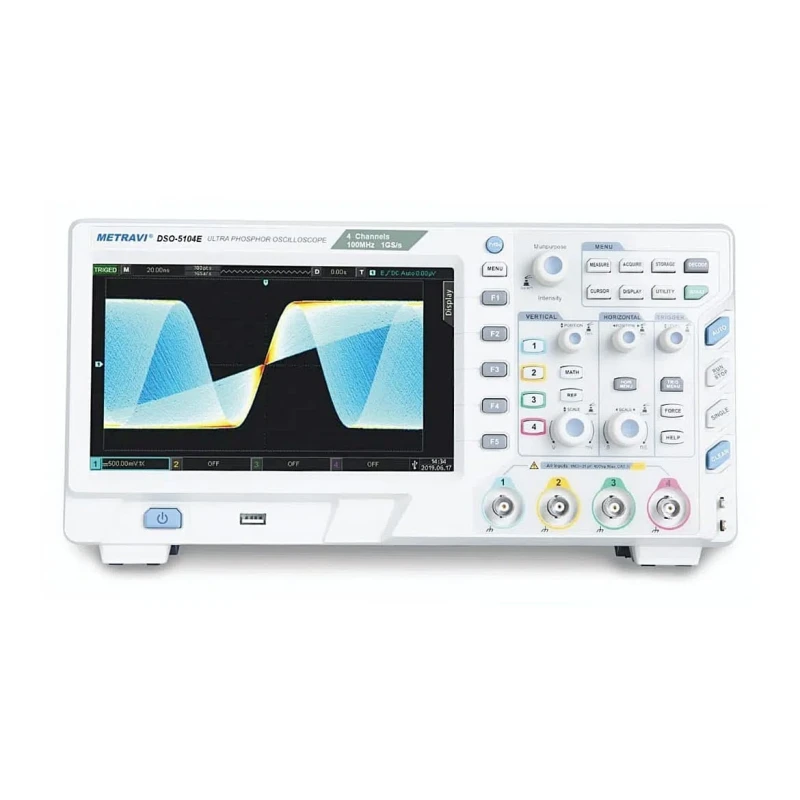

Metravi Four Channel Phosphor Digital Storage Oscilloscope DSO-5104E
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi DSO-5104E Digital Storage Oscilloscope |
| Brand | Metravi |
| Model | DSO-5104E |
| Bandwidth | 100MHz |
| Optional Interface | 25MHz Function/Arbitrary Waveform Generator |
| Sample Rate | 1GS/s |
| Channels | 4 |
| Waveform Capture Rate | 80000wfms/s |
| Standard Interface | USB-Host/USB-Device/LAN/AUX(Trig Out/Pass-Fail) |
| Measurements | 5 simultaneous |
| Input Coupling | (1MΩ±2%)∥(20pF±3pF) |
| DC Gain Accuracy | ±3% |
| Vertical Scale | 1mV/div–20V/div(1MΩ) |
| Time Base Scale | 5ns/div–50s/div |
| Frequency Counter | Hardware 6-bit counter(selectable channel) |
| Max Memory Depth | 56Mpts(single channel) |
| Waveform Record | 65000frames |
| Trigger | Edge/Pulse width/Runt/Window/N-edge/Delay/Timeout/Duration/Setup-hold/Slope/Video/Code |
| Bus Decode | RS-232/UART/I²C/SPI |
| Waveform Operation | A+B/A−B/A×B/NB/FFT/Logic operation/Editable advanced |
| Measurement Statistic | Average/Max/Min/Standard Deviation/Count |
Key Features
- Sample rate up to 1GS/s
- Channels 4
- Bandwidth 70MHz, 100MHz
- Memory Depth 56Mpts (single channel)
- Waveform Capture Rate up to 80,000 wfms/s
- 256 multi-level intensity grading display
- Up to 65,000 frames for waveform record, replay
- Increased trigger types: Edge, pulse width, runt, window, N-edge,
- delay, timeout, duration, setup/hold, slope, video, code
- Support serial bus trigger and decoding (RS-232, I2C, SPI included)
- 8 inches, TFT LCD, WVGA (800 x 480)
- Interface: USB Host, USB Device, LAN, AUX (Trig Out, Pass/Fail)
Product Description
The Metravi DSO-5104E is a 100 MHz, 4-channel phosphor oscilloscope engineered for professionals needing high waveform capture rates and real-time display performance. Featuring 1 GSa/s sampling, intensity grading, serial decoding, and FFT analysis, this device captures fast transients with high fidelity. Its 7-inch color screen ensures vibrant signal representation. It includes USB and LAN ports for connectivity, as well as extensive math and cursor functions. Ideal for automotive electronics, communications, and power system diagnostics where fast response and visual clarity are paramount.
Available on EnvMart, these Oscilloscopes provide detailed visualization of electrical signals, essential for diagnostics, troubleshooting, and design in electronics and engineering. Metravi Oscilloscopes stand out for their accuracy, intuitive interface, and robust performance—ideal for labs, R&D, and field applications alike.
